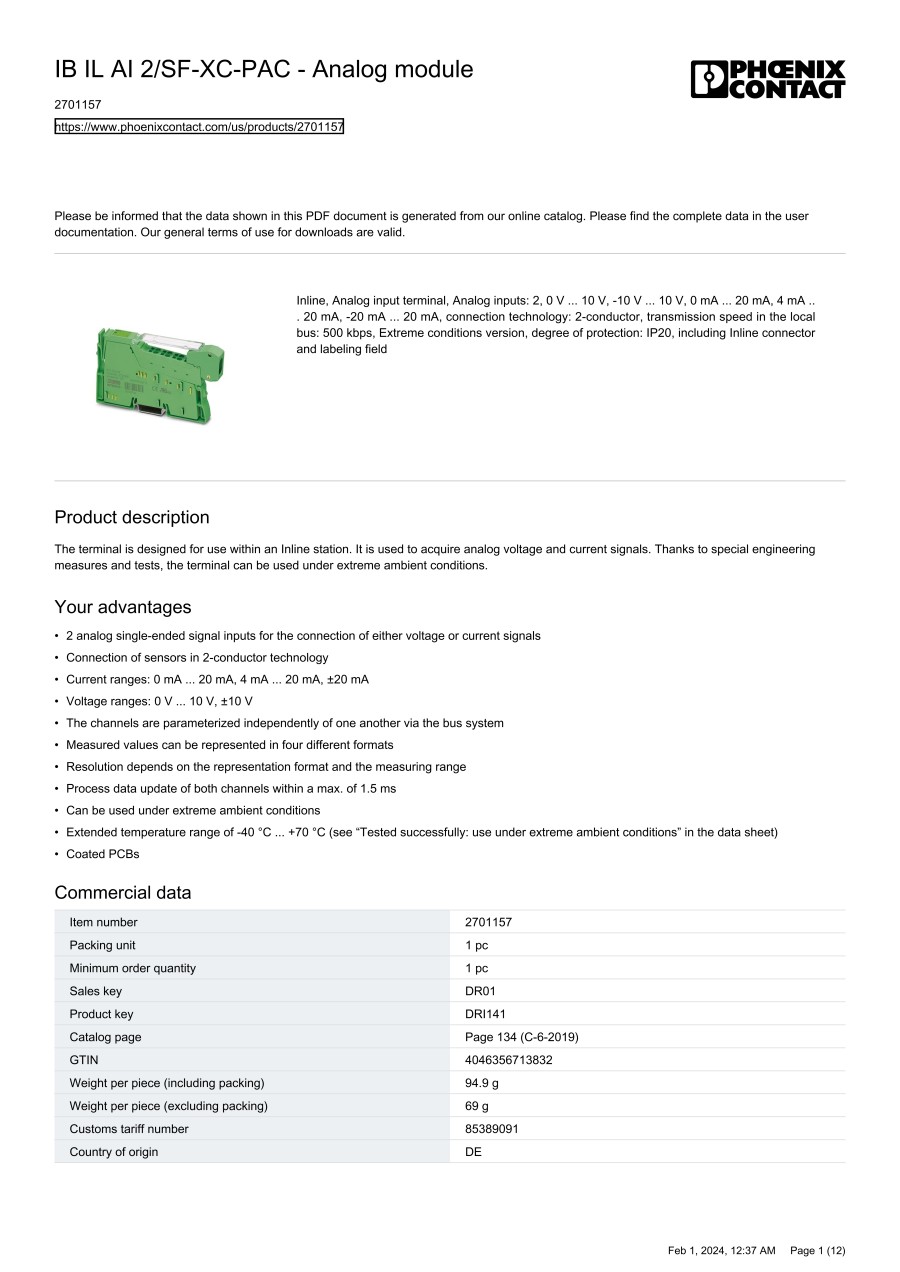

Inline terminal, Inline XC, Analog input terminal, IB IL
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Depth(mm) | 71.5 | Suitable for safety functions | false | Number of analogue outputs | 0 |
|---|---|---|---|---|---|
| Voltage type of supply voltage | DC | Supporting protocol for LON | false | Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 | Number of HW-interfaces RS-422 | 0 | Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 | Number of HW-interfaces USB | - | Number of HW-interfaces parallel | 0 |
| Supporting protocol for TCP/IP | false | Supporting protocol for ASI | false | Supporting protocol for PROFIBUS | false |
| Supporting protocol for CAN | false | Supporting protocol for INTERBUS | false | Supporting protocol for KNX | false |
| Supporting protocol for MODBUS | false | Supporting protocol for Data-Highway | false | Supporting protocol for DeviceNet | false |
| Supporting protocol for SUCONET | false | Supporting protocol for other bus systems | false | Input, current | true |
| Input, voltage | true | Input, resistor | false | Input, resistance thermometer | false |
| Input, thermocouple | false | Input signal, configurable | true | Output, current | false |
| Output, voltage | false | Output signal configurable | false | Resolution of the analogue inputs(Bit) | 16 |
| Resolution of the analogue outputs(Bit) | - | Type of electric connection | Other | Rail mounting possible | true |
| Explosion safety category for gas | - | Explosion safety category for dust | - | Fieldbus connection over separate bus coupler possible | true |
| System accessory | true | Appendant operation agent (Ex ia) | false | Appendant operation agent (Ex ib) | false |
| Degree of protection (IP) | IP20 | Supporting protocol for SERCOS | false | Supporting protocol for INTERBUS-Safety | false |
| Category according to EN 954-1 | - | Number of interfaces PROFINET | 0 | Number of HW-interfaces Wireless | 0 |
| Front build in possible | false | Rack-assembly possible | false | Wall mounting/direct mounting | false |
| Radio standard Bluetooth | - | Radio standard WLAN 802.11 | - | IO link master | false |
| Performance level acc. EN ISO 13849-1 | - | Supporting protocol for AS-Interface Safety at Work | false | Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for EtherNet/IP | false | Supporting protocol for Foundation Fieldbus | false | Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFINET IO | false | Supporting protocol for PROFIsafe | false | Supporting protocol for SafetyBUS p | false |
| Supply voltage AC 50 Hz(V) | 0|0 | Supply voltage AC 60 Hz(V) | 0|0 | Supply voltage DC(V) | 19.2|30 |
| Analogue inputs configurable | true | Analogue outputs configurable | false | Radio standard GPRS | - |
| Radio standard GSM | - | Radio standard UMTS | - | SIL according to IEC 61508 | - |
| Degree of protection (NEMA) | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
