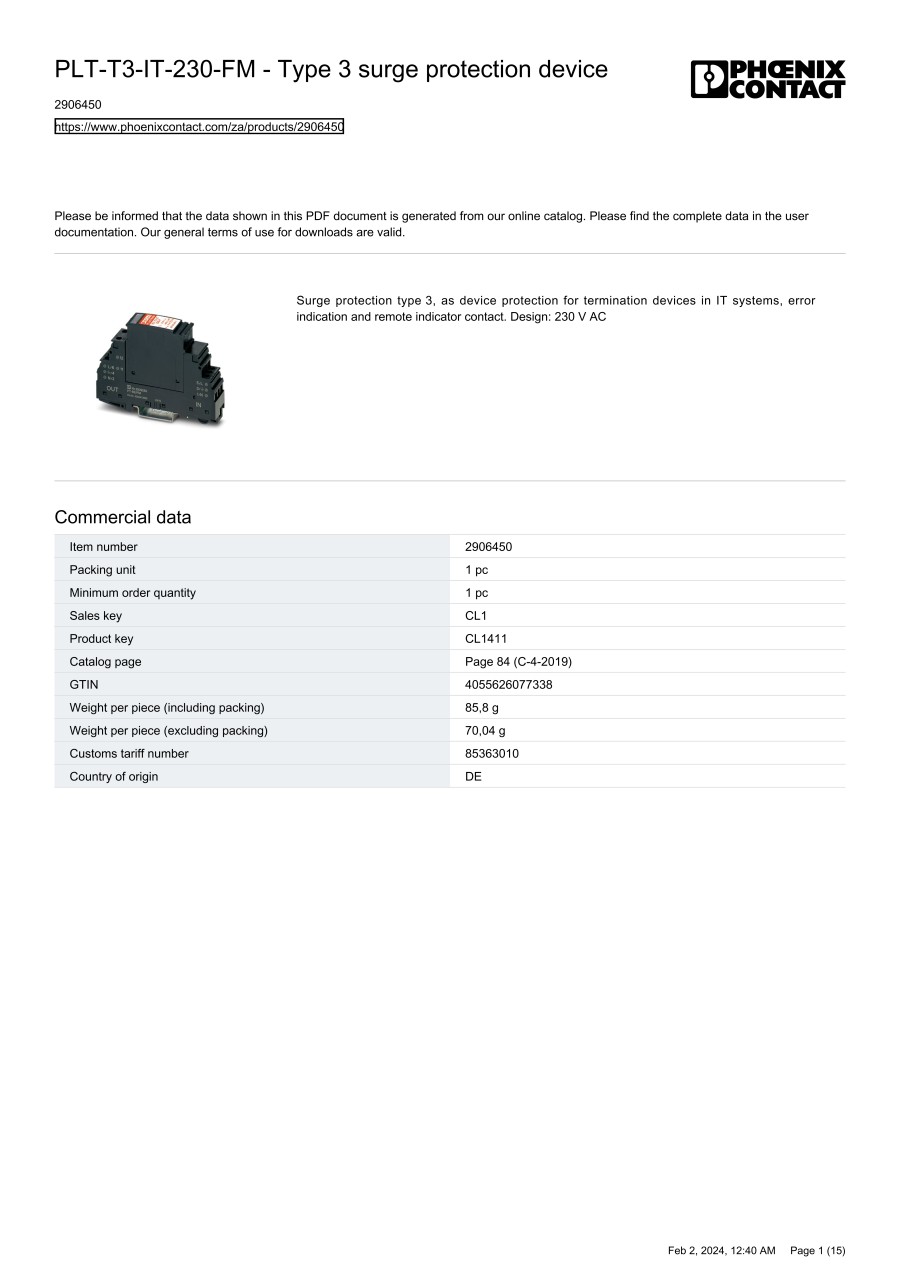

Type 3 surge protection device, Surge protection type 3, PLT-T3
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
2906450
Basic information
| Mounting method | - | With remote signalling contact | true | Number of poles | 2 |
|---|---|---|---|---|---|
| Voltage protection level(kV) | 1.2 | Max. continuous voltage AC(V) | 275 | Total discharge current (8/20) (L+N-PE)(kA) | 3 |
| Nominal discharge surge current (8/20) (L-N)(kA) | 3 | Nominal load current(A) | 16 | Nominal voltage AC(V) | 230 |
| Nominal voltage DC(V) | - | Category type 3 | true | Voltage protection level L-N(kV) | 1.2 |
| Voltage protection level L-PE/N-PE(kV) | 1.5 | Signalling at the device | Optic | Max. continuous voltage DC(V) | - |
| Degree of protection (IP) | - | With interference suppressor filter | false | Max. conductor cross section solid (solid, stranded)(mm²) | 4 |
| Max. conductor cross section flexible (fine-strand)(mm²) | 2.5 | Total discharge current (8/20) (L1+L2+L3+N-PE)(kA) | - |
This page is Type 3 surge protection device, Surge protection type 3, PLT-T3, part number 2906450.
You can find the detail information about specifications and dimensions on part number 2906450.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
