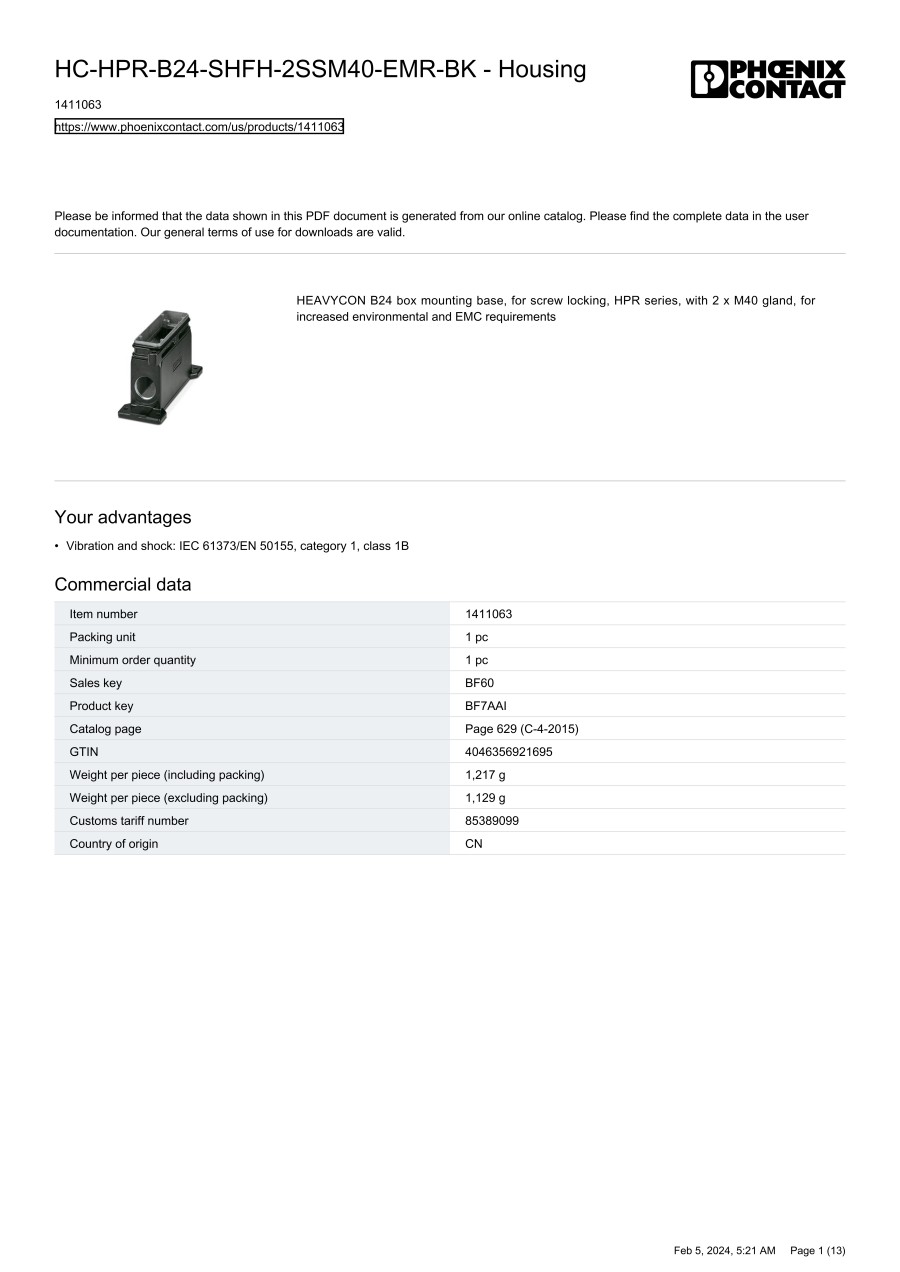

Housing, Box mounting base, HC-HPR-B24
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Width(mm) | 80 | UV resistant | false | Height(mm) | 216 |
|---|---|---|---|---|---|
| Depth(mm) | - | With hinged lid | false | Colour housing | - |
| Locking mechanism | Screw | Number of conduit inlets | - | With cable screw gland | false |
| EMC-version | true | Corrosion resistant | - | Material housing | Other |
| Coating housing | Powder coating | Operation temperature(°C) | -40|125 | Inflammability class of insulation material acc. with UL94 | Other |
| Impact strength | - | With distance piece | - | Number of openings | - |
| With sealing | - | Type of housing | Socket case | Degree of protection (IP), mounted | IP66 |
| Material adapter plate | - | Position cable feed | Sideways | Position of the shackle | None |
| Mounting method of the cable gland | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
