Configure

Colour
Rated voltage(V)
- 450
- 500
- 690
- 800
Length(mm)
- 21.6
- 28.2
- 28.6
- 45.7
- 58.1
Operation temperature(°C)
- -60|130
- -|-
Width/grid dimension(mm)
- 4.2
- 5.2
- 6.2
- 8.3
- 12.5
- 16
- 18.5
- 19
- 21.6
- 21.7
- 24.9
- 25.6
- 27.9
- 28.6
- 31.4
- 31.5
- 36.9
- 37.4
- 41
- 43.9
- 46.3
- 46.9
- 55.4
- 56.5
- 64.8
Height at lowest possible mounting height(mm)
- 17.7
- 18.7
- 21.2
- 21.7
- 22.7
- 26.4
- 27.4
- 30.4
- 30.9
- 31.4
Connectable conductor cross section solid-core(mm²)
Connectable conductor cross section fine-strand with cable end sleeve(mm²)
Connectable conductor cross section fine-strand without cable end sleeve(mm²)
Connectable conductor cross section multi-wired(mm²)
Rated current In(A)
- 17.5
- 24
- 32
- 41
Explosion-tested version 'Ex e'
- -
- false
Type
Est. shipping days
- All
- Within 7 working days
- Within 12 working days
- Within 23 working days
- Within 32 working days
- Within 33 working days

Distributor block, PTFIX

Catalog

Part number:

Still undefined. 744 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

...

Part number

Colour

Rated voltage

(V)

Length

(mm)

Operation temperature

(°C)

Width/grid dimension

(mm)

Height at lowest possible mounting height

(mm)

Connectable conductor cross section solid-core

(mm²)

Connectable conductor cross section fine-strand with cable end sleeve

(mm²)

Connectable conductor cross section fine-strand without cable end sleeve

(mm²)

Connectable conductor cross section multi-wired

(mm²)

Rated current In

(A)

Explosion-tested version 'Ex e'

Minimum order quantity

Data sheet	Grey	690	28.6	-\|-	5.2	21.7	0.14\|4	0.14\|2.5	0.14\|2.5	0.14\|2.5	24	false	200 pieces
Data sheet	Red	690	28.6	-\|-	5.2	21.7	0.14\|4	0.14\|2.5	0.14\|2.5	0.14\|2.5	24	false	200 pieces
Data sheet	Grey	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	false	150 pieces
Data sheet	Blue	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Red	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Yellow	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Green	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Brown	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	White	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Black	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Other	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Other	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Orange	450	28.6	-\|-	6.2	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Other	450	28.6	-\|-	21.7	21.7	0.2\|6	0.2\|4	0.2\|4	-\|-	32	-	150 pieces
Data sheet	Grey	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	false	250 pieces
Data sheet	Blue	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	250 pieces
Data sheet	Red	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	250 pieces
Data sheet	Yellow	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	Green	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	250 pieces
Data sheet	Other	450	21.6	-60\|130	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	0.14\|1.5	17.5	false	200 pieces
Data sheet	Brown	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	White	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	Black	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	250 pieces
Data sheet	Orange	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	Other	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	Other	450	21.6	-\|-	4.2	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	200 pieces
Data sheet	Grey	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Blue	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Red	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Yellow	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Green	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Brown	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	White	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Black	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Other	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Other	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Orange	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Other	450	21.6	-60\|130	8.3	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	120 pieces
Data sheet	Grey	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	false	20 pieces
Data sheet	Blue	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Red	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Brown	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Green	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Yellow	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Black	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	White	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Other	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Orange	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Other	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Other	500	58.1	-\|-	21.6	26.4	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	20 pieces
Data sheet	Grey	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Blue	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Red	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Brown	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Green	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Yellow	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Black	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Other	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Orange	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces
Data sheet	Other	450	21.6	-\|-	31.4	17.7	0.14\|2.5	0.14\|1.5	0.14\|1.5	-\|-	17.5	-	40 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

0.99 € ( 1.18 € )	12 working days
0.99 € ( 1.18 € )	7 working days
1.26 € ( 1.50 € )	7 working days
1.26 € ( 1.50 € )	7 working days
1.26 € ( 1.50 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.26 € ( 1.50 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.26 € ( 1.50 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.33 € ( 1.58 € )	23 working days
1.33 € ( 1.58 € )	23 working days
0.90 € ( 1.07 € )	7 working days
0.90 € ( 1.07 € )	7 working days
0.90 € ( 1.07 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.90 € ( 1.07 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.90 € ( 1.07 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.95 € ( 1.13 € )	7 working days
0.95 € ( 1.13 € )	7 working days
1.80 € ( 2.14 € )	7 working days
1.80 € ( 2.14 € )	7 working days
1.80 € ( 2.14 € )	7 working days
1.90 € ( 2.26 € )	7 working days
1.80 € ( 2.14 € )	7 working days
1.90 € ( 2.26 € )	7 working days
1.90 € ( 2.26 € )	7 working days
1.80 € ( 2.14 € )	7 working days
1.90 € ( 2.26 € )	7 working days
1.90 € ( 2.26 € )	23 working days
1.90 € ( 2.26 € )	7 working days
1.90 € ( 2.26 € )	7 working days
9.22 € ( 10.97 € )	7 working days
9.22 € ( 10.97 € )	7 working days
9.22 € ( 10.97 € )	7 working days
9.78 € ( 11.64 € )	23 working days
9.22 € ( 10.97 € )	23 working days
9.78 € ( 11.64 € )	23 working days
9.22 € ( 10.97 € )	23 working days
9.78 € ( 11.64 € )	23 working days
9.78 € ( 11.64 € )	23 working days
9.78 € ( 11.64 € )	23 working days
9.78 € ( 11.64 € )	23 working days
9.78 € ( 11.64 € )	23 working days
6.02 € ( 7.16 € )	7 working days
6.02 € ( 7.16 € )	7 working days
6.02 € ( 7.16 € )	7 working days
6.38 € ( 7.59 € )	7 working days
6.02 € ( 7.16 € )	7 working days
6.38 € ( 7.59 € )	7 working days
6.02 € ( 7.16 € )	7 working days
6.38 € ( 7.59 € )	23 working days
6.38 € ( 7.59 € )	23 working days
6.38 € ( 7.59 € )	23 working days

...

Products homepage

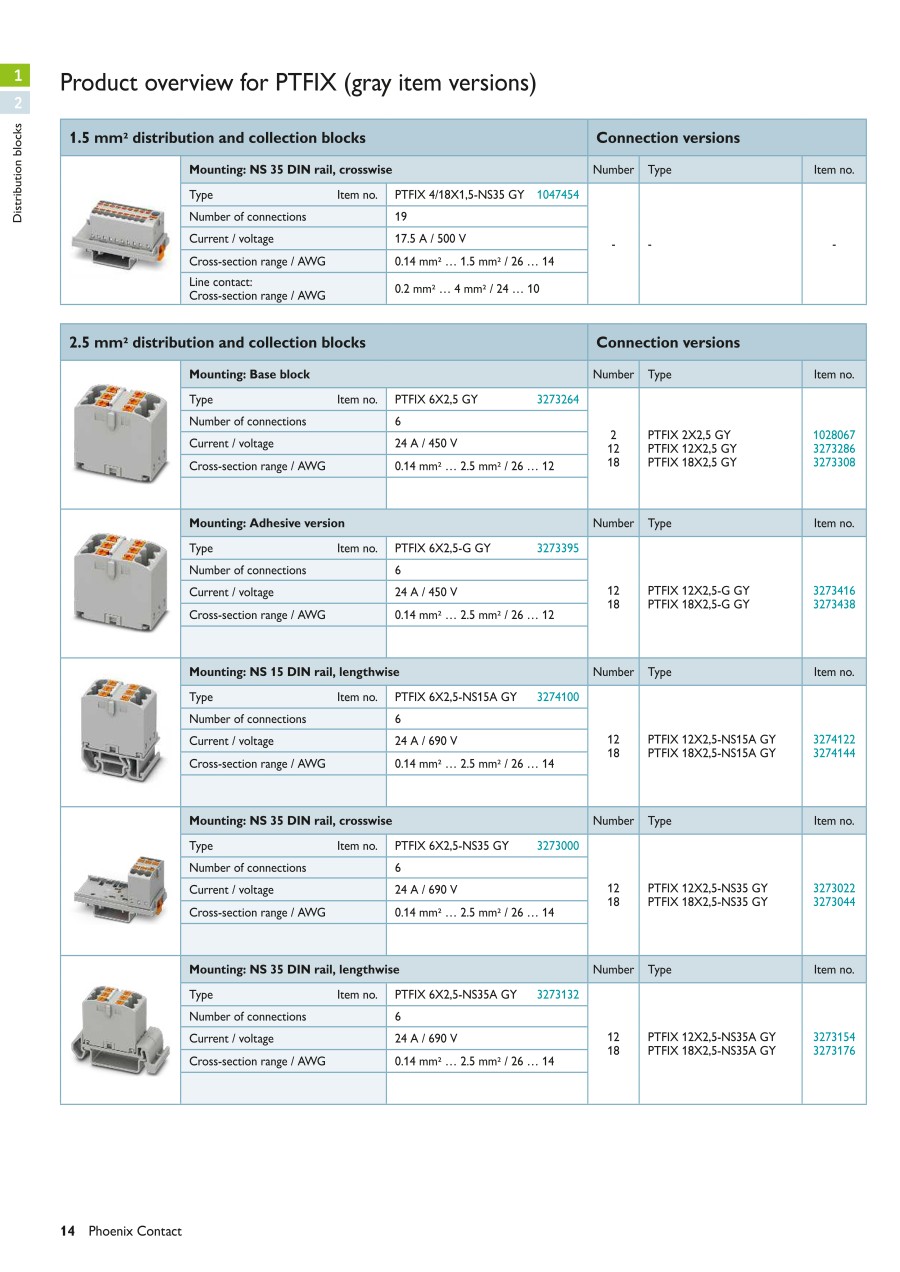

Catalog (2-page spread)
