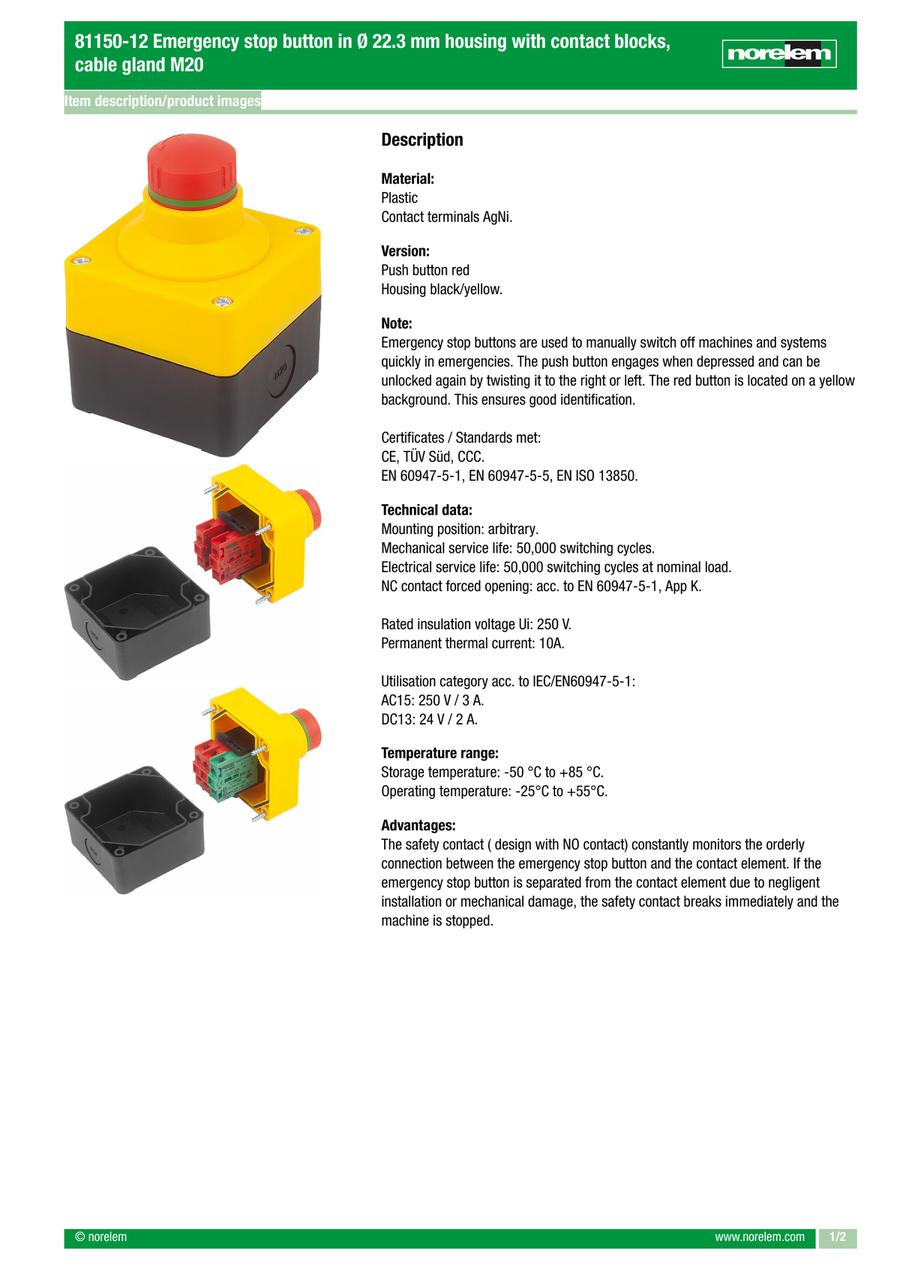

Emergency stop button, spring clamp, cable gland M20 (81150)
· Robust design
· High safety rating
· Position indication by coloured marking
· Self-monitoring
· Complete with contactor
· High safety rating
· Position indication by coloured marking
· Self-monitoring
· Complete with contactor
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 81150-12-203210 |
| 81150-12-213210 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Self-monitoring | No. of NO contacts | |
|---|---|---|---|---|---|---|
50.76 € | 1 | 4 Days | No | - | ||
55.92 € | 1 | 4 Days | Yes | 1 |
Loading...
Basic information
| Connection type | Spring clamp | Version 1 | Surface-mounted version | Main material | plastic |
|---|---|---|---|---|---|
| Item | Emergency stop button | Safety rating | IP65/IP67 | No. of NC contacts | 2 |
| Tamper-proof | Yes | Switch position indicator | Yes | Anti-block collar | Yes |
| Illuminable | No | Release | right/left rotation | Contact resistance m Ohm(m Ohm) | <100 |
| Bounce time ms(ms) | <10 | Tightening torque Mounting nut Nm(Nm) | 2.5 | Installed Ø | 22.3 |
| Connection cross-section max.(mm²) | 0.75-2.5 | Wire strip length(mm) | 8-10 | Contact current min.(mA) | 5 |
| Contact voltage min.(V) | 24 | Protection class | II Protective insulation | Cable entry | M20 breakaway |
| RoHS | yes | PL Edelstahl | no | Weight (ERP)(kg) | 0.0600 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
