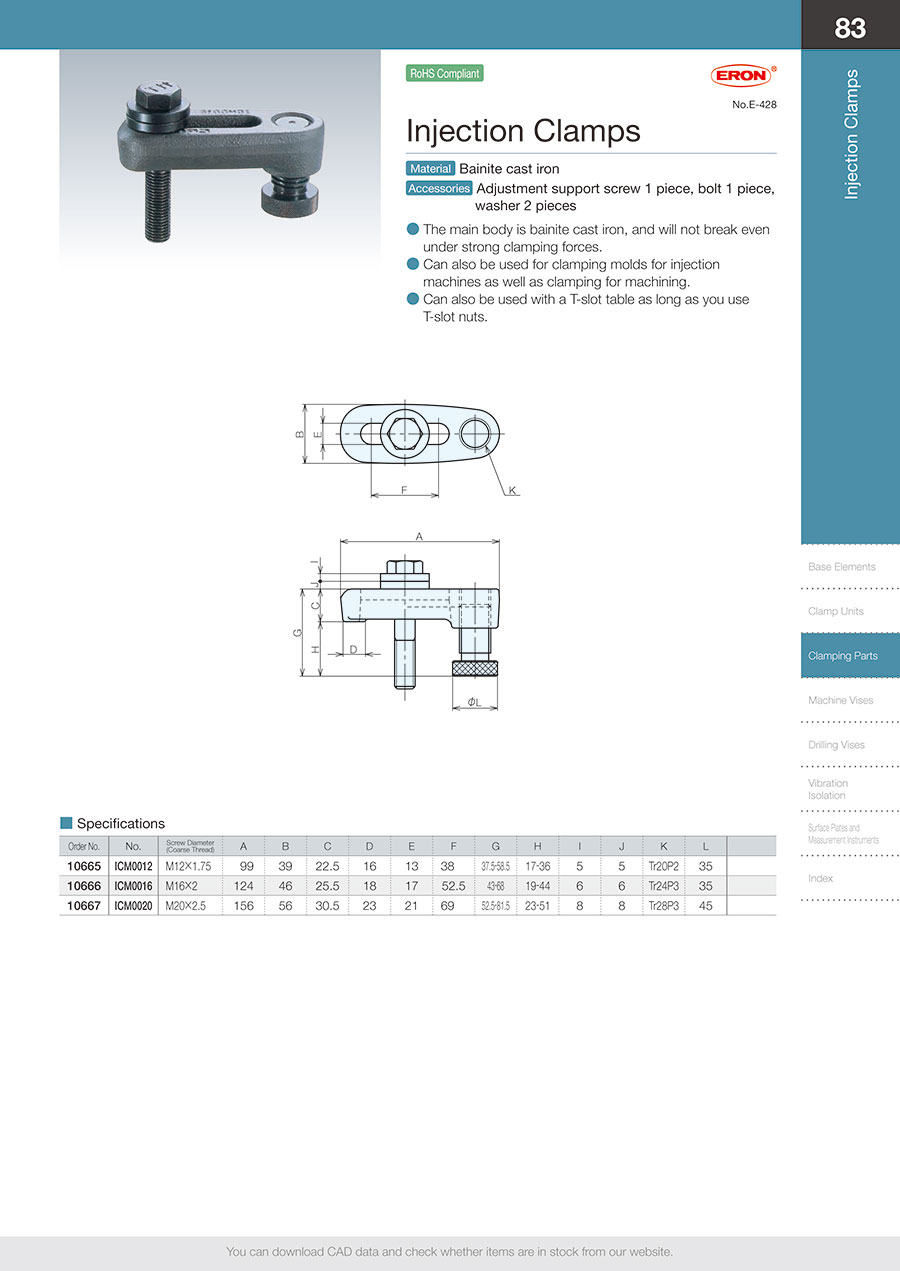

Injeck Clamp
· The body is made of bainite cast iron and does not get damaged even in excessive tightening.
· Can also be used for metal press clamps and the metal working clamps of injection molding machines.
· If a T-slot nut is used, then of course it can also be used with T-groove tables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| ICM0012 |
| ICM0016 |
| ICM0020 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | Mass (kg) | Applicable Bolt | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
44.79 € | 1 | 5 Days | 99 | 39 | 22.5 | 16 | 13 | 38 | 37.5～58.5 | 17～36 | 5 | 5 | Tr20P2 | 35 | 0.7 | M12X1.75 | ||
64.33 € | 1 | 5 Days | 124 | 46 | 25.5 | 18 | 17 | 52.5 | 43～68 | 19～44 | 6 | 6 | Tr24P3 | 35 | 1.1 | M16X2 | ||
93.48 € | 1 | 14 Days | 156 | 56 | 30.5 | 23 | 21 | 69 | 52.5～81.5 | 23～51 | 8 | 8 | Tr28P3 | 45 | 2 | M20X2.5 |
Loading...
Basic information
| Material | Bainite Cast Iron | Accessory | 1 adjustment support screw, 1 bolt and 2 washers |
|---|
