NABEYA

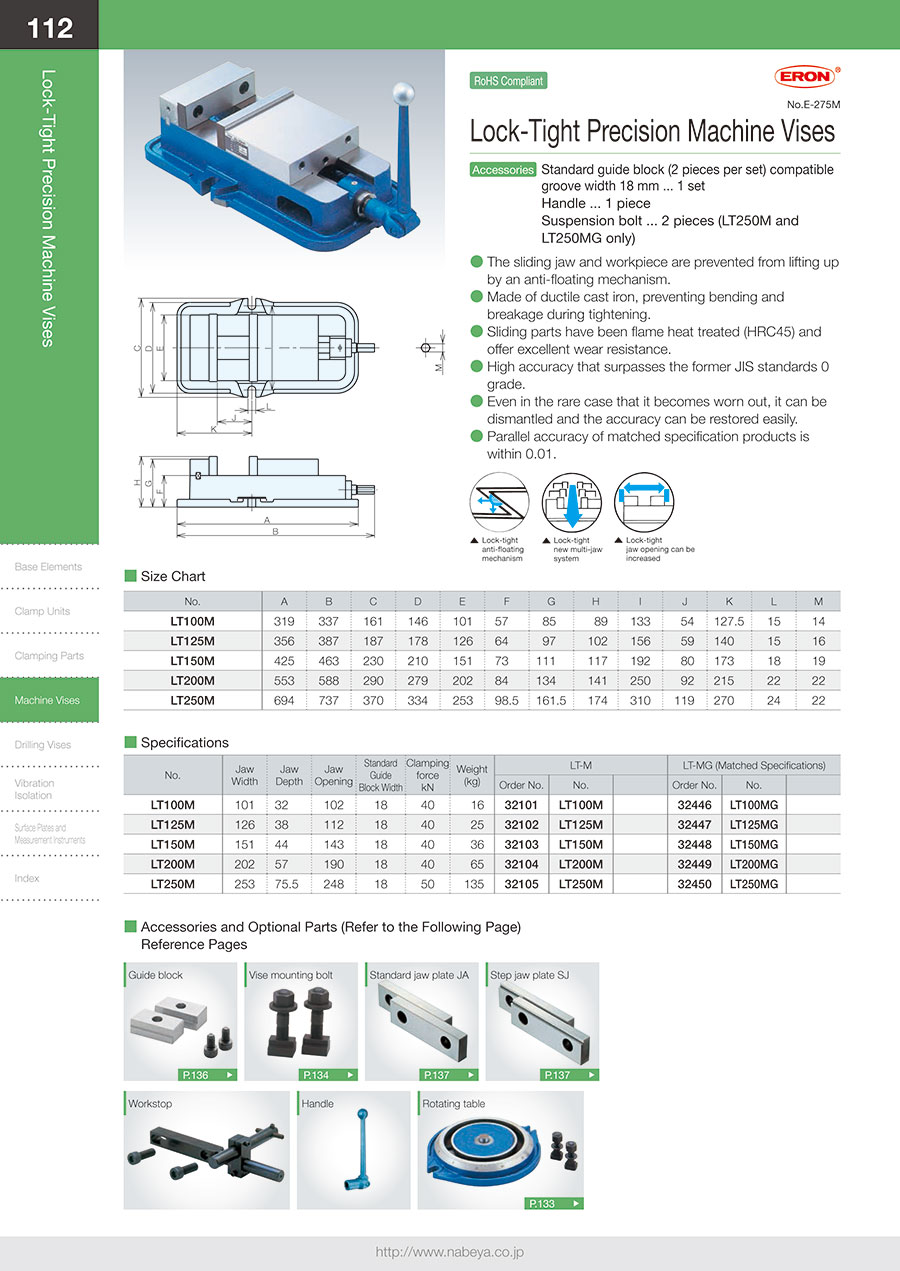

Lock-Tight Precision Machine Vise

Lock-Tight Precision Machine Vise

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    LT100M
    LT100MG
    LT125M
    LT125MG
    LT150M
    LT150MG
    LT200M
    LT200MG
    LT250M
    LT250MG

    Mouth Width

    (mm)

    Mouth Depth

    (mm)

    Maximum Opening

    (mm)

    Tightening Force

    (kN)

    Mass

    (kg)

    Specifications

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    (mm)

    F

    (mm)

    G

    (mm)

    H

    (mm)

    I

    (mm)

    J

    K

    L

    M

    (mm)

    Accessory

    		Minimum order quantity
    101
    32
    102
    40
    16
    -
    319
    337
    161
    146
    101
    57
    85
    89
    133
    54
    127.5
    15
    14
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    101
    32
    102
    40
    16
    Parallel specifications
    319
    337
    161
    146
    101
    57
    85
    89
    133
    54
    127.5
    15
    14
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    126
    38
    112
    40
    25
    -
    356
    387
    187
    178
    126
    64
    97
    102
    156
    59
    140
    15
    16
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    126
    38
    112
    40
    25
    Parallel specifications
    356
    387
    187
    178
    126
    64
    97
    102
    156
    59
    140
    15
    16
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    151
    44
    143
    40
    36
    -
    425
    463
    230
    210
    151
    73
    111
    117
    192
    80
    173
    18
    19
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    151
    44
    143
    40
    36
    Parallel specifications
    425
    463
    230
    210
    151
    73
    111
    117
    192
    80
    173
    18
    19
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    202
    57
    190
    40
    65
    -
    553
    588
    290
    279
    202
    84
    134
    141
    250
    92
    215
    22
    22
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    202
    57
    190
    40
    65
    Parallel specifications
    553
    588
    290
    279
    202
    84
    134
    141
    250
    92
    215
    22
    22
    1 set of standard guide blocks (2 pcs per set), 1 handle
    1 pieces
    253
    75.5
    248
    50
    135
    -
    694
    737
    370
    334
    253
    98.5
    161.5
    174
    310
    119
    270
    24
    22
    1 set of standard guide blocks (2 pcs per set), 1 handle, 2 hanging bolts
    1 pieces
    253
    75.5
    248
    50
    135
    Parallel specifications
    694
    737
    370
    334
    253
    98.5
    161.5
    174
    310
    119
    270
    24
    22
    1 set of standard guide blocks (2 pcs per set), 1 handle, 2 hanging bolts
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1,101.33 €
    ( 1,310.58 € )
    8 working days
    1,101.33 €
    ( 1,310.58 € )
    9 working days
    1,381.92 €
    ( 1,644.48 € )
    9 working days
    1,381.92 €
    ( 1,644.48 € )
    9 working days
    1,955.20 €
    ( 2,326.69 € )
    8 working days
    1,955.20 €
    ( 2,326.69 € )
    10 working days
    3,306.94 €
    ( 3,935.26 € )
    9 working days
    3,306.94 €
    ( 3,935.26 € )
    9 working days
    5,657.30 €
    ( 6,732.19 € )
    9 working days
    5,657.30 €
    ( 6,732.19 € )
    9 working days
  • 1

    • More Information

    Basic information

    The lifting prevention mechanism suppresses the lifting of movable parts or workpieces. Made of ductile cast iron to prevent bending and damage during tightening. The sliding part has excellent wear resistance as it has been flame quenched (HRC45). The accuracy is higher than the former JIS 0 class. Even if it wears off, it can be easily disassembled to correct accuracy. The parallel accuracy of the parallel specification is within 0.01.
