NACHI(FUJIKOSHI)

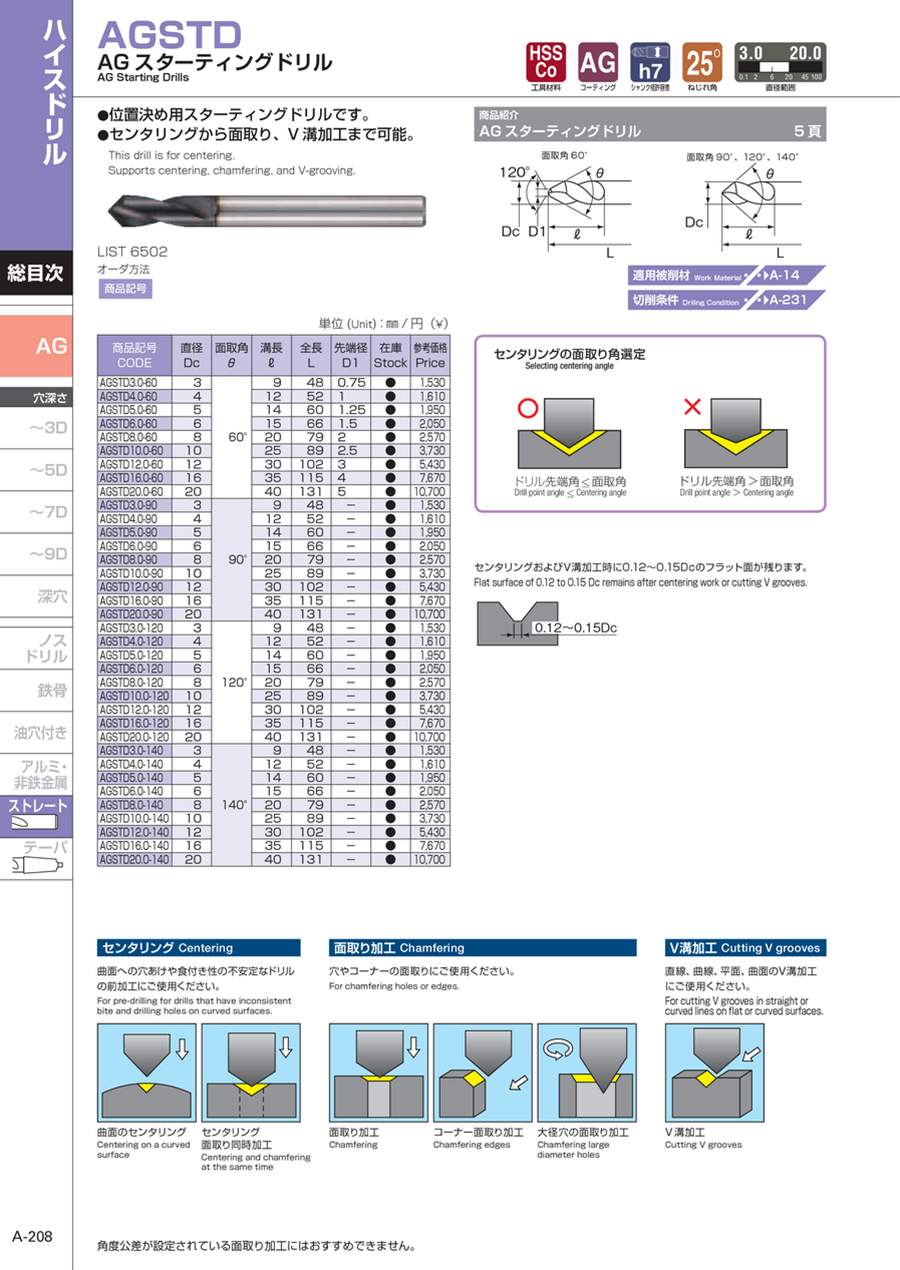

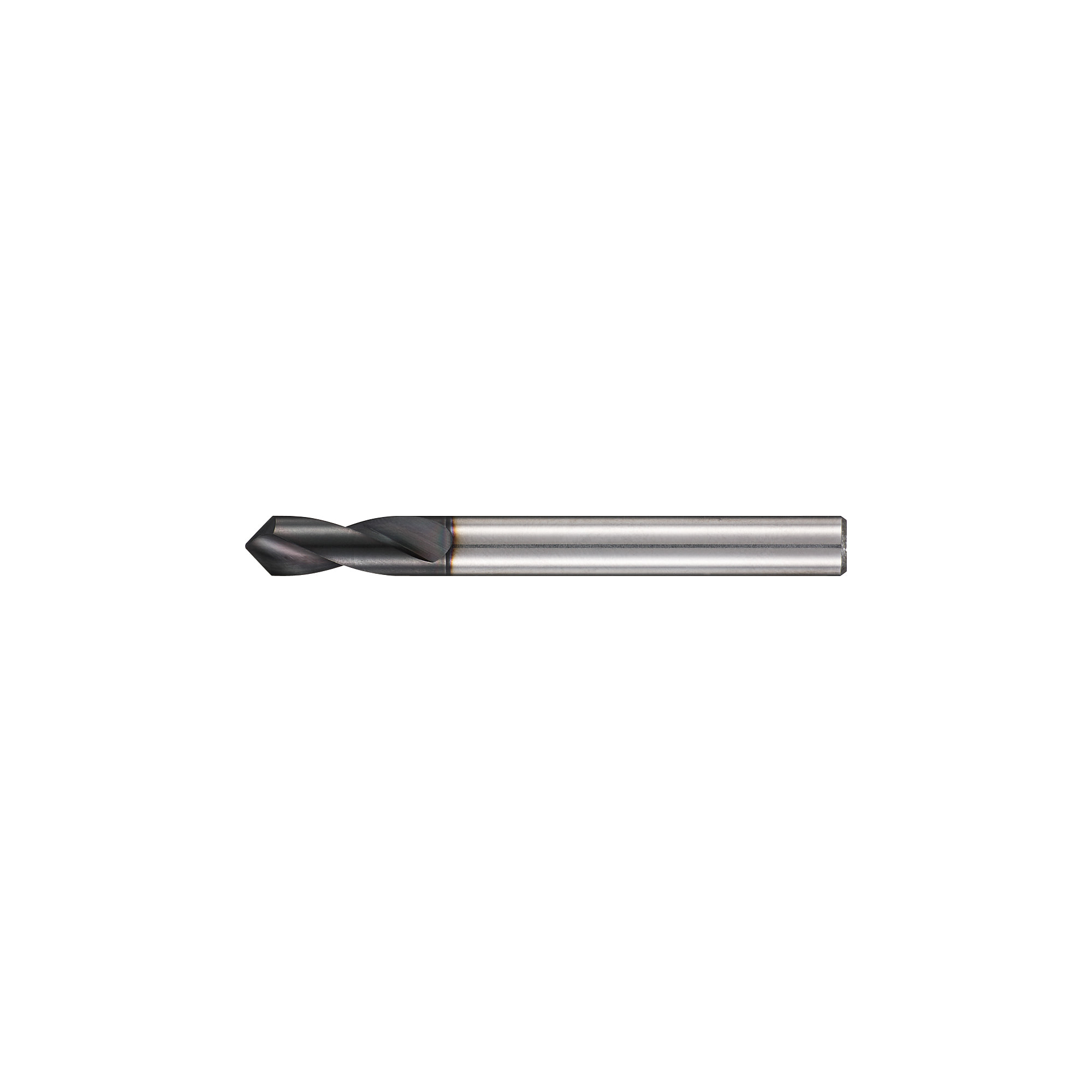

AG Starting Drill AGSTD

AG Starting Drill AGSTD

Mouse over image to enlarge

Part number:

Still undefined. 20 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    AGSTD3.0-60
    AGSTD3.0-120
    AGSTD4.0-90
    AGSTD4.0-140
    AGSTD5.0-60
    AGSTD5.0-90
    AGSTD5.0-120
    AGSTD5.0-140
    AGSTD6.0-60
    AGSTD6.0-90
    AGSTD8.0-90
    AGSTD8.0-120
    AGSTD8.0-140
    AGSTD10.0-60
    AGSTD10.0-140
    AGSTD16.0-60
    AGSTD16.0-140
    AGSTD20.0-60
    AGSTD20.0-90
    AGSTD20.0-120

    Diameter Dc

    (mm)

    Groove Length L

    (mm)

    Chamfer angle θ

    Overall Length L

    (mm)

    Tip diameter D1

    (mm)

    		Minimum order quantity
    3
    9
    60°
    48
    0.75
    1 pieces
    3
    9
    120°
    48
    -
    1 pieces
    4
    12
    90°
    52
    -
    1 pieces
    4
    12
    140°
    52
    -
    1 pieces
    5
    14
    60°
    60
    1.25
    1 pieces
    5
    14
    90°
    60
    -
    1 pieces
    5
    14
    120°
    60
    -
    1 pieces
    5
    14
    140°
    60
    -
    1 pieces
    6
    15
    60°
    66
    1.5
    2 pieces
    6
    15
    90°
    66
    -
    1 pieces
    8
    20
    90°
    79
    -
    1 pieces
    8
    20
    120°
    79
    -
    1 pieces
    8
    20
    140°
    79
    -
    1 pieces
    10
    25
    60°
    89
    2.5
    1 pieces
    10
    25
    140°
    89
    -
    1 pieces
    16
    35
    60°
    115
    4
    1 pieces
    16
    35
    140°
    115
    -
    1 pieces
    20
    40
    60°
    131
    5
    1 pieces
    20
    40
    90°
    131
    -
    1 pieces
    20
    40
    120°
    131
    -
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    20.60 €
    ( 24.51 € )
    10 working days
    29.15 €
    ( 34.69 € )
    10 working days
    20.51 €
    ( 24.41 € )
    6 working days
    21.69 €
    ( 25.81 € )
    8 working days
    26.25 €
    ( 31.24 € )
    10 working days
    24.93 €
    ( 29.67 € )
    6 working days
    26.25 €
    ( 31.24 € )
    8 working days
    34.73 €
    ( 41.33 € )
    10 working days
    27.76 €
    ( 33.03 € )
    10 working days
    26.25 €
    ( 31.24 € )
    6 working days
    34.86 €
    ( 41.48 € )
    8 working days
    34.86 €
    ( 41.48 € )
    10 working days
    34.86 €
    ( 41.48 € )
    10 working days
    48.15 €
    ( 57.30 € )
    6 working days
    50.78 €
    ( 60.43 € )
    24 working days
    105.51 €
    ( 125.56 € )
    10 working days
    111.24 €
    ( 132.38 € )
    6 working days
    149.13 €
    ( 177.46 € )
    10 working days
    149.13 €
    ( 177.46 € )
    10 working days
    152.60 €
    ( 181.59 € )
    10 working days
  • 1

    • More Information

    Basic information

    Starting drill for positioning use. Can perform centering, chamfering, and even V grooving.
