Configure
- Blade diameter D(mm)
- 2
- 4
- 6
- 8
- 10
- 12
- Overall length (L)(mm)
- 50
- 60
- 70
- 75
- Shank diameter (d)(mm)
- 6
- 8
- 10
- 12
- Maximum Cutting Depth (Ap)(mm)
- 0.85
- 1.85
- 2.85
- 3.8
- 4.75
- 5.75
- Underneck length (ℓ1)(mm)
- 6
- 12
- Type
- Est. shipping days
- All
- Within 8 working days
- Within 9 working days
- Within 10 working days
- Within 11 working days

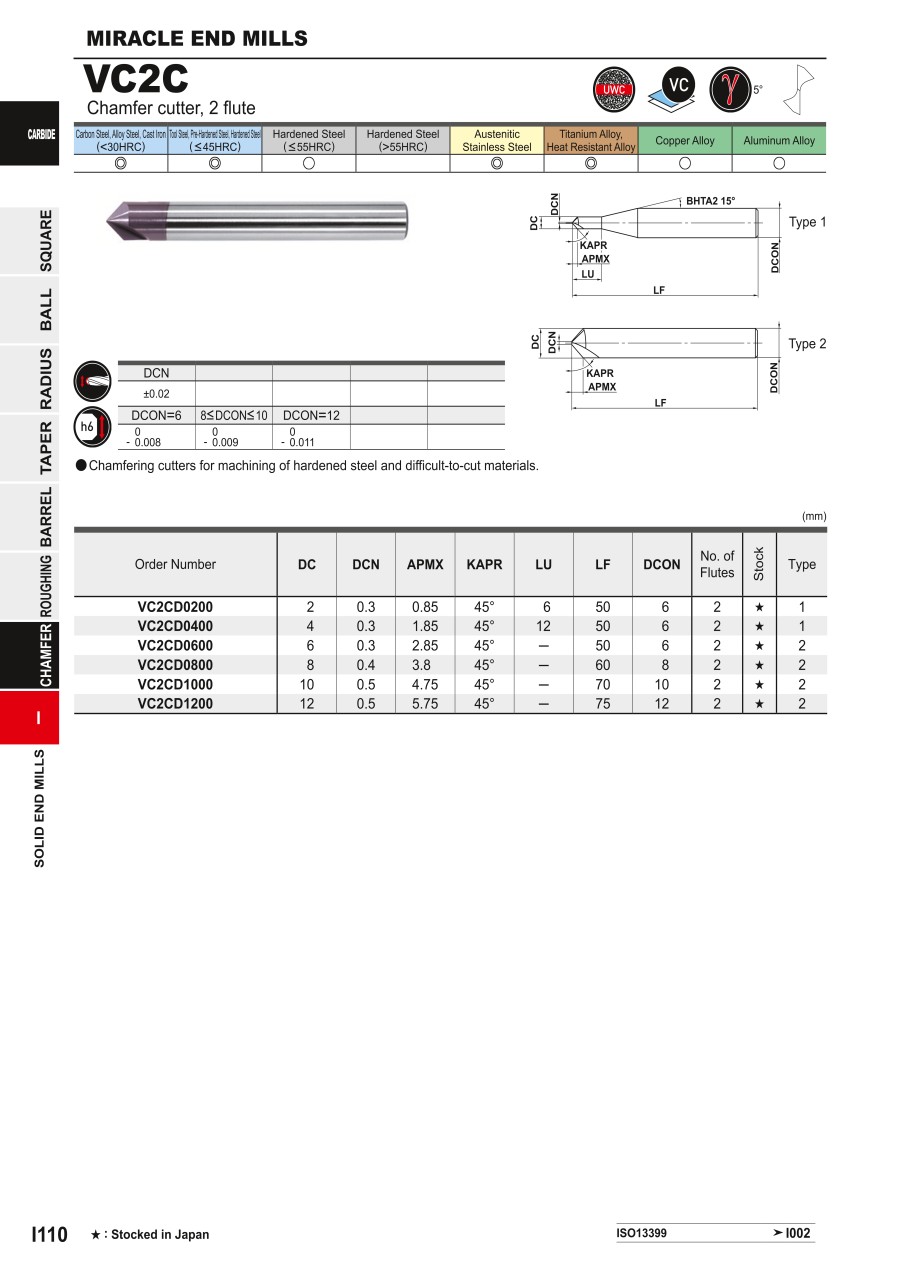

VC2C 2 Flute Miracle, Chamfer Cutter
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
120.82 € ( 143.78 € ) | 8 working days |
113.98 € ( 135.64 € ) | 10 working days |
115.67 € ( 137.65 € ) | 11 working days |
141.24 € ( 168.08 € ) | 9 working days |
203.02 € ( 241.59 € ) | 9 working days |
235.70 € ( 280.48 € ) | 8 working days |
More Information
Basic information
A multi-functional chamfering cutter capable of corner chamfering, hole chamfering, V-groove, and center hole machining.
It can be used for a wide range of applications, from raw materials to hardened steel and difficult-to-cut materials.
Uses miracle coating.
High-speed rotation enables highly efficient machining.
Since it has a bottom edge, V-groove processing and vertical center hole processing are also possible.
