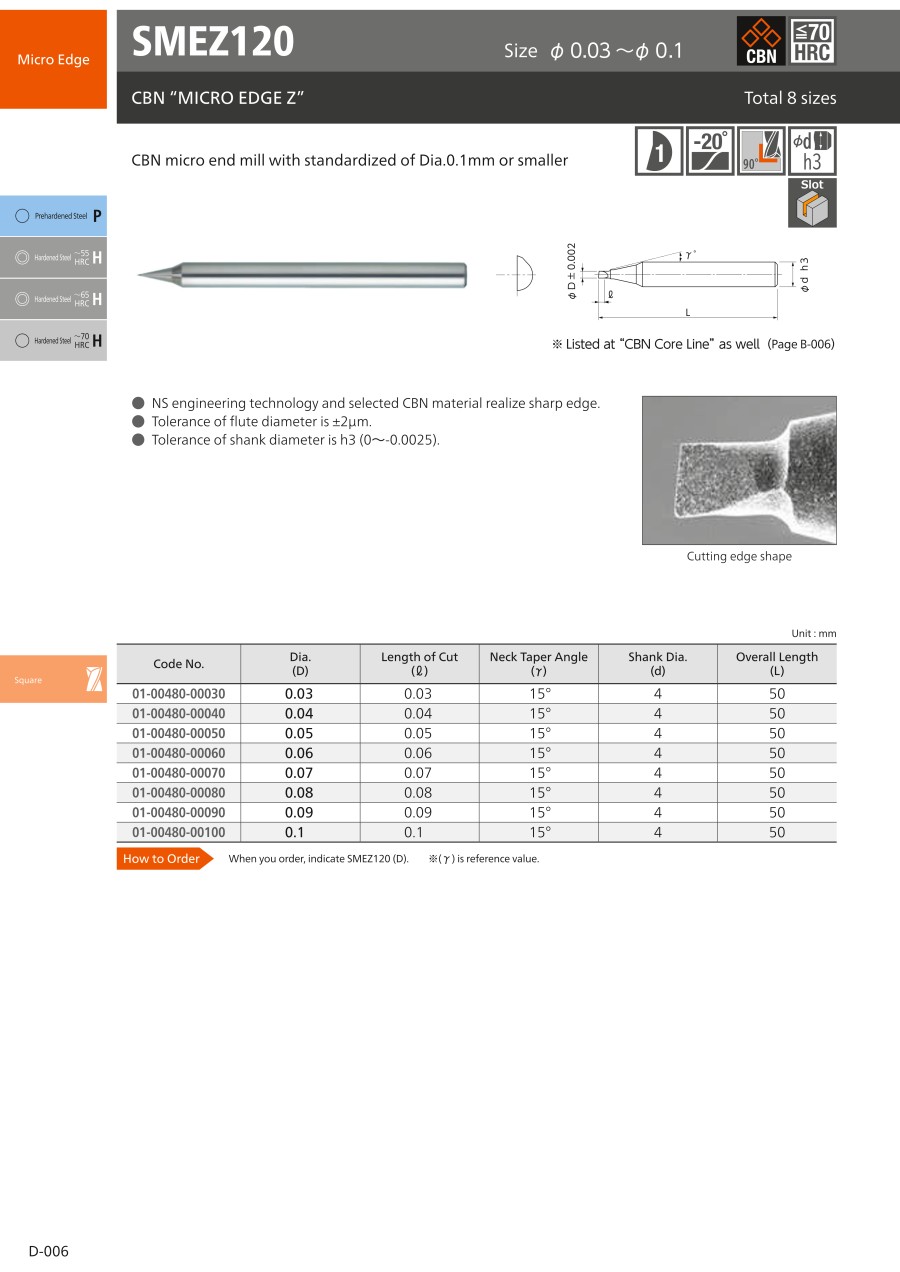

SMEZ120 CBN Micro Edge Z

SMEZ120 CBN Micro Edge Z
Sharp edge achieved by matching NS machining technology with carefully selected CBN material

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
SMEZ120-0.03
SMEZ120-0.06
SMEZ120-0.07
SMEZ120-0.08
SMEZ120-0.09
SMEZ120-0.1
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Manufacturer Code

399.91 €

1 6 Days 0.030.0301-00480-00030

279.96 €

1 6 Days 0.060.0601-00480-00060

279.96 €

1 6 Days 0.070.0701-00480-00070

259.97 €

1 6 Days 0.080.0801-00480-00080

259.97 €

1 6 Days 0.090.0901-00480-00090

226.66 €

1 6 Days 0.10.101-00480-00100

Loading...

  1. 1

Basic information

work material General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 Number of flutes(sheet) 1 Type Square
Coating Non-Coated Shank diameter (d)(mm) 4 Overall Length (L)(mm) 50
Machining Application Plane / Side / Groove / Inclined Cuts Blade tip shape Sharp Edge Torsion Angle (θ) Weak torsion (15 to 25°)
(γ) Neck Angle(°) 15 Blade diameter tolerance(mm) 0~-0.0025
