NABEYA

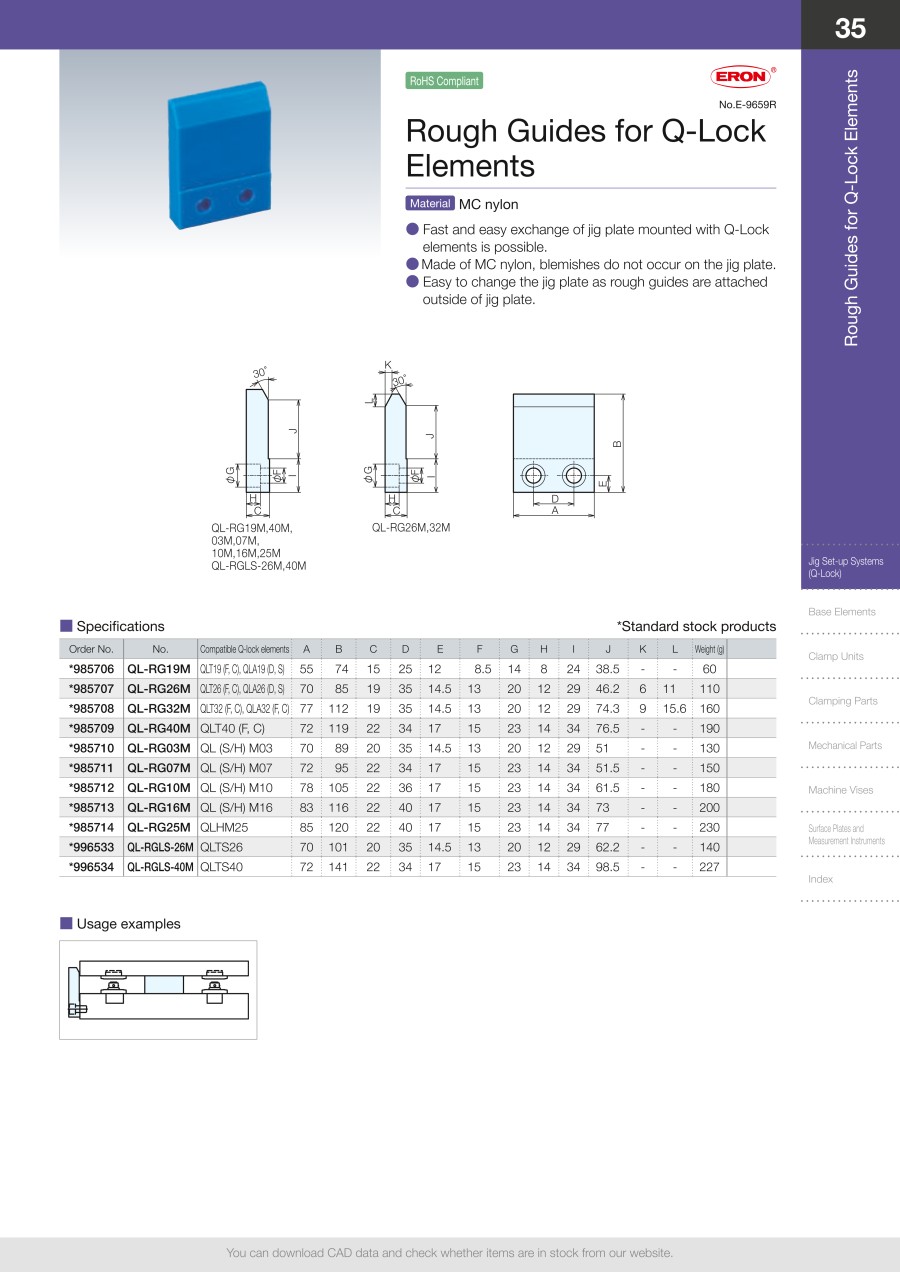

Rough Guide for Q Lock (Side Type)

Rough Guide for Q Lock (Side Type)

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    QL-RGLS-26M
    QL-RGLS-40M

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    (mm)

    F

    (mm)

    G

    (mm)

    H

    (mm)

    I

    (mm)

    J

    (mm)

    Compatible Q Locking Element

    Mass

    (g)

    		Minimum order quantity
    70
    101
    20
    35
    14.5
    13φ
    20φ
    12
    29
    62.2
    QLTS26
    140
    1 pieces
    72
    141
    22
    34
    17
    15φ
    23φ
    14
    34
    98.5
    QLTS40
    227
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    125.60 €
    ( 149.46 € )
    6 working days
    134.11 €
    ( 159.59 € )
    6 working days
  • 1

    • More Information

    Basic information

    The jig plate with the Q-lock element attached enables quick and easy replacement. Made of MC nylon so does not scratch the jig pallet. As it is located outside the jig, it is easy to attach the jig.
