NABEYA

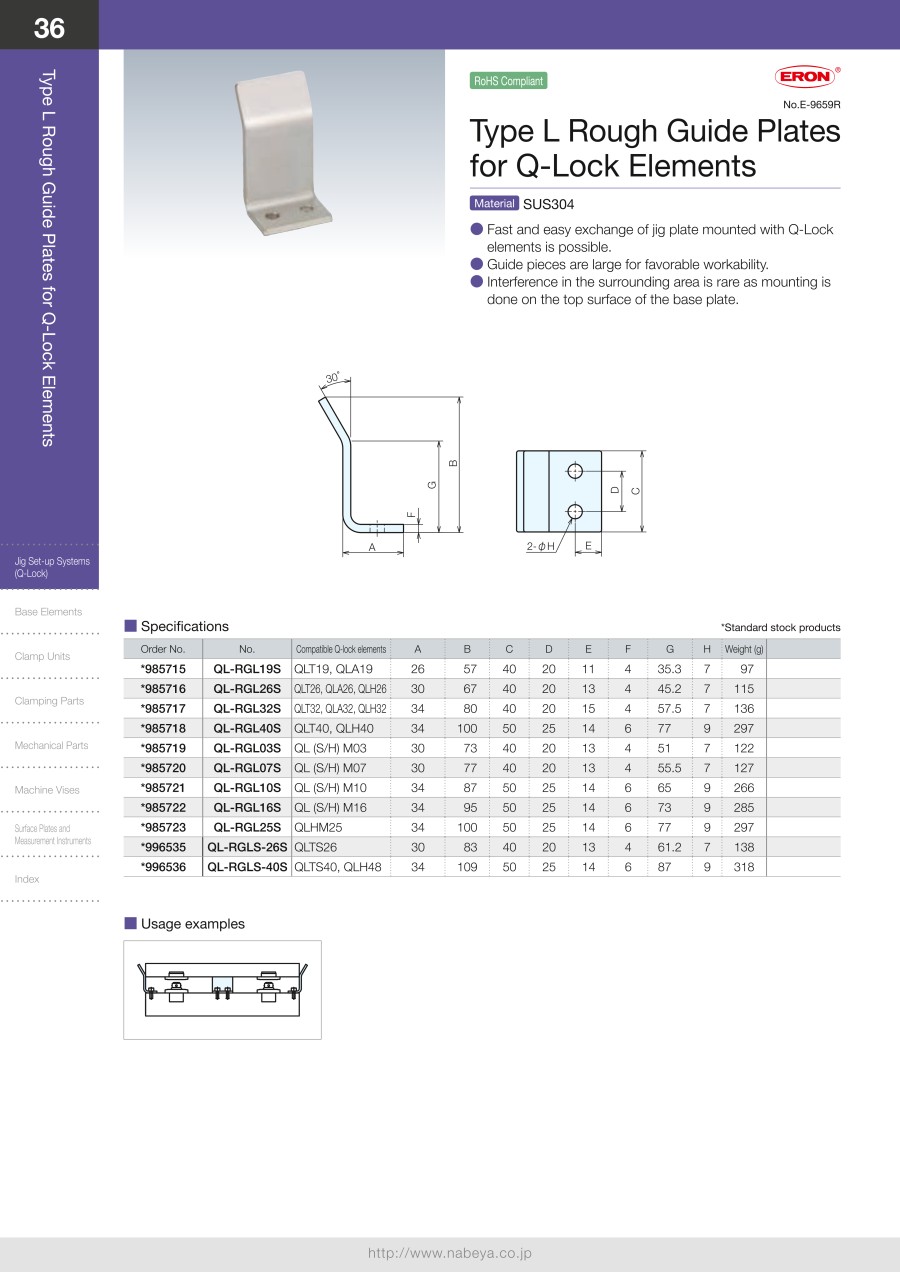

Rough Guide L-Plate for Q Lock (Side Type)

Rough Guide L-Plate for Q Lock (Side Type)

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    QL-RGLS-26S
    QL-RGLS-40S

    A

    (mm)

    B

    (mm)

    C

    (mm)

    D

    (mm)

    E

    (mm)

    F

    (mm)

    G

    (mm)

    H

    (mm)

    Compatible Q Locking Element

    Mass

    (g)

    		Minimum order quantity
    30
    83
    40
    20
    13
    4
    61.2
    7φ
    QLTS26
    138
    1 pieces
    34
    109
    50
    25
    14
    6
    87
    9φ
    QLTS40
    318
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    42.53 €
    ( 50.61 € )
    8 working days
    44.09 €
    ( 52.47 € )
    8 working days
  • 1

    • More Information

    Basic information

    The jig plate with the Q-lock element attached enables quick and easy replacement. Good workability due to large guide part. Mounts onto the top surfaces of the mother jig for minimal interference with surroundings.
