Configure
- A(mm)
- 45
- 58
- 72
- 88
- B(mm)
- 15
- 20
- 25
- 28
- C(mm)
- 31.3
- 39.2
- 49
- 59
- D(mm)
- 6
- 7
- 8.5
- 9.5
- E(mm)
- 7
- 10
- 12
- 15
- F(mm)
- 4
- 5
- 6
- 7
- G(mm)
- 19
- 26
- 32
- 40
- H(mm)
- 18
- 23
- 29
- 72
- I(mm)
- 4
- 6
- J(mm)
- 4.5
- 6
- 7
- K(mm)
- 5
- 6
- 8
- 10
- Mass(g)
- 110
- 260
- 500
- 950
- Type
- Est. shipping days
- All
- Within 6 working days
- Within 10 working days

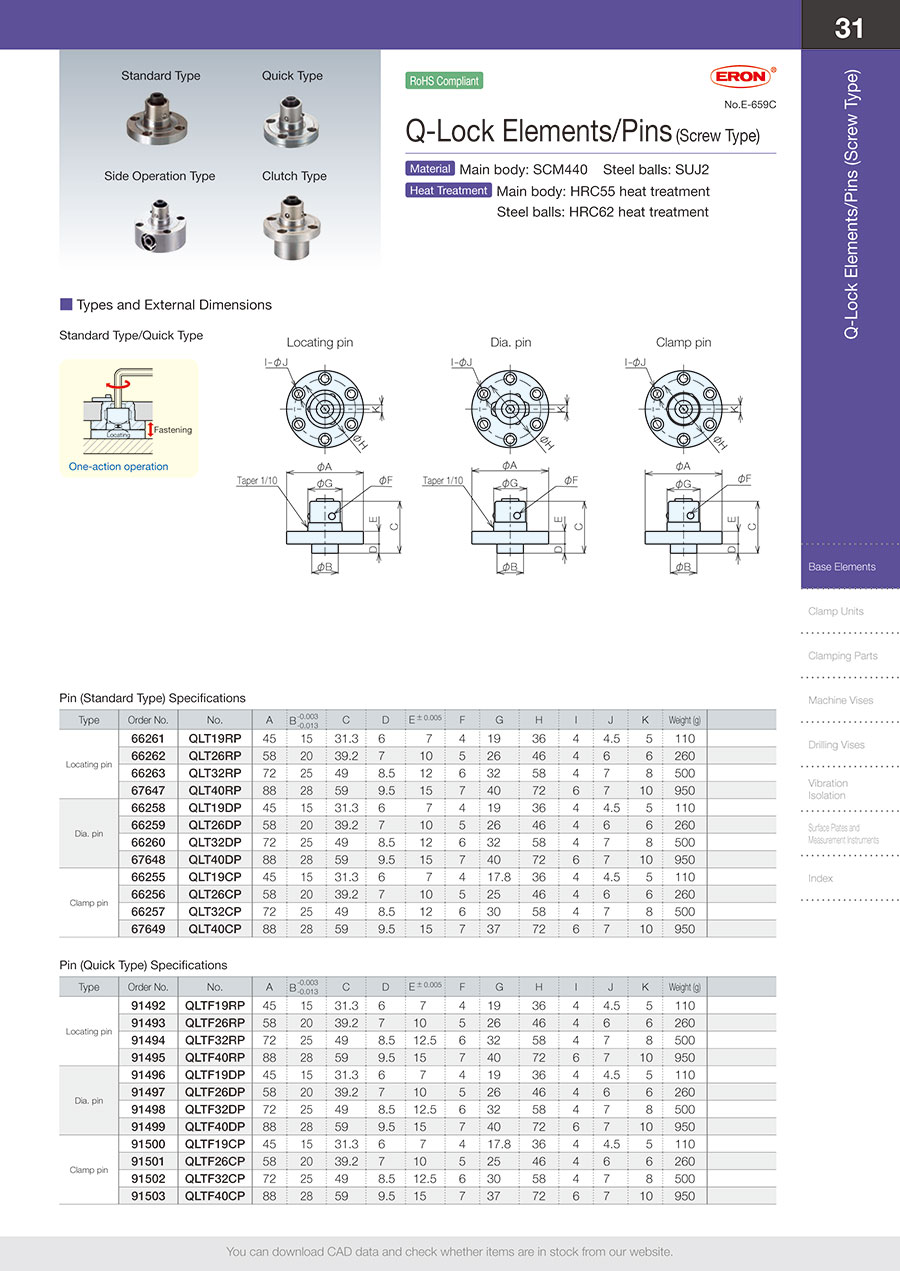

Q Lock (Screw Type) Locating Pin
Part number:
possible part numbers found.More Information
Basic information
A two-sided restraint type jig setup element that provides high speed, high precision, and high rigidity, for the replacement and positioning of jigs. It can be incorporated into an existing jig. Can be used for the automatic replacement of jigs.
