MITUTOYO

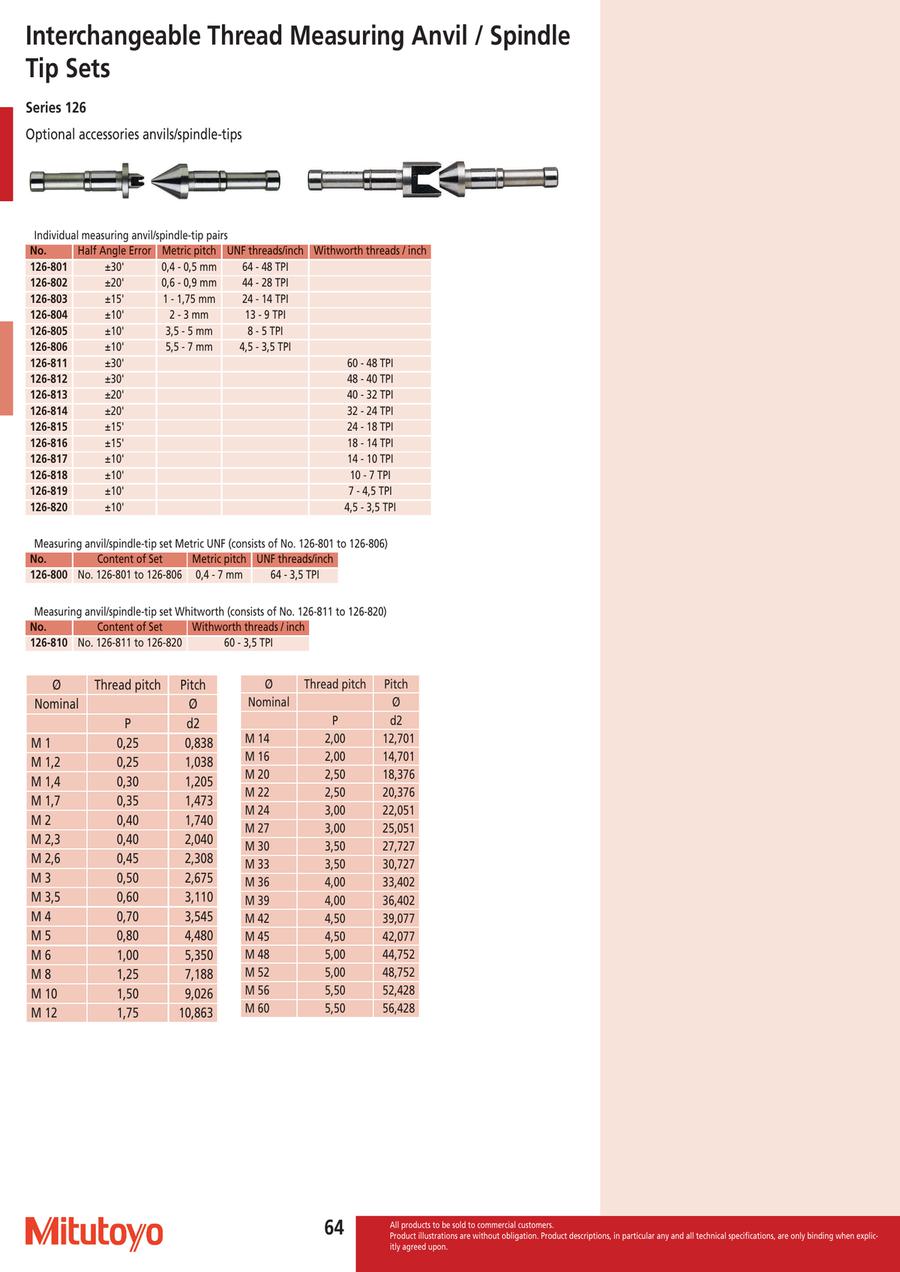

326/126 Series, Replaceable Anvil Screw Thread Micrometer TMC

326/126 Series, Replaceable Anvil Screw Thread Micrometer TMC

Caution

  • The replaceable stylus is optional.

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    126-801
    126-802
    126-803
    126-804
    126-805
    126-806
    Related

    Additional Spec

    Half Angle Error

    (ft)

    Metric Pitch

    (mm)

    UNF threads/inch

    (TPI)

    		Minimum order quantity

    Data sheet

    0.4-0.5 mm / 64-48 TPI
    ±30
    0.4-0.5
    64-48
    1 pieces

    Data sheet

    0.6-0.9 mm/44-28TPI
    ±20
    0.6-0.9
    44-28
    1 pieces

    Data sheet

    1-1.75 mm/24-14 TPI
    ±15
    1-1.75
    24-14
    1 pieces

    Data sheet

    2-3 mm/13-9TPI
    ±10
    2-3
    9-13
    1 pieces

    Data sheet

    3.5-5 mm/8-5TPI
    ±10
    3.5-5
    5-8
    1 pieces

    Data sheet

    5.5-7 mm/4.5-3.5TPI
    ±10
    5.5-7
    4.5-3.5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    77.00 €
    ( 91.63 € )
    5 working days
    77.00 €
    ( 91.63 € )
    5 working days
    77.00 €
    ( 91.63 € )
    5 working days
    77.00 €
    ( 91.63 € )
    5 working days
    77.00 €
    ( 91.63 € )
    5 working days
    77.00 €
    ( 91.63 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Applications]
    · Used by replacing the spare stylus on a single main body.
    [Features]
    · The effective diameter of the screw can be read directly (calculation not needed).
    · Equipped with a constant pressure device.
    · With reference rod for reference point adjustment for metric (unified) 60°

    Caution

    • The replaceable stylus is optional.
