OSG

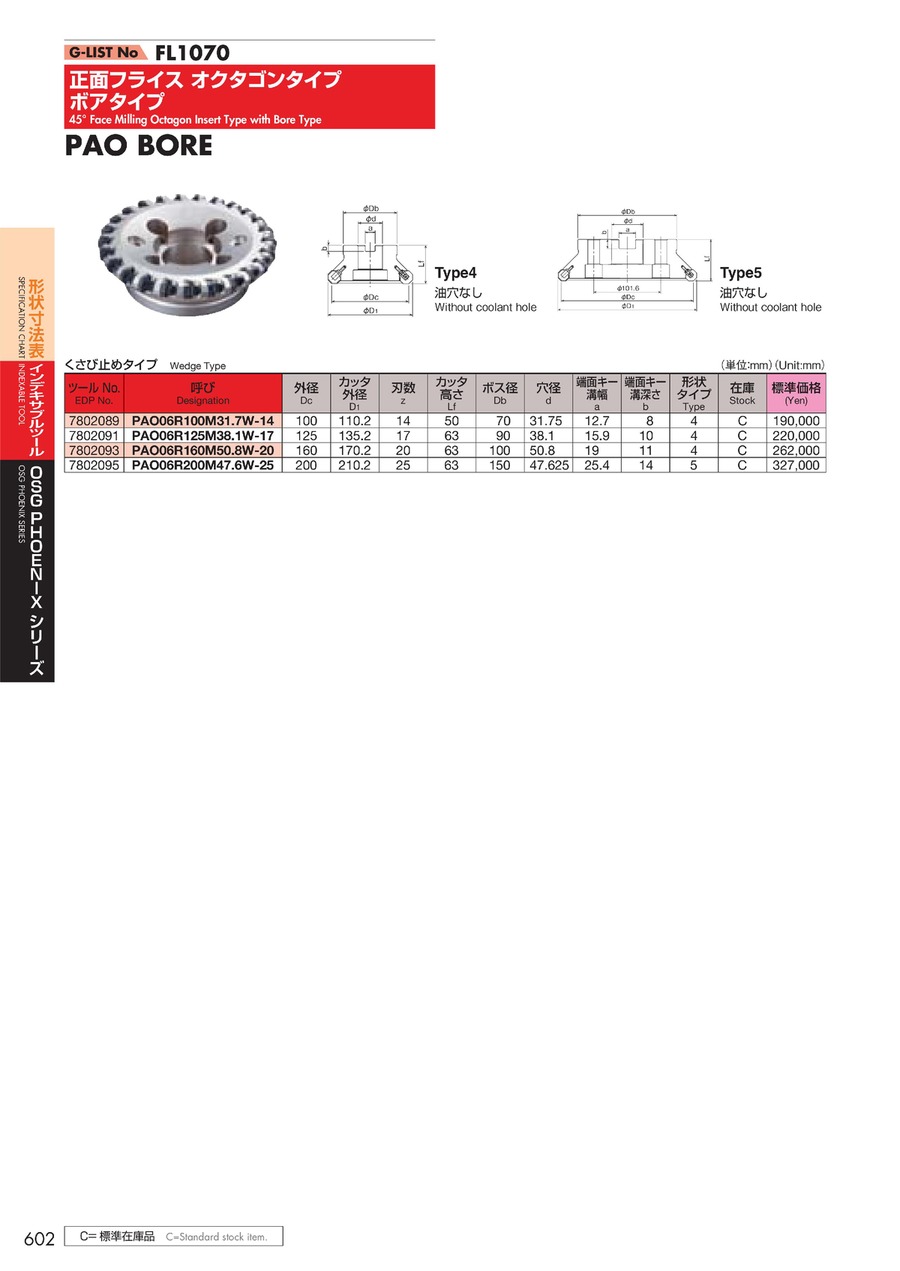

Phoenix Series Face Milling Cutter, Octagon Type, Bore Type, Wedge Stop Type

Phoenix Series Face Milling Cutter, Octagon Type, Bore Type, Wedge Stop Type

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    PAO06R100M31.7W-14
    PAO06R125M38.1W-17
    PAO06R160M50.8W-20
    PAO06R200M47.6W-25

    External diameter Dc

    (mm)

    Overall Length L/Cutter Height

    (mm)

    Number of flutes

    (sheet)

    Hole Diameter

    (mm)

    Tool No.

    Cutter outer diameter D1

    (mm)

    Boss Diameter db

    (mm)

    Width of the Key Slot a

    (mm)

    Depth of the Key Slot b

    (mm)

    Type

    		Minimum order quantity
    100
    50
    14
    31.75
    7802089
    110.2
    70
    12.7
    8
    4
    1 pieces
    125
    63
    17
    38.1
    7802091
    135.2
    90
    15.9
    10
    4
    1 pieces
    160
    63
    20
    50.8
    7802093
    170.2
    100
    19
    11
    4
    1 pieces
    200
    63
    25
    47.625
    7802095
    210.2
    150
    25.4
    14
    5
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1,029.17 €
    ( 1,224.71 € )
    6 working days
    1,191.67 €
    ( 1,418.09 € )
    6 working days
    1,419.17 €
    ( 1,688.81 € )
    6 working days
    1,771.25 €
    ( 2,107.79 € )
    6 working days
  • 1

    • More Information

    Basic information

    PHOENIX Series, wedge type
    [Materials]General steel / Tempered steel / Stainless steel / Cast iron.
