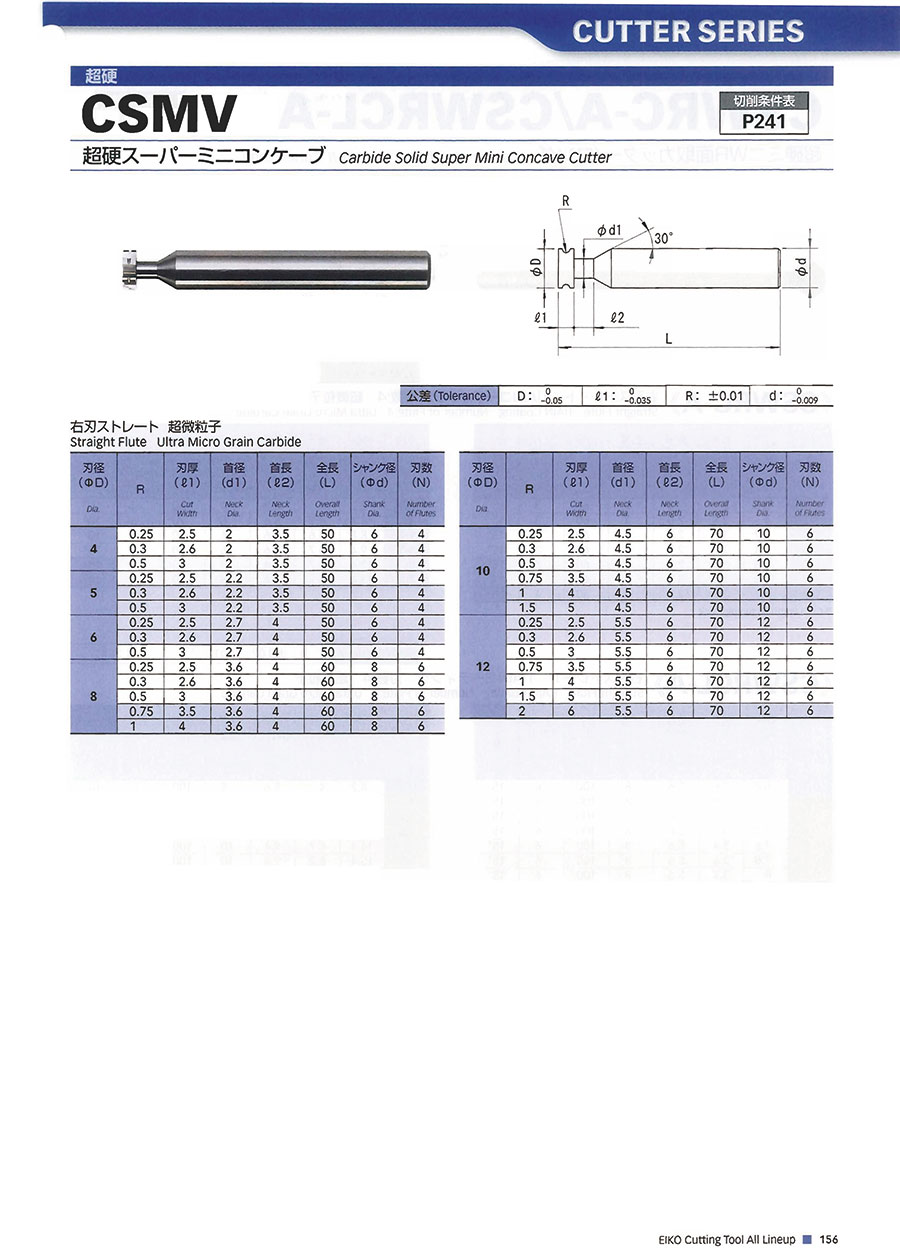

Carbide Super Mini, Concave
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | blade diameter (mm) | Blade thickness (mm) | R | Neck diameter (mm) | Neck length (mm) | Overall Length (mm) | shank diameter (mm) | Number of flutes | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
180.77 € | 1 | 6 Days | 4 | 2.6 | 0.3 | 2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 4 | 3 | 0.5 | 2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 4 | 2.5 | 0.25 | 2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 5 | 2.6 | 0.3 | 2.2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 5 | 3 | 0.5 | 2.2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 5 | 2.5 | 0.25 | 2.2 | 3.5 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 6 | 2.6 | 0.3 | 2.7 | 4 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 6 | 3 | 0.5 | 2.7 | 4 | 50 | 6 | 4 | ||
180.77 € | 1 | 6 Days | 6 | 2.5 | 0.25 | 2.7 | 4 | 50 | 6 | 4 | ||
222.66 € | 1 | 6 Days | 8 | 2.6 | 0.3 | 3.6 | 4 | 60 | 8 | 6 | ||
222.66 € | 1 | 6 Days | 8 | 3 | 0.5 | 3.6 | 4 | 60 | 8 | 6 | ||
222.66 € | 1 | 6 Days | 8 | 2.5 | 0.25 | 3.6 | 4 | 60 | 8 | 6 | ||
222.66 € | 1 | 6 Days | 8 | 3.5 | 0.75 | 3.6 | 4 | 60 | 8 | 6 | ||
222.66 € | 1 | 6 Days | 8 | 4 | 1 | 3.6 | 4 | 60 | 8 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 2.6 | 0.3 | 4.5 | 6 | 70 | 10 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 3 | 0.5 | 4.5 | 6 | 70 | 10 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 2.5 | 0.25 | 4.5 | 6 | 70 | 10 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 3.5 | 0.75 | 4.5 | 6 | 70 | 10 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 4 | 1 | 4.5 | 6 | 70 | 10 | 6 | ||
246.56 € | 1 | 6 Days | 10 | 5 | 1.5 | 4.5 | 6 | 70 | 10 | 6 | ||
289.15 € | 1 | 6 Days | 12 | 2.6 | 0.3 | 5.5 | 6 | 70 | 12 | 6 | ||
289.15 € | 1 | 6 Days | 12 | 3 | 0.5 | 5.5 | 6 | 70 | 12 | 6 | ||
289.15 € | 1 | 6 Days | 12 | 2.5 | 0.25 | 5.5 | 6 | 70 | 12 | 6 | ||
291.64 € | 1 | 6 Days | 12 | 3.5 | 0.75 | 5.5 | 6 | 70 | 12 | 6 | ||
291.64 € | 1 | 6 Days | 12 | 4 | 1 | 5.5 | 6 | 70 | 12 | 6 | ||
291.64 € | 1 | 6 Days | 12 | 5 | 1.5 | 5.5 | 6 | 70 | 12 | 6 | ||
291.64 € | 1 | 6 Days | 12 | 6 | 2 | 5.5 | 6 | 70 | 12 | 6 |
Loading...
Basic information
| Material | Carbide | Blade diameter tolerance | -0.05～0 | blade shape | Right blade straight |
|---|---|---|---|---|---|
| Blade thickness tolerance | -0.035～0 | Shank tolerance | -0.009～0 | R Tolerance | ±0.01 |
Configure
Basic Attributes
-
blade diameter(mm)
-
Blade thickness(mm)
-
R
-
Neck diameter(mm)
-
Neck length(mm)
-
Overall Length(mm)
-
shank diameter(mm)
-
Number of flutes
-
Type
- CSMV
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
