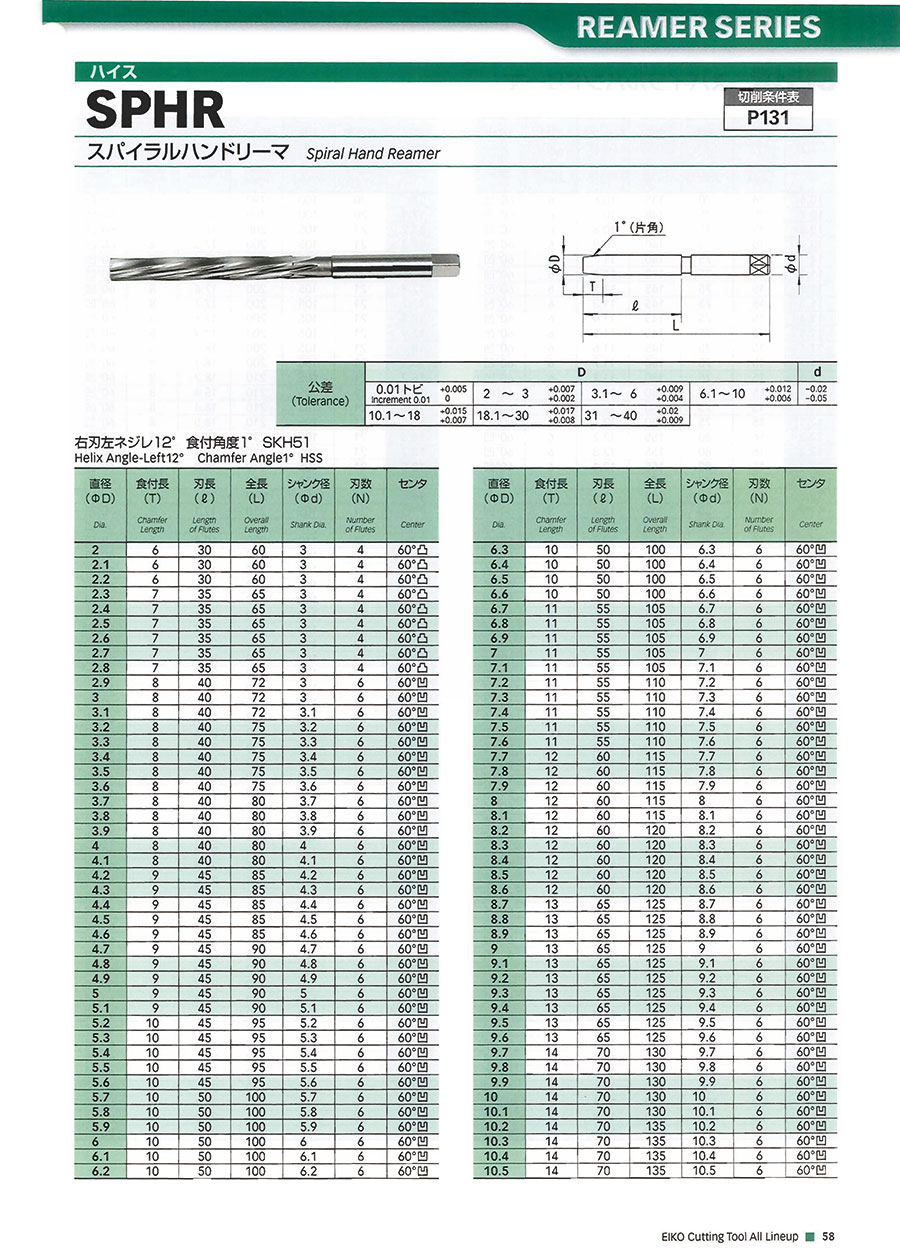

Spiral Hand Reamer

Spiral Hand Reamer
  • Volume Discount

EIKOSHA

EIKOSHA

General-purpose spiral reamer (HSS) with torsion blade that can be hand turned.
[Features]
· The shank has an angle and can be hand turned.
· The bite is long (angle set at 1°) and the cutting edge does not easily get damaged.
· Adopts a torsion blade with excellent cutting powder discharge.
[Applications]
· For general purpose finishing.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Data to be displayed
30
45
60
  1. 1
Part Number
SPHR1/4
SPHR2.01
SPHR2.02
SPHR2.03
SPHR2.2
SPHR2.3
SPHR2.7
SPHR3.4
SPHR4.2
SPHR5
SPHR5.01
SPHR5.2
SPHR5.5
SPHR5.8
SPHR6.01
SPHR6.06
SPHR6.07
SPHR6.1
SPHR6.2
SPHR6.3
SPHR6.5
SPHR6.97
SPHR7
SPHR7.01
SPHR7.02
SPHR7.2
SPHR7.9
SPHR7.95
SPHR8.01
SPHR8.2
SPHR8.5
SPHR8.99
SPHR9.5
SPHR10.1
SPHR11
SPHR12.02
SPHR12.5
SPHR13
SPHR15
SPHR18
SPHR20.2
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Tool Diameter
(mm) 		Shank Type Groove Length
(mm) 		Diameter tolerance
(mm) 		Number of flutes
(Sheets) 		Full length L
(mm) 		Bite length T
(mm) 		shank diameter Center

42.13 €

1 Available 6 Days 1/4Straight Shank500～+0.0056100101/460° Concave

69.59 €

1 6 Days 2.01End Mill Shank300～+0.0054606360° Convex

69.59 €

1 6 Days 2.02End Mill Shank300～+0.0054606360° Convex

69.59 €

1 Available 6 Days 2.03End Mill Shank300～+0.0054606360° Convex

40.65 €

1 Available 6 Days 2.2End Mill Shank30+0.002～+0.0074606360° Convex

40.65 €

1 Available 6 Days 2.3End Mill Shank35+0.002～+0.0074657360° Convex

58.00 €

1 6 Days 2.7End Mill Shank35+0.002～+0.0074657360° Convex

39.91 €

1 Available Same day

Stock

3.4Straight Shank40+0.004～+0.00967583.460° Concave

31.97 €

1 Available Same day

Stock

4.2Straight Shank45+0.004～+0.00968594.260° Concave

41.45 €

1 Available Same day

Stock

5Straight Shank45+0.004～+0.0096909560° Concave

48.05 €

1 Available 6 Days 5.01Straight Shank450～+0.00569095.0160° Concave

39.18 €

1 Available 6 Days 5.2Straight Shank45+0.004～+0.009695105.260° Concave

47.31 €

1 6 Days 5.5Straight Shank45+0.004～+0.009695105.560° Concave

48.19 €

1 6 Days 5.8Straight Shank50+0.004～+0.0096100105.860° Concave

59.79 €

1 Available 6 Days 6.01Straight Shank500～+0.0056100106.0160° Concave

42.30 €

1 Available 6 Days 6.06Straight Shank500～+0.0056100106.0660° Concave

42.30 €

1 Available 6 Days 6.07Straight Shank500～+0.0056100106.0760° Concave

48.19 €

1 10 Days 6.1Straight Shank50+0.006～+0.0126100106.160° Concave

32.70 €

1 Available 6 Days 6.2Straight Shank50+0.006～+0.0126100106.260° Concave

39.48 €

1 6 Days 6.3Straight Shank50+0.006～+0.0126100106.360° Concave

48.19 €

1 6 Days 6.5Straight Shank50+0.006～+0.0126100106.560° Concave

42.36 €

1 Available 6 Days 6.97Straight Shank550～+0.0056105116.9760° Concave

39.93 €

1 Available 6 Days 7Straight Shank55+0.006～+0.012610511760° Concave

48.28 €

1 Available Same day

Stock

7.01Straight Shank550～+0.0056105117.0160° Concave

46.56 €

1 Same day

Stock

7.02Straight Shank550～+0.0056105117.0260° Concave

45.83 €

1 6 Days 7.2Straight Shank55+0.006～+0.0126110117.260° Concave

54.44 €

1 Available 6 Days 7.9Straight Shank60+0.006～+0.0126115127.960° Concave

66.92 €

1 6 Days 7.95Straight Shank600～+0.0056115127.9560° Concave

76.72 €

1 Available 6 Days 8.01Straight Shank600～+0.0056115128.0160° Concave

49.53 €

1 Available 6 Days 8.2Straight Shank60+0.006～+0.0126120128.260° Concave

43.11 €

1 Available Same day

Stock

8.5Straight Shank60+0.006～+0.0126120128.560° Concave

76.72 €

1 Available 6 Days 8.99Straight Shank650～+0.0056125138.9960° Concave

48.60 €

1 Available 10 Days 9.5Straight Shank65+0.006～+0.0126125139.560° Concave

80.30 €

1 Available 6 Days 10.1Straight Shank70+0.007～+0.01561301410.160° Concave

80.30 €

1 Available 6 Days 11Straight Shank75+0.007～+0.0156140151160° Concave

126.66 €

1 6 Days 12.02Straight Shank750～+0.00561501512.0260° Concave

93.37 €

1 6 Days 12.5Straight Shank80+0.007～+0.01561551612.560° Concave

100.79 €

1 Available 6 Days 13Straight Shank80+0.007～+0.0158160161360° Concave

102.72 €

1 10 Days 15Straight Shank90+0.007～+0.0158175181560° Concave

116.24 €

1 6 Days 18Straight Shank105+0.007～+0.0158200211860° Concave

169.22 €

1 6 Days 20.2Straight Shank120+0.008～+0.01782302420.260° Concave

Loading...

  1. 1


Basic information

work material General Steel / Cast Iron / Aluminum / Copper / Die Steel / Alloy Steel Coating Y/N N/A Groove Shape Spiral
Base Blade Y/N N/A blade shape Right blade left torsion Torsional Angle 12°
Shank diameter tolerance -0.02～-0.05 Tool Material Type High-speed steel
