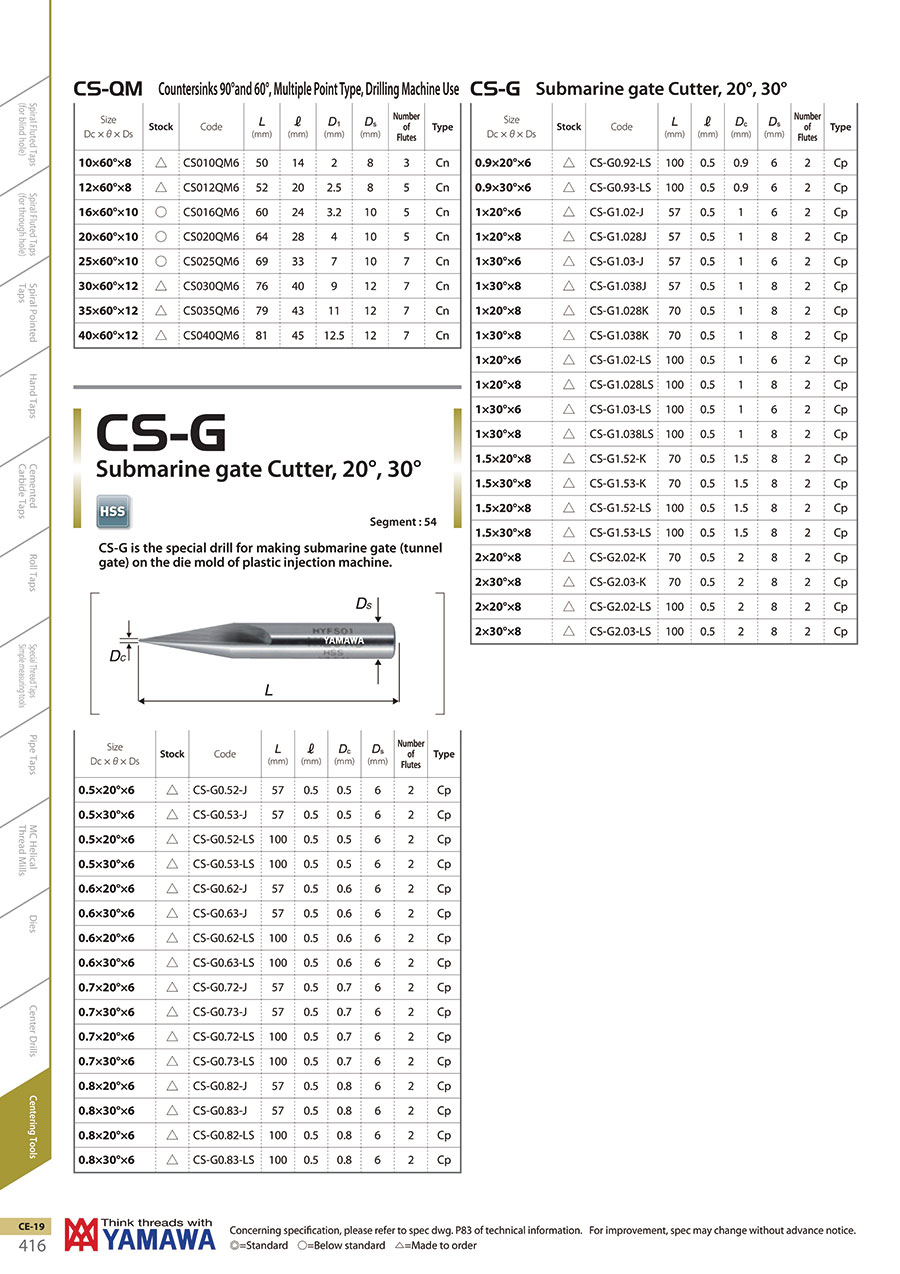

Cutter for Submarine Gate 20°30° CS-G
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tip angle (θ) | Tool Diameter (D) (mm) | Nominal | Overall Length L (mm) | Dc (mm) | |
|---|---|---|---|---|---|---|---|---|---|
53.97 € | 1 | Available | 9 Days | 20 | 6 | 0.5X20°X6 | 57 | 0.5 | |
69.20 € | 1 | Available | 9 Days | 20 | 6 | 0.5X20°X6 | 100 | 0.5 | |
49.80 € | 1 | Available | 8 Days | 30 | 6 | 0.5X30°X6 | 57 | 0.5 | |
69.20 € | 1 | Available | 9 Days | 30 | 6 | 0.5X30°X6 | 100 | 0.5 | |
45.70 € | 1 | Available | 9 Days | 20 | 6 | 0.6X20°X6 | 57 | 0.6 | |
54.37 € | 1 | Available | 8 Days | 20 | 6 | 0.6X20°X6 | 100 | 0.6 | |
42.20 € | 1 | Available | 8 Days | 30 | 6 | 0.6X30°X6 | 57 | 0.6 | |
54.37 € | 1 | Available | 8 Days | 30 | 6 | 0.6X30°X6 | 100 | 0.6 | |
41.92 € | 1 | Available | 9 Days | 20 | 6 | 0.7X20°X6 | 57 | 0.7 | |
49.80 € | 1 | Available | 8 Days | 20 | 6 | 0.7X20°X6 | 100 | 0.7 | |
38.70 € | 1 | Available | 8 Days | 30 | 6 | 0.7X30°X6 | 57 | 0.7 | |
49.80 € | 1 | Available | 8 Days | 30 | 6 | 0.7X30°X6 | 100 | 0.7 | |
36.15 € | 1 | Available | 8 Days | 20 | 6 | 0.8X20°X6 | 57 | 0.8 | |
46.58 € | 1 | Available | 8 Days | 20 | 6 | 0.8X20°X6 | 100 | 0.8 | |
36.15 € | 1 | Available | 8 Days | 30 | 6 | 0.8X30°X6 | 57 | 0.8 | |
46.58 € | 1 | Available | 8 Days | 30 | 6 | 0.8X30°X6 | 100 | 0.8 | |
41.52 € | 1 | Available | 7 Days | 20 | 6 | 0.9X20°X6 | 100 | 0.9 | |
41.52 € | 1 | Available | 8 Days | 30 | 6 | 0.9X30°X6 | 100 | 0.9 | |
28.46 € | 1 | 8 Days | 20 | 6 | 1X20°X6 | 57 | 1 | ||
39.90 € | 1 | Available | 9 Days | 20 | 6 | 1X20°X6 | 100 | 1 | |
28.46 € | 1 | 6 Days | 30 | 6 | 1X30°X6 | 57 | 1 | ||
39.90 € | 1 | Available | 9 Days | 30 | 6 | 1X30°X8 | 100 | 1 | |
32.46 € | 1 | Available | 8 Days | 20 | 8 | 1X20°X8 | 57 | 1 | |
36.15 € | 1 | Available | 8 Days | 20 | 8 | 1X20°X8 | 70 | 1 | |
46.58 € | 1 | Available | 8 Days | 20 | 8 | 1X20°X8 | 100 | 1 | |
32.46 € | 1 | 6 Days | 30 | 8 | 1X30°X8 | 57 | 1 | ||
36.15 € | 1 | Available | 8 Days | 30 | 8 | 1X30°X8 | 70 | 1 | |
46.58 € | 1 | Available | 8 Days | 30 | 8 | 1X30°X8 | 100 | 1 | |
36.15 € | 1 | Available | 8 Days | 20 | 8 | 1.5X20°X8 | 70 | 1.5 | |
46.58 € | 1 | Available | 8 Days | 20 | 8 | 1.5X20°X8 | 100 | 1.5 | |
36.15 € | 1 | Available | 8 Days | 30 | 8 | 1.5X30°X8 | 70 | 1.5 | |
46.58 € | 1 | Available | 8 Days | 30 | 8 | 1.5X30°X8 | 100 | 1.5 | |
36.15 € | 1 | Available | 8 Days | 20 | 8 | 2X20°X8 | 70 | 2 | |
46.58 € | 1 | Available | 8 Days | 20 | 8 | 2X20°X8 | 100 | 2 | |
36.15 € | 1 | Available | 8 Days | 30 | 8 | 2X30°X8 | 70 | 2 | |
46.58 € | 1 | Available | 8 Days | 30 | 8 | 2X30°X8 | 100 | 2 |
Loading...
Basic information
| Application | Other | Single blade, two blades | Single blade | Peripheral Blade Y/N | N/A |
|---|---|---|---|---|---|
| Tool Material Type | High-speed steel | Coating Y/N | N/A | l(mm) | 0.5 |
| Number of flutes | 2 | Shape | Cp |
Configure
Basic Attributes
-
Tip angle (θ)
-
Tool Diameter (D)(mm)
-
Nominal
- 0.5X20°X6
- 0.5X30°X6
- 0.6X20°X6
- 0.6X30°X6
- 0.7X20°X6
- 0.7X30°X6
- 0.8X20°X6
- 0.8X30°X6
- 0.9X20°X6
- 0.9X30°X6
- 1X20°X6
- 1X20°X8
- 1X30°X6
- 1X30°X8
- 1.5X20°X8
- 1.5X30°X8
- 2X20°X8
- 2X30°X8
-
Overall Length L(mm)
-
Dc(mm)
-
Type
- CS-G
Filter by standard shipping days
-
- All
- 6 Days or Less
- 7 Days or Less
- 8 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
