Configure
- Pitch, Number of Threading(mm)
- 0.5
- 0.7
- 1
- 1.25
- 1.5
- Overall Length (L)(mm)
- 46
- 52
- 62
- 70
- 75
- Thread Length(mm)
- 5
- 7
- 11
- 12
- 13
- Length under neck(mm)
- 14
- 17
- 26
- Shank diameter (Ds)(mm)
- 4
- 5
- 6
- 6.2
- 7
- Shank square width (K)(mm)
- 3.2
- 4
- 4.5
- 5
- 5.5
- Shank square part length(mm)
- 6
- 7
- 8
- Type
- Est. shipping days
- All
- Within 8 working days

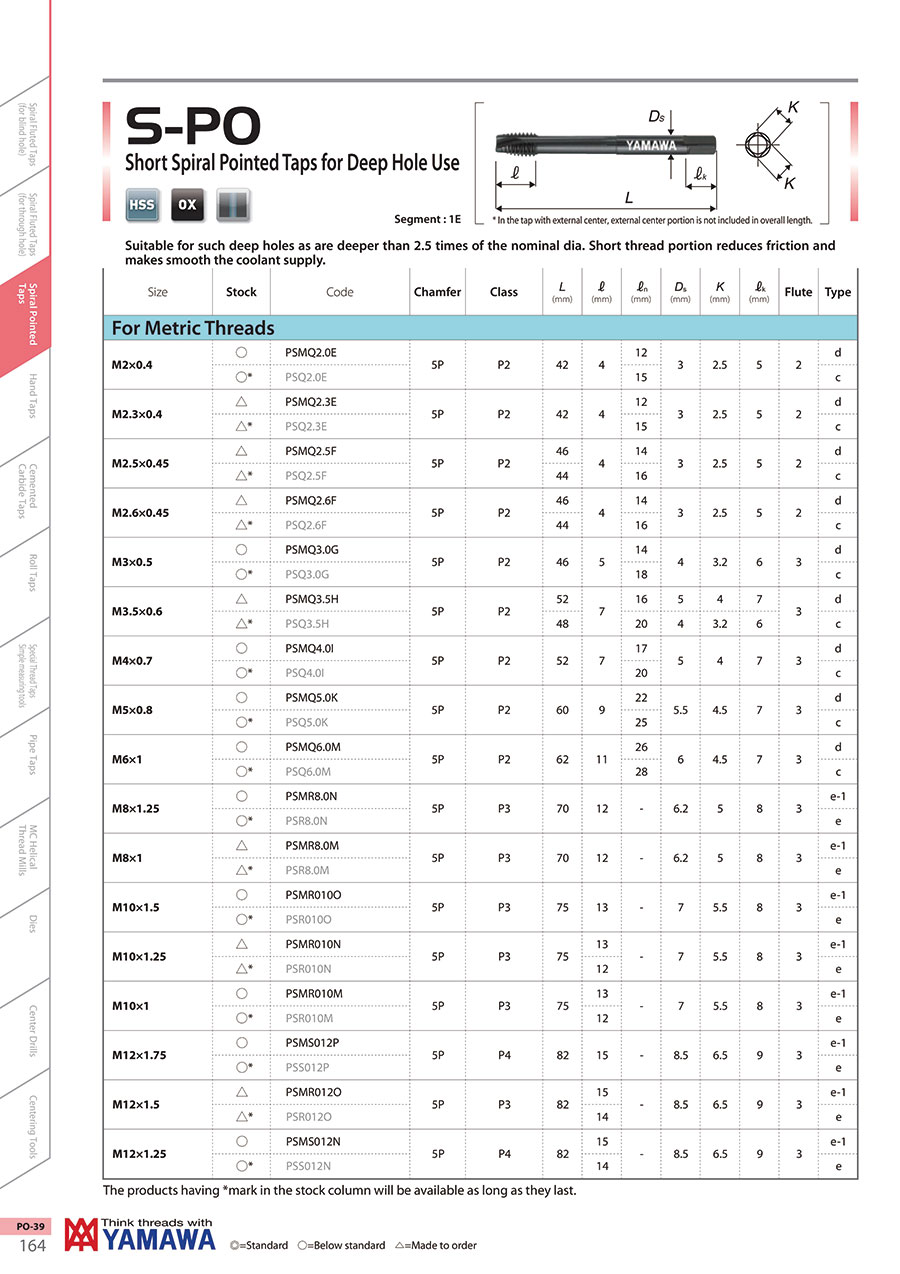

Short Point Tap for Deep Holes S-PO
Part number:
possible part numbers found.Part number list
Number of items
More Information
Basic information
A tap with short thread length effective for deep screw tapping of 2.5 times nominal diameter or more.
[Features]
· Short thread length gives low frictional resistance.
· Good supply of cutting oil is effective for deep thread machining to 2.5 times the nominal diameter or more.
· Oxide treatment (OX treatment) applied to prevent welding.
[Applications]
· Optimal for deep thread machining to 2.5 times the nominal diameter or more.
