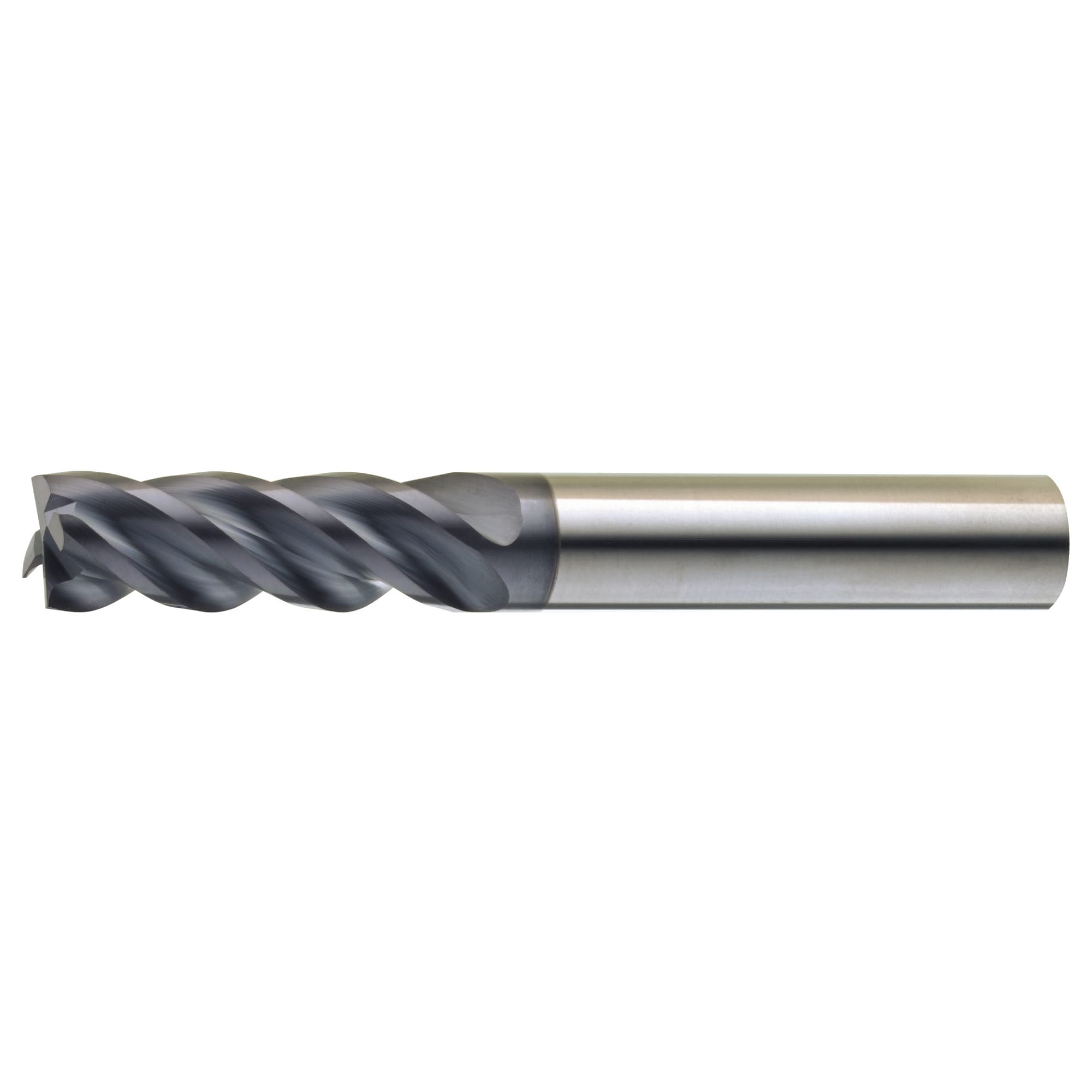

Carbide 4-Flute Variable Split Variable Lead End Mill 38° / 41° E141-3.0HX

Carbide 4-Flute Variable Split Variable Lead End Mill 38° / 41° E141-3.0HX

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount
[Features]
· 3.0D blade length type.
· 4-flute variable split and unequal lead reduce chatter, enabling high-efficiency cutting.
· The multilayer coating uses nanoparticles.
· Excellent lubricity and heat resistance.
· Suitable for a wide range of work materials from general steel to high hardness steel.
· Enables groove cutting (ap 0.5D to 1.0D) as is after machining in the Z axis direction (ap 0.5D to 1.0D).

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
E141-3.0HX-1
E141-3.0HX-1.5
E141-3.0HX-2
E141-3.0HX-2.5
E141-3.0HX-3
E141-3.0HX-3.5
E141-3.0HX-4
E141-3.0HX-4.5
E141-3.0HX-5
E141-3.0HX-5.5
E141-3.0HX-6
E141-3.0HX-8
E141-3.0HX-10
E141-3.0HX-12
E141-3.0HX-16
E141-3.0HX-20
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)

28.66 €

1 Available 6 Days 13450

28.66 €

1 Available 6 Days 1.54.5450

28.66 €

1 Available 6 Days 26450

28.66 €

1 Available 6 Days 2.57.5450

39.56 €

1 Available 6 Days 39650

39.56 €

1 Available 6 Days 3.510.5650

39.56 €

1 Available 6 Days 412650

39.56 €

1 Available 6 Days 4.513.5650

39.56 €

1 Available 10 Days 515650

39.56 €

1 Available 6 Days 5.516.5650

39.56 €

1 Available 6 Days 618650

68.58 €

1 Available 10 Days 824865

93.36 €

1 Available 6 Days 10301075

136.29 €

1 Available 6 Days 12361280

194.23 €

1 Available 6 Days 164816100

355.02 €

1 Available 6 Days 206020120

Loading...

  1. 1

Basic information

Work material General steel / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper / Resin Number of flutes(sheet) 4 Type Square
Machining Application Plane / Side / Groove / Inclined Cuts / Countersinking Blade tip shape With Lead Torsion Angle (θ) Standard Helix (30˚ to 40˚)
Coating Details AlTiCrN Blade diameter tolerance(mm) 0~-0.02 Torsion Angle details 38°/41°
Material MG
