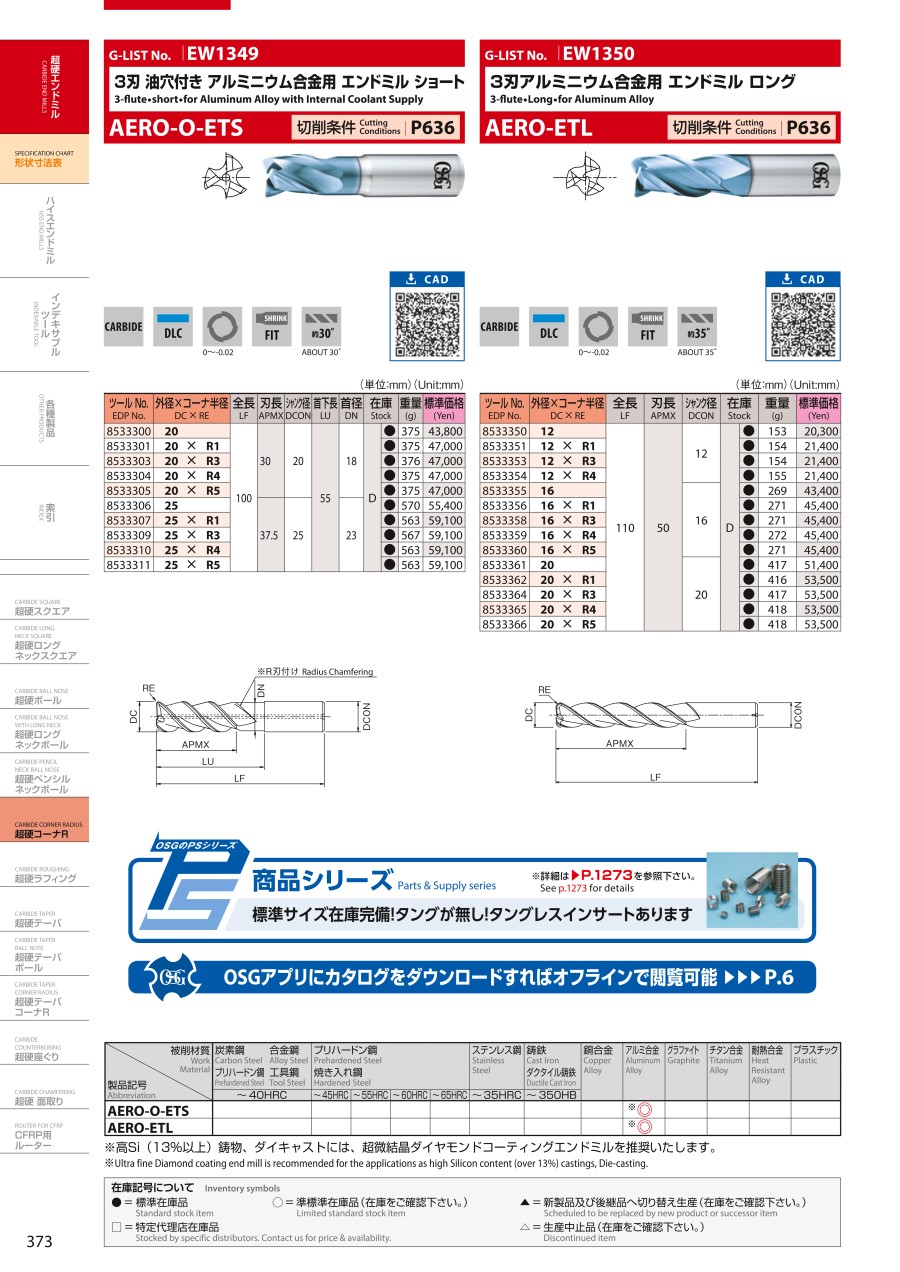

3-Flute Short End Mill With Oil Hole For Aluminum Alloys AERO-O-ETS
· For all types of machining from rough machining to finishing.
· Maximizes the performance of high-power output machinery.
· Ideal for high-efficiency machining of the large-type aluminum parts used in aircraft.
· Ideal for aluminum alloys
· DLC coating.
· The sharp edges provide excellent cutting performance. (Thin film thickness of 1 μm)
(i)Remark
- It is recommend to use an ultrafine crystal diamond-coated end mill for high Si (13% or higher) castings and diecast materials.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| AERO-O-ETS-20 |
| AERO-O-ETS-20XR1 |
| AERO-O-ETS-20XR3 |
| AERO-O-ETS-20XR4 |
| AERO-O-ETS-20XR5 |
| AERO-O-ETS-25 |
| AERO-O-ETS-25XR1 |
| AERO-O-ETS-25XR3 |
| AERO-O-ETS-25XR4 |
| AERO-O-ETS-25XR5 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | R Size (mm) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Neck base diameter (mm) | Tool No. | |
|---|---|---|---|---|---|---|---|---|---|---|
226.02 € | 1 | 6 Days | 20 | - | 30 | 20 | 18 | 8533300 | ||
392.10 € | 1 | 6 Days | 20 | 1 | 30 | 20 | 18 | 8533301 | ||
392.10 € | 1 | 6 Days | 20 | 3 | 30 | 20 | 18 | 8533303 | ||
392.10 € | 1 | 6 Days | 20 | 4 | 30 | 20 | 18 | 8533304 | ||
392.10 € | 1 | 6 Days | 20 | 5 | 30 | 20 | 18 | 8533305 | ||
284.54 € | 1 | 6 Days | 25 | - | 37.5 | 25 | 23 | 8533306 | ||
494.80 € | 1 | 6 Days | 25 | 1 | 37.5 | 25 | 23 | 8533307 | ||
494.80 € | 1 | 6 Days | 25 | 3 | 37.5 | 25 | 23 | 8533309 | ||
494.80 € | 1 | 6 Days | 25 | 4 | 37.5 | 25 | 23 | 8533310 | ||
494.80 € | 1 | 6 Days | 25 | 5 | 37.5 | 25 | 23 | 8533311 |
Loading...
Basic information
| work material | Aluminum | Number of flutes(sheet) | 3 | Type | Radius |
|---|---|---|---|---|---|
| Overall Length (L)(mm) | 100 | Underneck length (ℓ1)(mm) | 55 | Coating | DLC |
| Torsion Angle (θ) | Standard Helix (30˚ to 40˚) | Allowable difference in blade diameter(mm) | 0 to -0.02 | Blade material | Carbide alloy |
| Application | Recommended for shrink fitting systems. |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Neck base diameter(mm)
-
Tool No.
-
Type
- AERO-O-ETS
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
