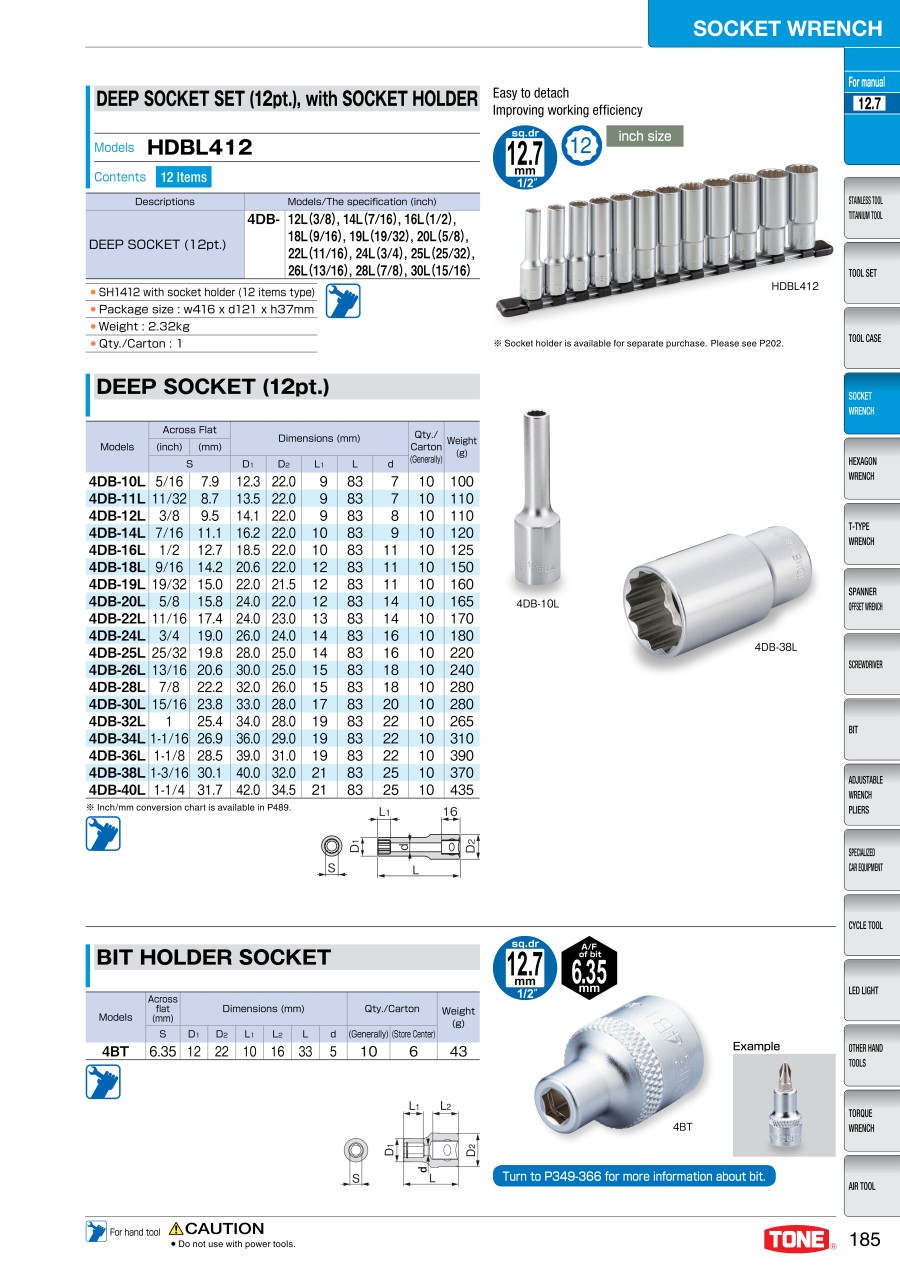

Bit Holder Socket 4BT
[Applications]
· For hand tools
· For hand tools
(i)Remark
- Please do not use this product for powered tools, such as an impact wrench.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
4BT
Basic information
| Single Product/Set Classification | Single Item Handle | Application | For handwork | Insertion Angle (Shaft measurement when electric drill) (mm) | 12.7 |
|---|---|---|---|---|---|
| Socket shape | 12 Sq. | Overall length (L dimension)(mm) | 33 | Width across flat part external diameter (measurement D1)(mm) | 12 |
| Maximum Outer Diameter (D1 or D2 Dimensions)(mm) | 22 | Width across flat part depth (measurement L1)(mm) | 10 | Through Hole I.D. (d Dimension)(mm) | 5 |
| Mass(g) | 43 |
This page is Bit Holder Socket 4BT, part number 4BT.
You can find the detail information about specifications and dimensions on part number 4BT.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
