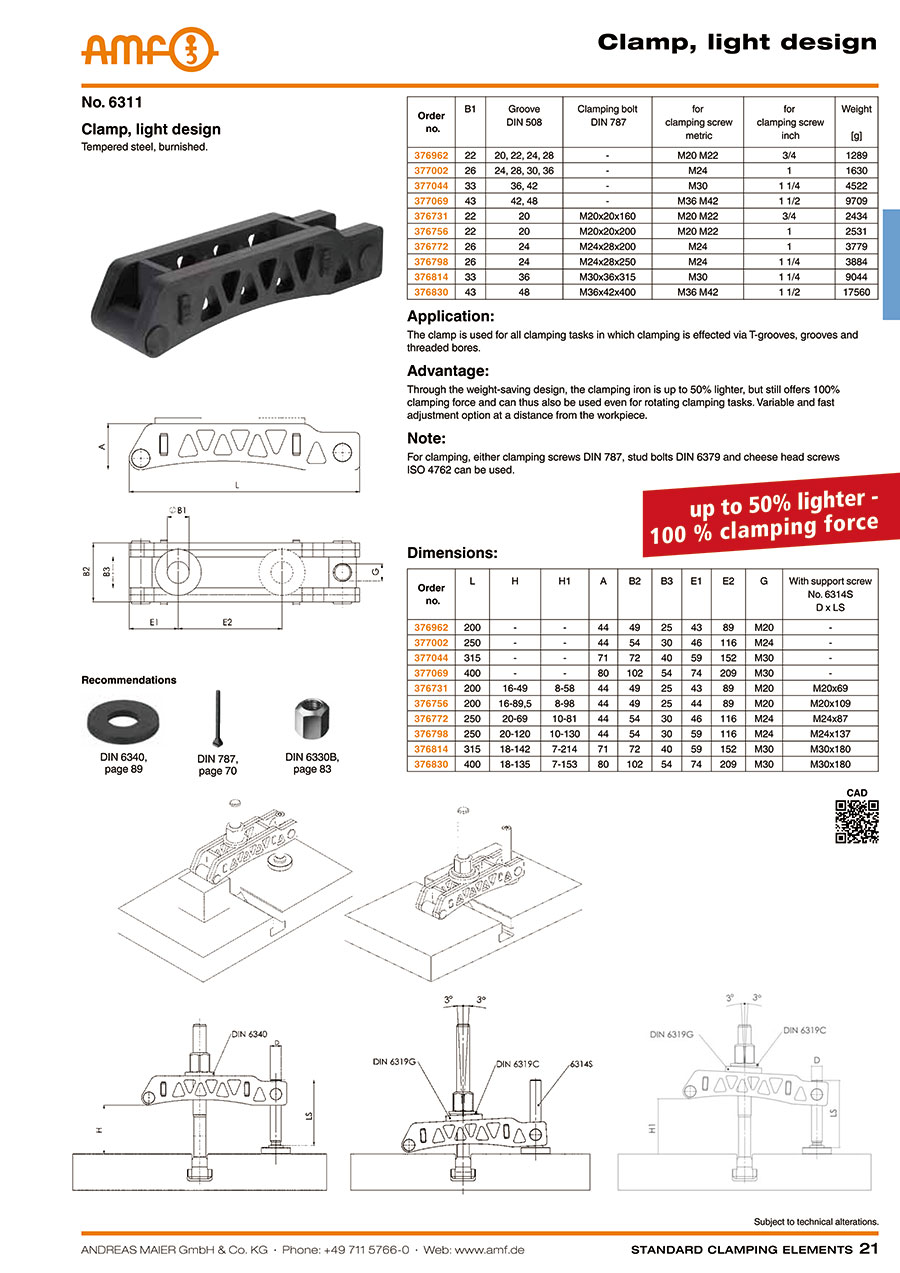

6311 clamp, light design
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 376731 |
| 376756 |
| 376772 |
| 376798 |
| 376814 |
| 376830 |
| 376962 |
| 377002 |
| 377044 |
| 377069 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | B1 | Clamping screw | For clamping screw inch | For clamping screw metric | Groove: DIN 508 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
152.27 € | 1 | 5 Days | 10 | 22 | M20x20x160 | 3/4 | M20 M22 | 20 | 2434 | ||
156.44 € | 1 | 5 Days | 10 | 22 | M20x20x200 | 1 | M20 M22 | 20 | 2531 | ||
170.77 € | 1 | 5 Days | 10 | 26 | M24x28x200 | 1 | M24 | 24 | 3779 | ||
194.66 € | 1 | 5 Days | 10 | 26 | M24x28x250 | 1 1/4 | M24 | 24 | 3884 | ||
337.96 € | 1 | 5 Days | 10 | 33 | M30x36x315 | 1 1/4 | M30 | 36 | 9044 | ||
638.92 € | 1 | 5 Days | 10 | 43 | M36x42x400 | 1 1/2 | M36 M42 | 48 | 17560 | ||
92.56 € | 1 | 5 Days | 10 | 22 | - | 3/4 | M20 M22 | 20, 22, 24, 28 | 1289 | ||
98.52 € | 1 | 5 Days | 10 | 26 | - | 1 | M24 | 24, 28, 30, 36 | 1630 | ||
142.71 € | 1 | 5 Days | 10 | 33 | - | 1 1/4 | M30 | 36, 42 | 4522 | ||
246.61 € | 1 | 5 Days | 10 | 43 | - | 1 1/2 | M36 M42 | 42, 48 | 9709 |
Loading...
Configure
Basic Attributes
-
B1
-
Clamping screw
-
For clamping screw inch
-
For clamping screw metric
-
Groove: DIN 508
- 20
- 20, 22, 24, 28
- 24
- 24, 28, 30, 36
- 36
- 36, 42
- 42, 48
- 48
-
Type
- 376
- 377
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
