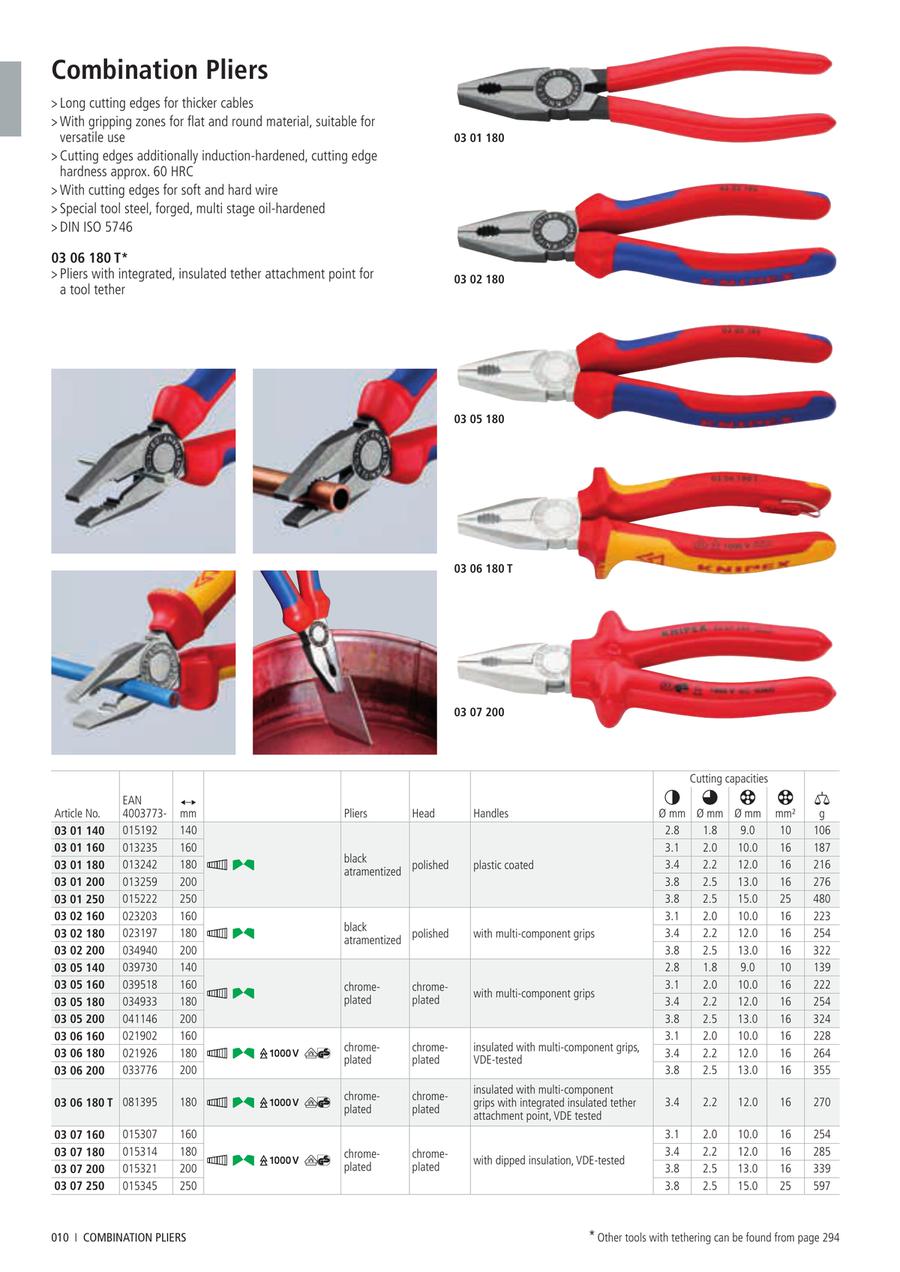

Combination Pliers with Gripping Zones / Tool steel / DIN ISO 5746
・Material: Tool steel
・Cutting hardness(HRC): 60
・Edge hardness(HRC): 60
・Standards: DIN ISO 5746
[Features]
・With gripping zones for flat and round material, suitable for versatile use
・With cutting edges for soft and hard wire
・Long cutting edges for thicker cables
・Special tool steel, forged, multi stage oil-hardened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 03 02 160 |
| 03 02 180 |
| 03 02 200 |
| 03 05 140 |
| 03 06 160 |
| 03 06 200 |
| 03 07 160 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Overall Length (mm) | DIN standard | EN standard | Manufacturer part # | Material properties | Range of use (pliers) | Type | Weight (g) | Wire hardness (max.) (mm²) | Wire hardness (max.) hard wire (mm) | Wire hardness (max.) medium wire (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.53 € | 6 | 3 Days | 160 | DIN ISO 5746 | - | 03 02 160 | polishing|tempered | Workshop | 03 02 160 | 223 | Medium-hard/hard wire: 3.1 /2.0 mm diameter · MaxDiameter 16 | 2 | 3.1 | |||
16.81 € | 6 | 3 Days | 180 | DIN ISO 5746 | - | 03 02 180 | polishing|tempered | Workshop | 03 02 180 | 254 | Medium hard/hard wire: 3.4/2.2 mm dia. · Max 16 | 2.2 | 3.4 | |||
19.34 € | 6 | 3 Days | 200 | DIN ISO 5746 | - | 03 02 200 | polishing|tempered | Workshop | 03 02 200 | 322 | Medium-hard/hard wire: 3.8/2.5 mm dia. · · Dia. 16 | 2.5 | 3.8 | |||
20.03 € | 6 | 3 Days | 140 | DIN ISO 5746 | - | 03 05 140 | chrome plated|tempered | Workshop | 03 05 140 | 139 | Medium-hard/hard wire: 2.8/1.8 mm dia. · Max 10 | 1.8 | 2.8 | |||
22.89 € | 1 | 3 Days | 160 | DIN ISO 5746|DIN EN 60900 | EN 60900 | 03 06 160 | chrome plated|tempered | VDE | 03 06 160 | 228 | Medium-hard/hard wire: 3.1/2.0 mm dia. · MaxDia. 16 | 2 | 3.1 | |||
27.60 € | 1 | 3 Days | 200 | DIN ISO 5746|DIN EN 60900 | EN 60900 | 03 06 200 | chrome plated|tempered | VDE | 03 06 200 | 326 | Medium-hard/hard wire: 3.8/2.5 mm dia. · MaxDia. 16 | 2.5 | 3.8 | |||
29.73 € | 1 | 9 Days | 160 | DIN ISO 5746|DIN EN 60900 | EN 60900 | 03 07 160 | chrome plated|tempered | VDE | 03 07 160 | 254 | Medium-hard/hard wire: 3.1/2.0 mm dia. · Max 16 | 2 | 3.1 |
Loading...
Basic information
| Cutting hardness(HRC) | 60 | Edge hardness(HRC) | 60 | Product type | Comb pliers |
|---|---|---|---|---|---|
| Standards | DIN ISO 5746 | Material | Tool steel |
Configure
Basic Attributes
-
Overall Length(mm)
-
DIN standard
-
EN standard
-
Manufacturer part #
-
Material properties
-
Range of use (pliers)
-
Type
-
Weight(g)
-
Wire hardness (max.)(mm²)
-
Wire hardness (max.) hard wire(mm)
-
Wire hardness (max.) medium wire(mm)
-
Type
Filter by standard shipping days
-
- All
- 3 Days or Less
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
