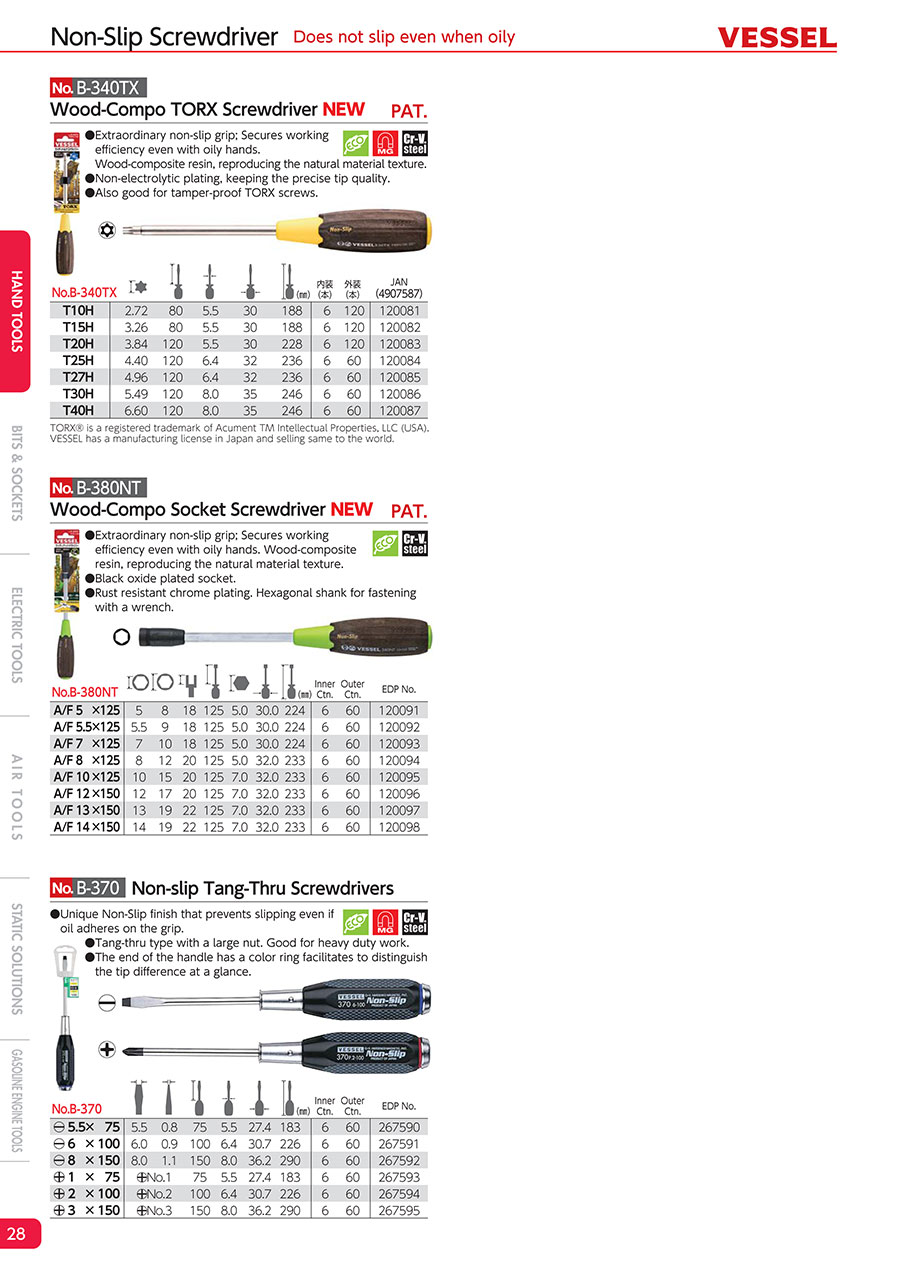

Wood-Compo TORX Screwdriver
· Wood-composite resin, reproducing the natural material texture.
· Non-electrolytic plating, keeping the precise tip quality.
· Also good for tamper-proof TORX screws.
· TORX is a registered trademark of Acument TM Intellectual Properties, LLC (USA).
· VESSEL has a manufacturing license in Japan and selling same to the world.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| B-340TX T10HX80 |
| B-340TX T15HX80 |
| B-340TX T20HX120 |
| B-340TX T25HX120 |
| B-340TX T27HX120 |
| B-340TX T30HX120 |
| B-340TX T40HX120 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tip Type Complement | Tip O/D (mm) | Shank LG (mm) | Shank O/D (mm) | Grip O/D (mm) | |
|---|---|---|---|---|---|---|---|---|---|
8.62 € | 6 | 7 Days | T10H | 2.72 | 80 | 5.5 | 30 | ||
8.62 € | 6 | 7 Days | T15H | 3.26 | 80 | 5.5 | 30 | ||
9.22 € | 6 | 7 Days | T20H | 3.84 | 120 | 5.5 | 30 | ||
10.10 € | 6 | 7 Days | T25H | 4.4 | 120 | 6.4 | 32 | ||
10.83 € | 6 | 7 Days | T27H | 4.96 | 120 | 6.4 | 32 | ||
14.06 € | 6 | 7 Days | T30H | 5.49 | 120 | 8 | 35 | ||
15.17 € | 6 | 7 Days | T40H | 6.6 | 120 | 8 | 35 |
Loading...
Basic information
| Screw | TORX | Type | Non-slip | Class | TX_H |
|---|---|---|---|---|---|
| Magnetized | MG |
Configure
Basic Attributes
-
Tip Type Complement
-
Tip O/D(mm)
-
Shank LG(mm)
-
Shank O/D(mm)
-
Grip O/D(mm)
-
Type
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
