Torque Screwdriver TorqueVario®-S ESD, Variably Adjustable Torque Limit
Meets your requirements: Variably adjustable torque covers a wide range of applications.
Increases your efficiency: The correct torque protects material from damage and means no follow-up work.
Protects your health: With the patented SoftFinish® handle design, ensuring work is kind to hands and muscles. Recommended by doctors and therapists at German Campaign for Healthier Backs.
Lowers your costs: Electrostatically conductive tools protect electronic components from damage.
Application: For controlled fastening at a specific torque on components susceptible to electrostatic discharge.
Extra: Delivered in practical plastic box, incl. factory calibration certificate.
Supplementary information: Precision in range of 0.1-0.46 Nm.
Accuracy: ±6%, tracing to national standards (see table for other tolerances).
Handle: Torque infinitely adjustable with Torque-Setter setting tool (also supplied).
Handle: Ergonomic multi-component handle, made of ESD-safe dissipative material.
Handle: Handle sizes proportioned to optimise torque setting.
Handle: Audible and perceptible click when the pre-set torque has been attained.
Handle: Surface resistance 10^6 - 10^9 ohms.
Handle: Compatible with all blades of the 2859.
Standards: IEC 61340-5-1.

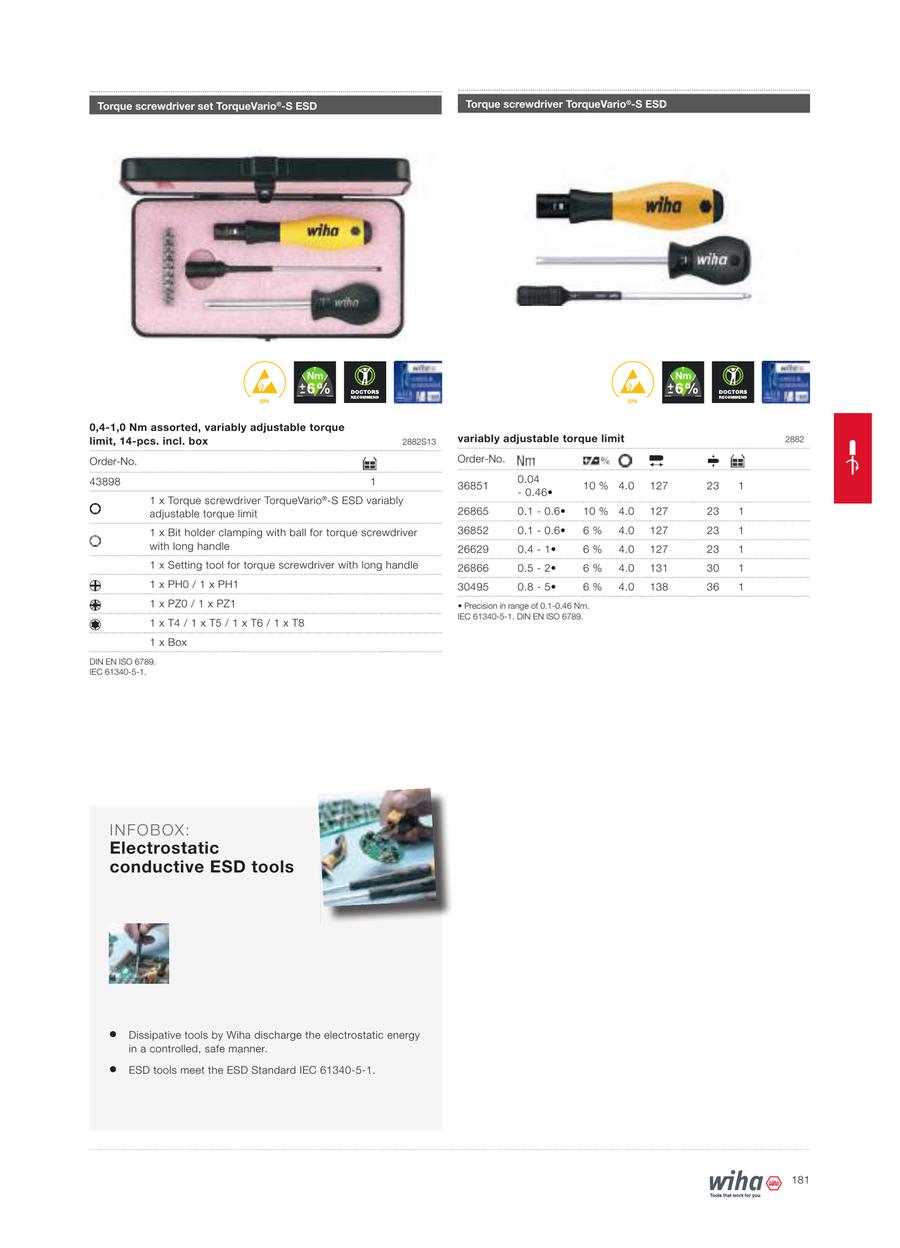

Users risk damaging electronic components irreparably when working on them. Such problems become a thing of the past with the TorqueVario®-S ESD torque screwdriver set. The ESD torque screwdriver is manufactured in line with the IEC 61340-5-1 international standard and thus guarantees maximum protection for electronic components. The dissipative tool handle has a surface resistance between 106 and 109 ohm and safely channels electrostatic energy away in a controlled fashion. The torque screwdriver also ensures controlled screw tightening. Thanks to its integrated numeric scale and the supplied adjusting tool, variable torque settings can be made, therefore covering a wide application field. A clearly audible and tactile signal is emitted when triggering the set torque value, guaranteeing process-safe work, protecting material and eliminating follow-up work. With a release accuracy of +/- 6%, the torque tool complies with EN ISO 6789 requirements. The set includes a bit holder for 1/4" bits. The ESD torque screwdriver is also compatible with 4 mm Wiha Torque interchangeable blades (series 2859). All tools in the set are safely stored neatly away in a robust, clearly organised box.
For applications in electronics
DIN EN ISO 6789.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 26629 |
| 26865 |
| 26866 |
| 30495 |
| 36851 |
| 36852 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle diameter (mm) | Torque range, min. (Nm) | Torque range, max. (Nm) | Torque range min - max (Nm) | Handle length (mm) | Tolerance (%) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
126.53 € | 1 | 3 Days | 23 | 0.4 | 1 | 0.4 - 1 | 127 | 6 | |||
126.53 € | 1 | 3 Days | 23 | 0.1 | 0.6 | 0.1 - 0.6 | 127 | 10 | |||
140.76 € | 1 | 3 Days | 30 | 0.5 | 2 | 0.5 - 2 | 131 | 6 | |||
146.97 € | 1 | 3 Days | 36 | 0.8 | 5 | 0.8 - 5 | 138 | 6 | |||
126.53 € | 1 | 3 Days | 23 | 0.04 | 0.46 | 0.04 - 0.46 | 127 | 10 | |||
165.23 € | 1 | 3 Days | 23 | 0.1 | 0.6 | 0.1 - 0.6 | 127 | 6 |
Loading...
Basic information
| ESD article | Yes | VDE article | No | Blister pack | No |
|---|---|---|---|---|---|
| with battery | No | Hexagon head(mm) | 4 |
