MAEDLER

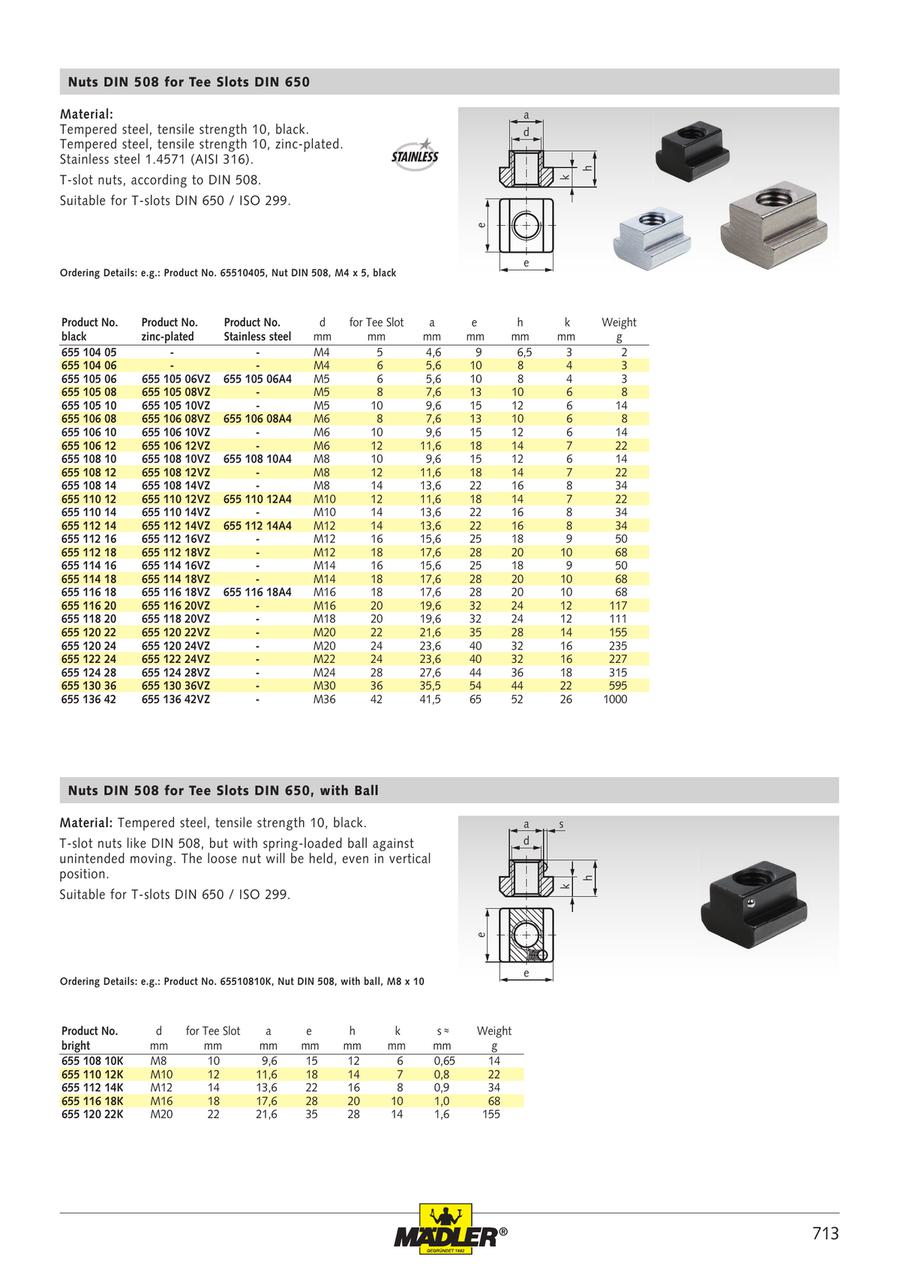

Nuts DIN 508 for Tee Slots DIN 650, with Ball

Nuts DIN 508 for Tee Slots DIN 650, with Ball

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    65510810K
    65511012K
    65511214K
    65511618K
    65512022K

    Thread size d

    (mm)

    For T-Slots DIN 650

    (mm)

    a

    (mm)

    e

    (mm)

    Height h

    (mm)

    k

    (mm)

    s≈

    (mm)

    Weight

    (g)

    		Minimum order quantity
    M 8
    10
    9.6
    15
    12
    6
    0.65
    14
    1 pieces
    M 10
    12
    11.6
    18
    14
    7
    0.8
    22
    1 pieces
    M 12
    14
    13.6
    22
    16
    8
    0.9
    34
    1 pieces
    M 16
    18
    17.6
    28
    20
    10
    1
    68
    1 pieces
    M 20
    22
    21.6
    35
    28
    14
    1.6
    155
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    5.86 €
    ( 6.97 € )
    4 working days
    4.73 €
    ( 5.63 € )
    4 working days
    6.75 €
    ( 8.03 € )
    4 working days
    8.65 €
    ( 10.29 € )
    4 working days
    10.13 €
    ( 12.05 € )
    4 working days
  • 1

    • More Information

    Basic information

    Material: Tempered steel, tensile strength 10, black.
    T-slot nuts according to the old standard DIN 508, but with spring-loaded ball against unintended moving. The loose nut will be held, even in vertical position.
    Suitable for T-slots DIN 650 / ISO 299.
