Outside Micrometer Interchangeable Anvil

Catalog

Part number:

Still undefined. 33 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Additional Spec

Flatness

(µm)

Flatness

(inch)

Graduation

(inch)

Graduation

(mm)

Inch-Metric

Interchangeable Anvils

Limit of Error

(µm)

Limit of Error

(inch)

Mass

(kg)

Parallelism

(inch)

Range

(inch)

Range

(mm)

Scale

Setting Standard

Spindle Feed Error

(inch)

Parallelism

(μm)

Spindle Feed Error

(μm)

Measured force

(N)

Minimum order quantity

Data sheet	-	0.6	-	-	0.01	Metric	6	±6	-	1.35	-	-	0-150	Thimble and sleeve satin chrome finish, ø18 mm	5 (25, 50, 75, 100, 125 mm)	-	3	3	5-10	1 pieces
Data sheet	-	0.6	-	-	0.01	Metric	6	±8	-	2.65	-	-	150-300	Thimble and sleeve satin chrome finish, ø18 mm	6 (100, 125, 150, 175, 200, 225 mm)	-	5	3	5-10	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	5	-	±0.0003	1.35	0.00012	0 - 6	-	Thimble and sleeve satin chrome finish, ø18 mm	5 (1, 2, 3, 4, 5 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	6	-	±0.0004	2.65	0.0002	6-12	-	Thimble and sleeve satin chrome finish, ø18 mm	6 (6, 7, 8, 9, 10, 11 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	0.6	-	-	0.01	Metric	4	±6	-	0.79	-	-	0-100	Thimble and sleeve satin chrome finish, ø18 mm	3 (25, 50, 75 mm)	-	3	3	5-10	1 pieces
Data sheet	-	0.6	-	-	0.01	Metric	4	±7	-	1.38	-	-	100-200	Thimble and sleeve satin chrome finish, ø18 mm	4 (100, 125, 150, 175 mm)	-	4	3	5-10	1 pieces
Data sheet	-	0.6	-	-	0.01	Metric	4	±8	-	2.22	-	-	200-300	Thimble and sleeve satin chrome finish, ø18 mm	4 (200, 225, 250, 275 mm)	-	5	3	5-10	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±10	-	3.31	-	-	300-400	Thimble and sleeve satin chrome finish, ø21 mm	4 (300, 325, 350, 375 mm)	-	6	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±11	-	4.81	-	-	400-500	Thimble and sleeve satin chrome finish, ø21 mm	4 (400, 425, 450, 475 mm)	-	7	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±12	-	6.35	-	-	500-600	Thimble and sleeve satin chrome finish, ø21 mm	4 (500, 525, 550, 575 mm)	-	8	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±14	-	7.72	-	-	600-700	Thimble and sleeve satin chrome finish, ø21 mm	4 (600, 625, 650, 675 mm)	-	9	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±15	-	9.08	-	-	700-800	Thimble and sleeve satin chrome finish, ø21 mm	4 (700, 725, 750, 775 mm)	-	10	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±16	-	10.41	-	-	800-900	Thimble and sleeve satin chrome finish, ø21 mm	4 (800, 825, 850, 875 mm)	-	11	3	10-14	1 pieces
Data sheet	-	1	-	-	0.01	Metric	4	±18	-	11.78	-	-	900-1,000	Thimble and sleeve satin chrome finish, ø21 mm	4 (900, 925, 950, 975 mm)	-	12	3	10-14	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	3	-	±0003	0.79	0.00012	0 - 4	-	Thimble and sleeve satin chrome finish, ø18 mm	3 (1, 2, 3 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	4	-	±00035	1.38	0.00016	4-8	-	Thimble and sleeve satin chrome finish, ø18 mm	4 (4, 5, 6, 7 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	4	-	±0004	2.22	0.0002	8-12	-	Thimble and sleeve satin chrome finish, ø18 mm	4 (8, 9, 10, 11 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±0005	3.31	0.00024	12-16	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (12, 13, 14, 15 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±00055	4.805	0.00028	16 - 20	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (16, 17, 18, 19 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±0006	6.35	0.00032	20 - 24	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (20, 21, 22, 23 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±0007	7.715	0.00036	24 - 28	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (24, 25, 26, 27 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±00075	9.075	0.0004	28 - 32	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (28, 29, 30, 31 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±0008	10.405	0.00044	32 - 36	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (32, 33, 34, 35 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	4	-	±0009	11.78	0.00048	36 - 40	-	Thimble and sleeve satin chrome finish, ø21 mm	4 (36, 37, 38, 39 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	0.6	-	-	0.01	Metric	4	±6	-	1.35	-	-	50-150	Thimble and sleeve satin chrome finish, ø18 mm	5 (50, 75, 100, 125 mm)	-	3	3	5-10	1 pieces
Data sheet	-	-	0.000024	0.001	-	Inch	4	-	±0003	1.35	0.00012	2-6	-	Thimble and sleeve satin chrome finish, ø18 mm	4 (2, 3, 4, 5 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	-	-	0.000024	0.0001	-	Inch	1	-	±0.0002	0.32	0.00008	0 - 2	-	Thimble and sleeve satin chrome finish, ø18 mm	1 (1 inch)	0.00015	-	-	5-10	1 pieces
Data sheet	with Heat Insulating Plate	0.6	-	-	0.01	Metric	1	±5	-	0.32	-	-	0-50	Thimble and sleeve satin chrome finish, ø18 mm	1 (25 mm)	-	2	3	5-10	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	6	-	±0.0005	4.65	0.00024	12-18	-	Thimble and sleeve satin chrome finish, ø21 mm	6 (12, 13, 14, 15, 16, 17 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	6	-	±0.0006	6.52	0.00032	18 - 24	-	Thimble and sleeve satin chrome finish, ø21 mm	6 (18, 19, 20, 21, 22, 23 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	6	-	±0.0007	9.96	0.00036	24 - 30	-	Thimble and sleeve satin chrome finish, ø21 mm	6 (24, 25, 26, 27, 28, 29 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	6	-	±0.0008	11.88	0.00044	30 - 36	-	Thimble and sleeve satin chrome finish, ø21 mm	6 (30, 31, 32, 33, 34, 35 inch)	0.00015	-	-	10-14	1 pieces
Data sheet	-	-	0.00004	0.001	-	Inch	6	-	±0.00095	13.7	0.00048	36 - 42	-	Thimble and sleeve satin chrome finish, ø21 mm	6 (36, 37, 38, 39, 40, 41 inch)	0.00015	-	-	10-14	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

704.00 € ( 837.76 € )	5 working days
895.00 € ( 1,065.05 € )	5 working days
704.00 € ( 837.76 € )	5 working days
895.00 € ( 1,065.05 € )	5 working days
484.00 € ( 575.96 € )	60 working days
615.00 € ( 731.85 € )	5 working days
679.00 € ( 808.01 € )	5 working days
875.00 € ( 1,041.25 € )	5 working days
962.00 € ( 1,144.78 € )	5 working days
1,370.00 € ( 1,630.30 € )	5 working days
1,495.00 € ( 1,779.05 € )	5 working days
1,618.00 € ( 1,925.42 € )	5 working days
1,809.00 € ( 2,152.71 € )	5 working days
1,946.00 € ( 2,315.74 € )	5 working days
484.00 € ( 575.96 € )	5 working days
615.00 € ( 731.85 € )	5 working days
679.00 € ( 808.01 € )	5 working days
875.00 € ( 1,041.25 € )	60 working days
1,034.00 € ( 1,230.46 € )	5 working days
1,370.00 € ( 1,630.30 € )	60 working days
1,495.00 € ( 1,779.05 € )	60 working days
1,618.00 € ( 1,925.42 € )	5 working days
1,809.00 € ( 2,152.71 € )	60 working days
1,946.00 € ( 2,315.74 € )	60 working days
666.00 € ( 792.54 € )	5 working days
666.00 € ( 792.54 € )	60 working days
229.00 € ( 272.51 € )	5 working days
227.00 € ( 270.13 € )	5 working days
864.00 € ( 1,028.16 € )	60 working days
1,212.00 € ( 1,442.28 € )	60 working days
1,286.00 € ( 1,530.34 € )	5 working days
1,698.00 € ( 2,020.62 € )	60 working days
1,698.00 € ( 2,020.62 € )	60 working days

More Information

Basic information

Basic information

A Mitutoyo non-digital micrometer provided with easily interchangeable anvils to enable a wide measuring range from one instrument. A ratchet stop guarantees repeatable measurement.

Catalog

Products homepage

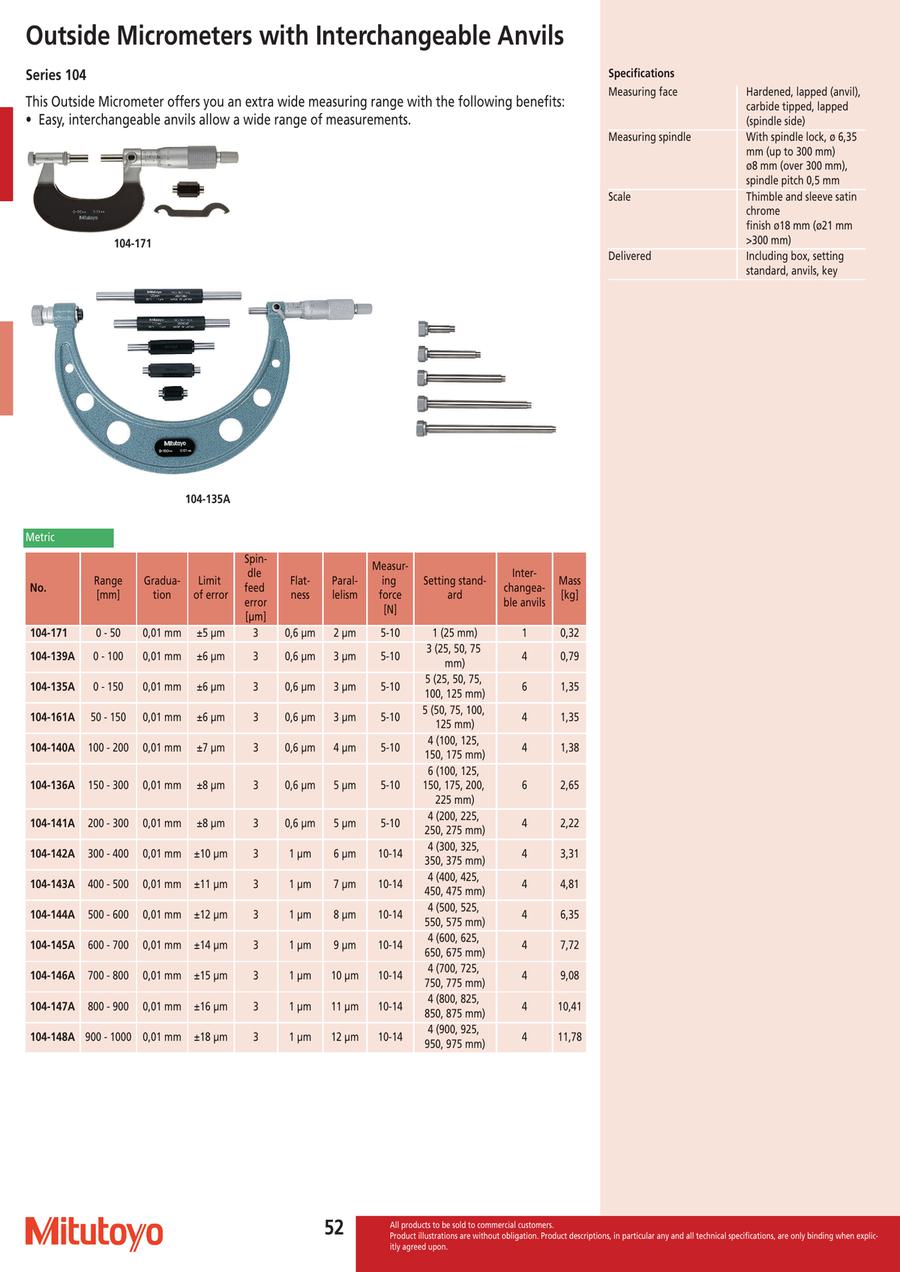

Catalog (2-page spread)
