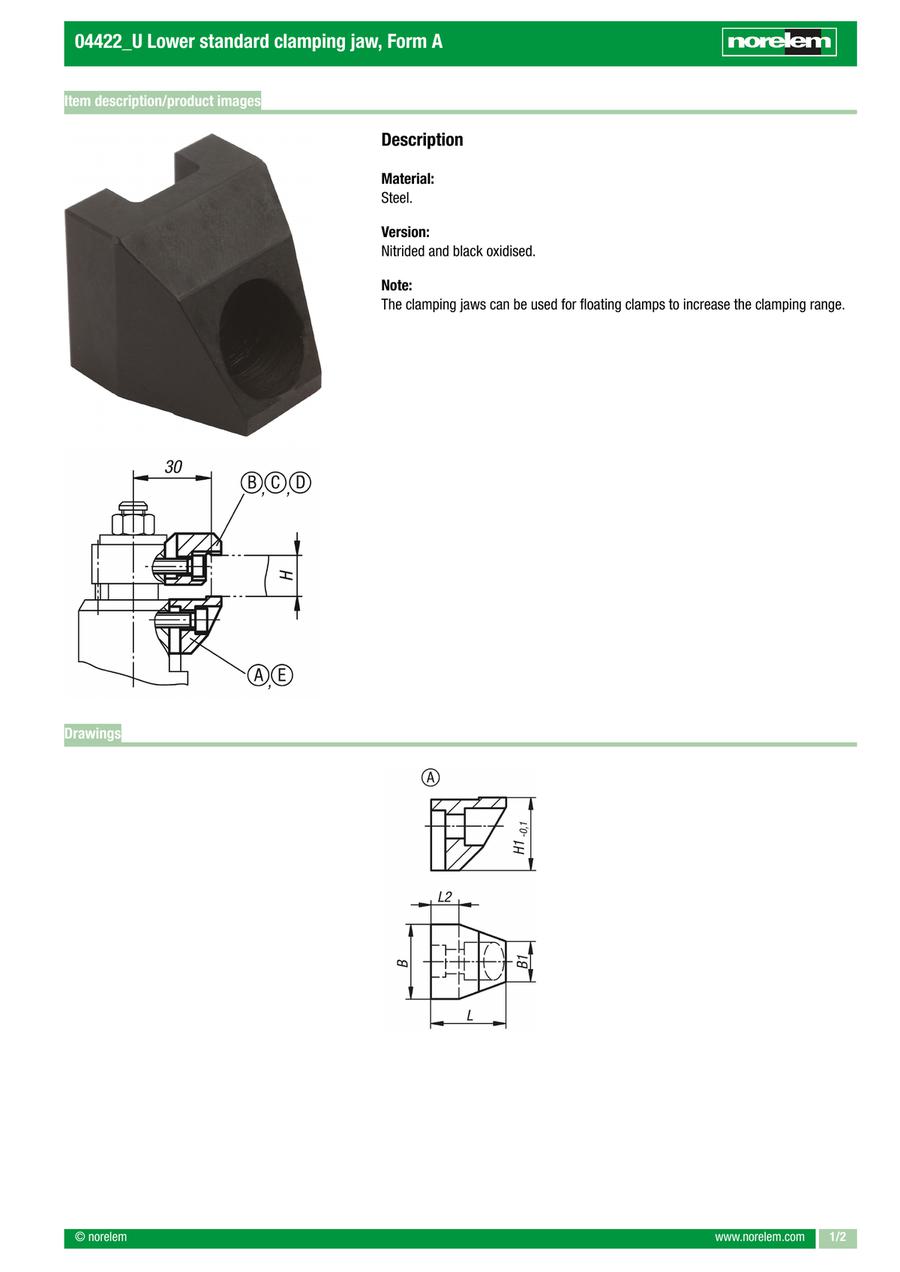

Jaw plate form A standard lower clamp jaw, mild steel (04422)
· Increases the clamping range of floating clamps
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
04422-90000
Basic information
| B(mm) | 28 | B1(mm) | 15 | Form | A |
|---|---|---|---|---|---|
| H1(mm) | 26.8 | Item | Jaw Plate | L(mm) | 28 |
| L2(mm) | 10 | Main material | mild steel | Version 1 | standard lower jaw |
| RoHS | yes | Weight (ERP)(kg) | 0.0825 |
This page is Jaw plate form A standard lower clamp jaw, mild steel (04422), part number 04422-90000.
You can find the detail information about specifications and dimensions on part number 04422-90000.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
