NORELEM

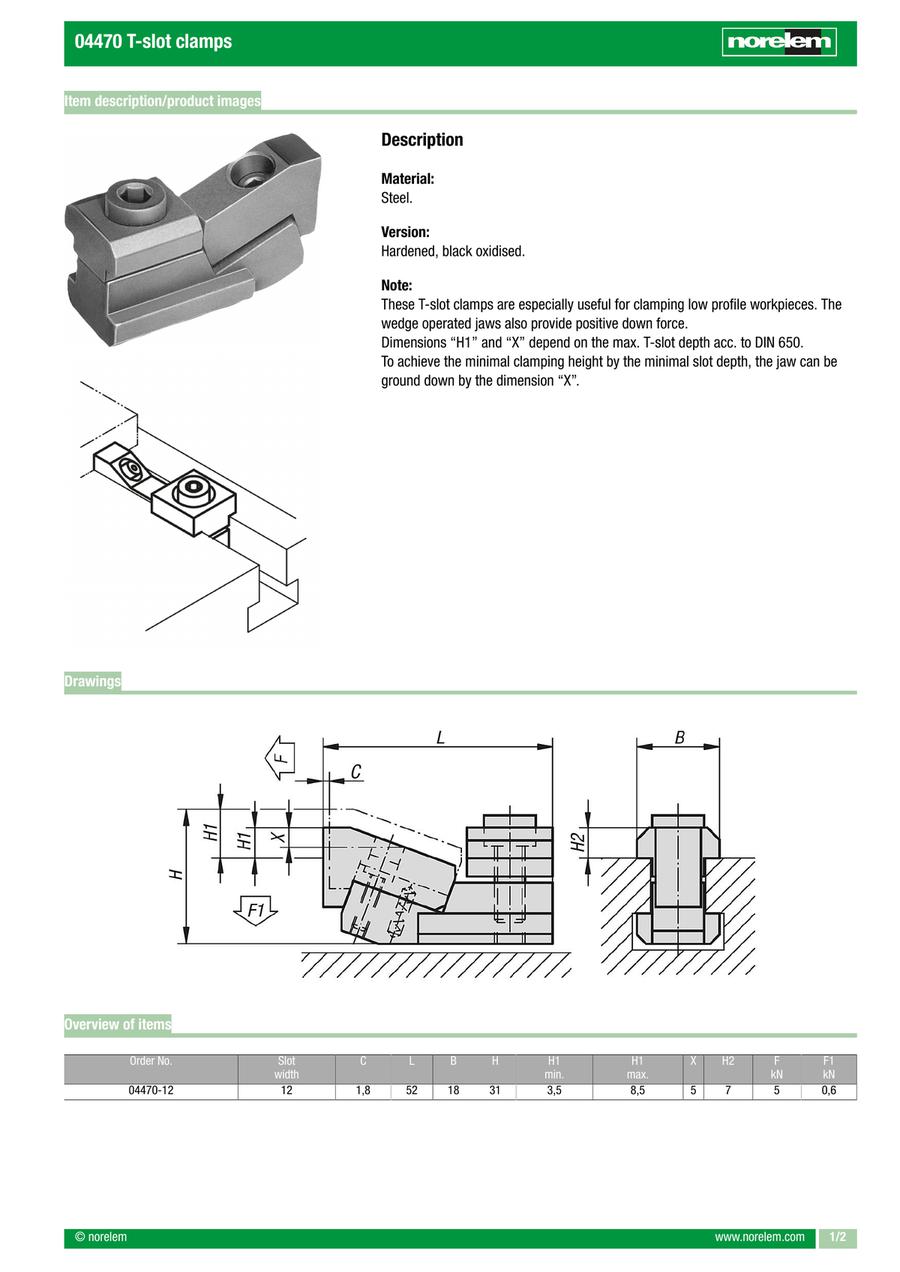

Flat clamp for T-slot, steel (04470-12, 04470-16, 04470-22)

Flat clamp for T-slot, steel (04470-12, 04470-16, 04470-22)

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04470-12
    04470-16
    04470-22

    B=Width

    (mm)

    BN=Slot width

    C

    F

    (kN)

    F1

    (kN)

    H=Height

    (mm)

    H1 max.

    (mm)

    H1 min.

    (mm)

    H2

    (mm)

    L=Length

    (mm)

    X

    (mm)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    18
    12
    1.8
    5
    0.6
    31
    8.5
    3.5
    7
    52
    5
    0.1401
    1 pieces
    25
    16
    2.5
    8
    0.9
    41
    11
    4
    9
    68
    6
    0.2637
    1 pieces
    35
    22
    3
    16
    1.9
    53
    14
    5
    14
    89
    9
    0.7400
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    64.60 €
    ( 76.87 € )
    4 working days
    82.59 €
    ( 98.28 € )
    4 working days
    137.88 €
    ( 164.08 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Workpiece clamping with positive down force

    · Ideal for flat workpieces

    · Body hardened
