Drawing punches / Bead breaking pin / lapped / DLC(Part number list: 8 page)

Configure

Tip shape
- 2A
- 2B
- 2C
- 3A
- 3C
- 3D
- 4A
- 4C
- 4D
- 5B
- 5C
- 5D
- 6B
- 6C
- 6D
- 7B
- 7C
- 7D
- 8C
- 9D
Surface treatment
- Without DLC foundation
- DLC foundation WPC
D (Shank diameter)(mm)
- 4
- 5
- 6
- 8
- 10
- 13
- 16
- 20
- 25
L (L dimension)(mm)
[40-100/10mm units]
A(°)
[1-89/1° units]
E(mm)
[1-2.96/0.01mm units]
[3.1-24.96/0.01mm units]
F(mm)
[10-98/0.1mm units]
K(°)
[1-90/1° units]
LC
[38-99.9/0.1]
P(mm)
[2-25/0.01mm units]
Q(mm)
- 0
[0.5-24.9/0.1mm units]
R(mm)
- 0
[0.1-15/0.1mm units]
[0.01-9.51/0.5mm units]
S(mm)
[1-20/0.1mm units]
V(mm)
[1-24.96/0.01mm units]
Type
CAD
- 2D
- 3D

Drawing punches / Bead breaking pin / lapped / DLC(Part number list: 8 page)

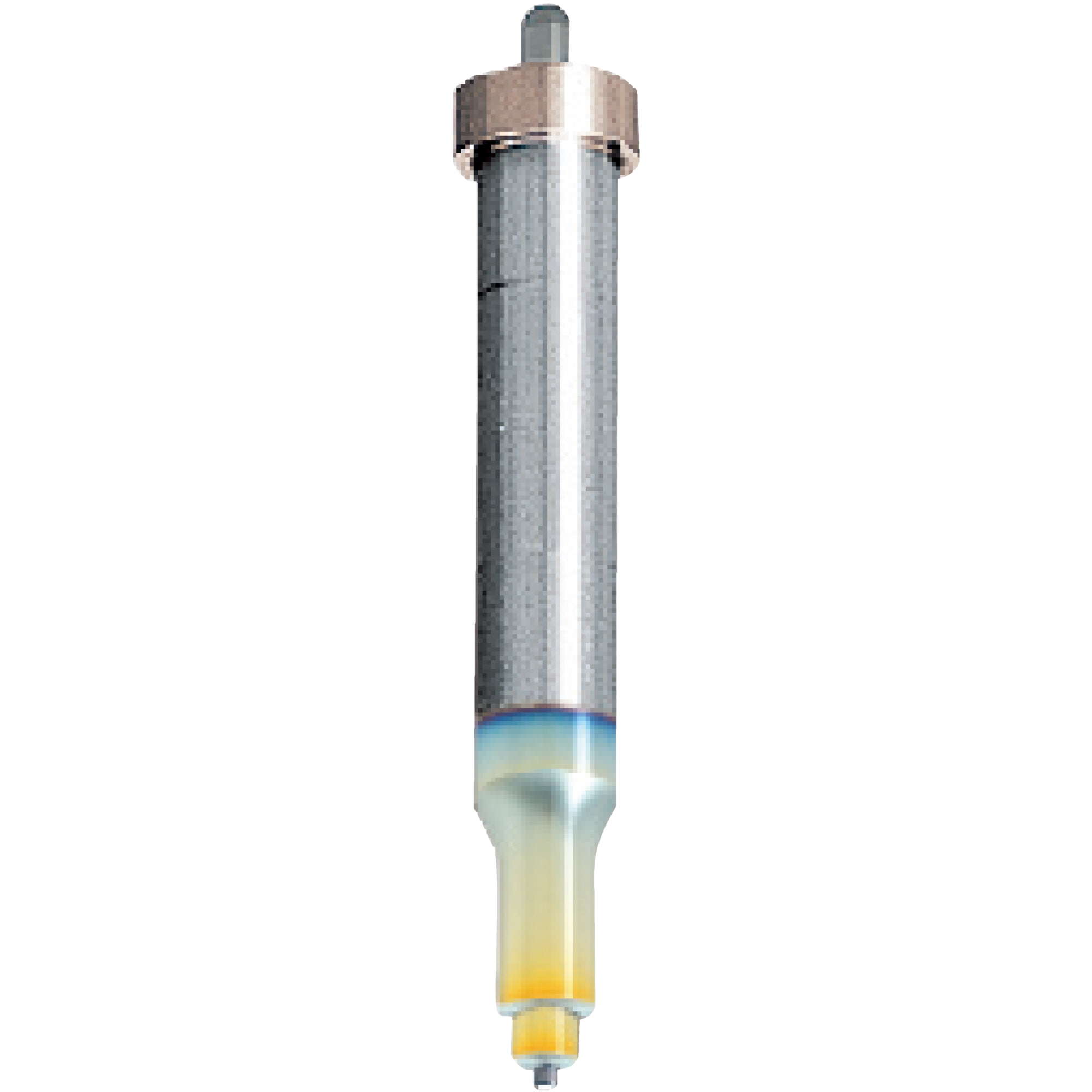

Mouse over image to enlarge

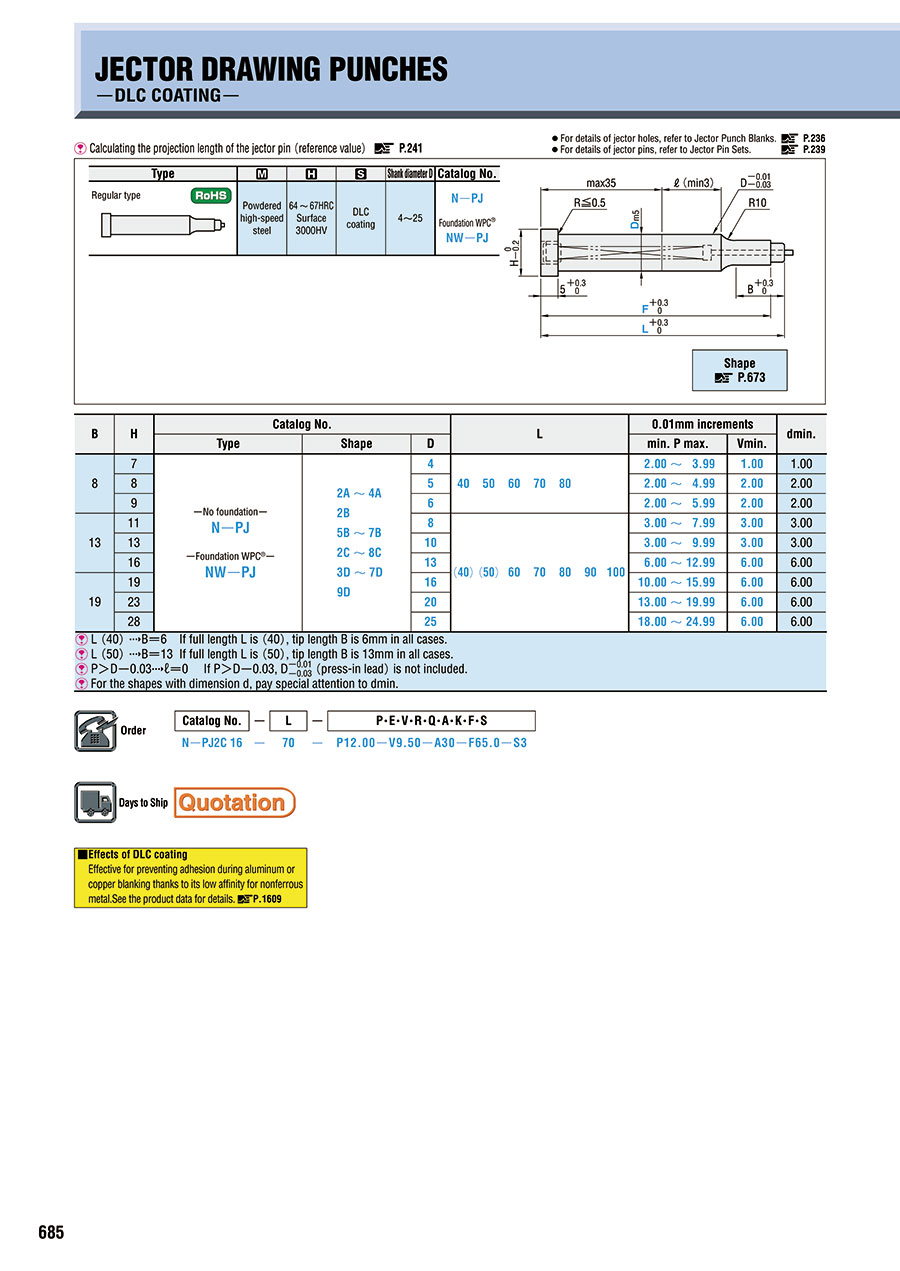

CatalogP.685

Part number:

Still undefined. 1,512 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

...

Part number

N-PJ6D4-LC[38-79.9/0.1]-P[2-4/0.01]-V[1-3.96/0.01]-R[0.5-1.9/0.1]-Q0-F[10-78/0.1]

N-PJ6D4-LC[38-79.9/0.1]-P[2-4/0.01]-V[1-3.96/0.01]-R[0.5-1.9/0.1]-Q[0.5-3.9/0.1]-F[10-78/0.1]

N-PJ6D5-[40-80/10]-P[2-5/0.01]-V[2-4.96/0.01]-R0-Q0-F[10-78/0.1]

N-PJ6D5-[40-80/10]-P[2-5/0.01]-V[2-4.96/0.01]-R0-Q[0.5-4.9/0.1]-F[10-78/0.1]

N-PJ6D5-[40-80/10]-P[2-5/0.01]-V[2-4.96/0.01]-R[0.5-2.4/0.1]-Q0-F[10-78/0.1]

N-PJ6D5-[40-80/10]-P[2-5/0.01]-V[2-4.96/0.01]-R[0.5-2.4/0.1]-Q[0.5-4.9/0.1]-F[10-78/0.1]

N-PJ6D5-LC[38-79.9/0.1]-P[2-5/0.01]-V[2-4.96/0.01]-R0-Q0-F[10-78/0.1]

N-PJ6D5-LC[38-79.9/0.1]-P[2-5/0.01]-V[2-4.96/0.01]-R0-Q[0.5-4.9/0.1]-F[10-78/0.1]

N-PJ6D5-LC[38-79.9/0.1]-P[2-5/0.01]-V[2-4.96/0.01]-R[0.5-2.4/0.1]-Q0-F[10-78/0.1]

N-PJ6D5-LC[38-79.9/0.1]-P[2-5/0.01]-V[2-4.96/0.01]-R[0.5-2.4/0.1]-Q[0.5-4.9/0.1]-F[10-78/0.1]

N-PJ6D6-[40-80/10]-P[2-6/0.01]-V[2-5.96/0.01]-R0-Q0-F[10-78/0.1]

N-PJ6D6-[40-80/10]-P[2-6/0.01]-V[2-5.96/0.01]-R0-Q[0.5-5.9/0.1]-F[10-78/0.1]

N-PJ6D6-[40-80/10]-P[2-6/0.01]-V[2-5.96/0.01]-R[0.5-2.9/0.1]-Q0-F[10-78/0.1]

N-PJ6D6-[40-80/10]-P[2-6/0.01]-V[2-5.96/0.01]-R[0.5-2.9/0.1]-Q[0.5-5.9/0.1]-F[10-78/0.1]

N-PJ6D6-LC[38-79.9/0.1]-P[2-6/0.01]-V[2-5.96/0.01]-R0-Q0-F[10-78/0.1]

N-PJ6D6-LC[38-79.9/0.1]-P[2-6/0.01]-V[2-5.96/0.01]-R0-Q[0.5-5.9/0.1]-F[10-78/0.1]

N-PJ6D6-LC[38-79.9/0.1]-P[2-6/0.01]-V[2-5.96/0.01]-R[0.5-2.9/0.1]-Q0-F[10-78/0.1]

N-PJ6D6-LC[38-79.9/0.1]-P[2-6/0.01]-V[2-5.96/0.01]-R[0.5-2.9/0.1]-Q[0.5-5.9/0.1]-F[10-78/0.1]

N-PJ6D8-[40-100/10]-P[3-8/0.01]-V[3-7.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D8-[40-100/10]-P[3-8/0.01]-V[3-7.96/0.01]-R0-Q[0.5-7.9/0.1]-F[10-98/0.1]

N-PJ6D8-[40-100/10]-P[3-8/0.01]-V[3-7.96/0.01]-R[0.5-3.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D8-[40-100/10]-P[3-8/0.01]-V[3-7.96/0.01]-R[0.5-3.9/0.1]-Q[0.5-7.9/0.1]-F[10-98/0.1]

N-PJ6D8-LC[38-98.9/0.1]-P[3-8/0.01]-V[3-7.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D8-LC[38-98.9/0.1]-P[3-8/0.01]-V[3-7.96/0.01]-R0-Q[0.5-7.9/0.1]-F[10-98/0.1]

N-PJ6D8-LC[38-98.9/0.1]-P[3-8/0.01]-V[3-7.96/0.01]-R[0.5-3.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D8-LC[38-98.9/0.1]-P[3-8/0.01]-V[3-7.96/0.01]-R[0.5-3.9/0.1]-Q[0.5-7.9/0.1]-F[10-98/0.1]

N-PJ6D10-[40-100/10]-P[3-10/0.01]-V[3-9.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D10-[40-100/10]-P[3-10/0.01]-V[3-9.96/0.01]-R0-Q[0.5-9.9/0.1]-F[10-98/0.1]

N-PJ6D10-[40-100/10]-P[3-10/0.01]-V[3-9.96/0.01]-R[0.5-4.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D10-[40-100/10]-P[3-10/0.01]-V[3-9.96/0.01]-R[0.5-4.9/0.1]-Q[0.5-9.9/0.1]-F[10-98/0.1]

N-PJ6D10-LC[38-98.9/0.1]-P[3-10/0.01]-V[3-9.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D10-LC[38-98.9/0.1]-P[3-10/0.01]-V[3-9.96/0.01]-R0-Q[0.5-9.9/0.1]-F[10-98/0.1]

N-PJ6D10-LC[38-98.9/0.1]-P[3-10/0.01]-V[3-9.96/0.01]-R[0.5-4.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D10-LC[38-98.9/0.1]-P[3-10/0.01]-V[3-9.96/0.01]-R[0.5-4.9/0.1]-Q[0.5-9.9/0.1]-F[10-98/0.1]

N-PJ6D13-[40-100/10]-P[6-13/0.01]-V[6-12.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D13-[40-100/10]-P[6-13/0.01]-V[6-12.96/0.01]-R0-Q[0.5-12.9/0.1]-F[10-98/0.1]

N-PJ6D13-[40-100/10]-P[6-13/0.01]-V[6-12.96/0.01]-R[0.5-6.4/0.1]-Q0-F[10-98/0.1]

N-PJ6D13-[40-100/10]-P[6-13/0.01]-V[6-12.96/0.01]-R[0.5-6.4/0.1]-Q[0.5-12.9/0.1]-F[10-98/0.1]

N-PJ6D13-LC[38-98.9/0.1]-P[6-13/0.01]-V[6-12.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D13-LC[38-98.9/0.1]-P[6-13/0.01]-V[6-12.96/0.01]-R0-Q[0.5-12.9/0.1]-F[10-98/0.1]

N-PJ6D13-LC[38-98.9/0.1]-P[6-13/0.01]-V[6-12.96/0.01]-R[0.5-6.4/0.1]-Q0-F[10-98/0.1]

N-PJ6D13-LC[38-98.9/0.1]-P[6-13/0.01]-V[6-12.96/0.01]-R[0.5-6.4/0.1]-Q[0.5-12.9/0.1]-F[10-98/0.1]

N-PJ6D16-[40-100/10]-P[10-16/0.01]-V[6-15.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D16-[40-100/10]-P[10-16/0.01]-V[6-15.96/0.01]-R0-Q[0.5-15.9/0.1]-F[10-98/0.1]

N-PJ6D16-[40-100/10]-P[10-16/0.01]-V[6-15.96/0.01]-R[0.5-7.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D16-[40-100/10]-P[10-16/0.01]-V[6-15.96/0.01]-R[0.5-7.9/0.1]-Q[0.5-15.9/0.1]-F[10-98/0.1]

N-PJ6D16-LC[38-98.9/0.1]-P[10-16/0.01]-V[6-15.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D16-LC[38-98.9/0.1]-P[10-16/0.01]-V[6-15.96/0.01]-R0-Q[0.5-15.9/0.1]-F[10-98/0.1]

N-PJ6D16-LC[38-98.9/0.1]-P[10-16/0.01]-V[6-15.96/0.01]-R[0.5-7.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D16-LC[38-98.9/0.1]-P[10-16/0.01]-V[6-15.96/0.01]-R[0.5-7.9/0.1]-Q[0.5-15.9/0.1]-F[10-98/0.1]

N-PJ6D20-[40-100/10]-P[13-20/0.01]-V[6-19.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D20-[40-100/10]-P[13-20/0.01]-V[6-19.96/0.01]-R0-Q[0.5-19.9/0.1]-F[10-98/0.1]

N-PJ6D20-[40-100/10]-P[13-20/0.01]-V[6-19.96/0.01]-R[0.5-9.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D20-[40-100/10]-P[13-20/0.01]-V[6-19.96/0.01]-R[0.5-9.9/0.1]-Q[0.5-19.9/0.1]-F[10-98/0.1]

N-PJ6D20-LC[38-98.9/0.1]-P[13-20/0.01]-V[6-19.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D20-LC[38-98.9/0.1]-P[13-20/0.01]-V[6-19.96/0.01]-R0-Q[0.5-19.9/0.1]-F[10-98/0.1]

N-PJ6D20-LC[38-98.9/0.1]-P[13-20/0.01]-V[6-19.96/0.01]-R[0.5-9.9/0.1]-Q0-F[10-98/0.1]

N-PJ6D20-LC[38-98.9/0.1]-P[13-20/0.01]-V[6-19.96/0.01]-R[0.5-9.9/0.1]-Q[0.5-19.9/0.1]-F[10-98/0.1]

N-PJ6D25-[40-100/10]-P[18-25/0.01]-V[6-24.96/0.01]-R0-Q0-F[10-98/0.1]

N-PJ6D25-[40-100/10]-P[18-25/0.01]-V[6-24.96/0.01]-R0-Q[0.5-24.9/0.1]-F[10-98/0.1]

Tip shape

Surface treatment

D (Shank diameter)

(mm)

L (L dimension)

(mm)

(°)

(mm)

(°)

(mm)

RoHS?

Minimum order quantity

6D	Without DLC foundation	4	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 4	0	0.5 ～ 1.9	-	1 ～ 3.96	10	1 pieces
6D	Without DLC foundation	4	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 4	0.5 ～ 3.9	0.5 ～ 1.9	-	1 ～ 3.96	10	1 pieces
6D	Without DLC foundation	5	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 5	0	0	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 5	0.5 ～ 4.9	0	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 5	0	0.5 ～ 2.4	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 5	0.5 ～ 4.9	0.5 ～ 2.4	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 5	0	0	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 5	0.5 ～ 4.9	0	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 5	0	0.5 ～ 2.4	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	5	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 5	0.5 ～ 4.9	0.5 ～ 2.4	-	2 ～ 4.96	10	1 pieces
6D	Without DLC foundation	6	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 6	0	0	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 6	0.5 ～ 5.9	0	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 6	0	0.5 ～ 2.9	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	40 ～ 80	-	-	10 ～ 78	-	-	2 ～ 6	0.5 ～ 5.9	0.5 ～ 2.9	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 6	0	0	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 6	0.5 ～ 5.9	0	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 6	0	0.5 ～ 2.9	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	6	-	-	-	10 ～ 78	-	38 ～ 79.9	2 ～ 6	0.5 ～ 5.9	0.5 ～ 2.9	-	2 ～ 5.96	10	1 pieces
6D	Without DLC foundation	8	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 8	0	0	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 8	0.5 ～ 7.9	0	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 8	0	0.5 ～ 3.9	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 8	0.5 ～ 7.9	0.5 ～ 3.9	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 8	0	0	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 8	0.5 ～ 7.9	0	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 8	0	0.5 ～ 3.9	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	8	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 8	0.5 ～ 7.9	0.5 ～ 3.9	-	3 ～ 7.96	10	1 pieces
6D	Without DLC foundation	10	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 10	0	0	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 10	0.5 ～ 9.9	0	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 10	0	0.5 ～ 4.9	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	40 ～ 100	-	-	10 ～ 98	-	-	3 ～ 10	0.5 ～ 9.9	0.5 ～ 4.9	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 10	0	0	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 10	0.5 ～ 9.9	0	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 10	0	0.5 ～ 4.9	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	10	-	-	-	10 ～ 98	-	38 ～ 98.9	3 ～ 10	0.5 ～ 9.9	0.5 ～ 4.9	-	3 ～ 9.96	10	1 pieces
6D	Without DLC foundation	13	40 ～ 100	-	-	10 ～ 98	-	-	6 ～ 13	0	0	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	40 ～ 100	-	-	10 ～ 98	-	-	6 ～ 13	0.5 ～ 12.9	0	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	40 ～ 100	-	-	10 ～ 98	-	-	6 ～ 13	0	0.5 ～ 6.4	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	40 ～ 100	-	-	10 ～ 98	-	-	6 ～ 13	0.5 ～ 12.9	0.5 ～ 6.4	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	-	-	-	10 ～ 98	-	38 ～ 98.9	6 ～ 13	0	0	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	-	-	-	10 ～ 98	-	38 ～ 98.9	6 ～ 13	0.5 ～ 12.9	0	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	-	-	-	10 ～ 98	-	38 ～ 98.9	6 ～ 13	0	0.5 ～ 6.4	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	13	-	-	-	10 ～ 98	-	38 ～ 98.9	6 ～ 13	0.5 ～ 12.9	0.5 ～ 6.4	-	6 ～ 12.96	10	1 pieces
6D	Without DLC foundation	16	40 ～ 100	-	-	10 ～ 98	-	-	10 ～ 16	0	0	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	40 ～ 100	-	-	10 ～ 98	-	-	10 ～ 16	0.5 ～ 15.9	0	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	40 ～ 100	-	-	10 ～ 98	-	-	10 ～ 16	0	0.5 ～ 7.9	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	40 ～ 100	-	-	10 ～ 98	-	-	10 ～ 16	0.5 ～ 15.9	0.5 ～ 7.9	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	-	-	-	10 ～ 98	-	38 ～ 98.9	10 ～ 16	0	0	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	-	-	-	10 ～ 98	-	38 ～ 98.9	10 ～ 16	0.5 ～ 15.9	0	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	-	-	-	10 ～ 98	-	38 ～ 98.9	10 ～ 16	0	0.5 ～ 7.9	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	16	-	-	-	10 ～ 98	-	38 ～ 98.9	10 ～ 16	0.5 ～ 15.9	0.5 ～ 7.9	-	6 ～ 15.96	10	1 pieces
6D	Without DLC foundation	20	40 ～ 100	-	-	10 ～ 98	-	-	13 ～ 20	0	0	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	40 ～ 100	-	-	10 ～ 98	-	-	13 ～ 20	0.5 ～ 19.9	0	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	40 ～ 100	-	-	10 ～ 98	-	-	13 ～ 20	0	0.5 ～ 9.9	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	40 ～ 100	-	-	10 ～ 98	-	-	13 ～ 20	0.5 ～ 19.9	0.5 ～ 9.9	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	-	-	-	10 ～ 98	-	38 ～ 98.9	13 ～ 20	0	0	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	-	-	-	10 ～ 98	-	38 ～ 98.9	13 ～ 20	0.5 ～ 19.9	0	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	-	-	-	10 ～ 98	-	38 ～ 98.9	13 ～ 20	0	0.5 ～ 9.9	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	20	-	-	-	10 ～ 98	-	38 ～ 98.9	13 ～ 20	0.5 ～ 19.9	0.5 ～ 9.9	-	6 ～ 19.96	10	1 pieces
6D	Without DLC foundation	25	40 ～ 100	-	-	10 ～ 98	-	-	18 ～ 25	0	0	-	6 ～ 24.96	10	1 pieces
6D	Without DLC foundation	25	40 ～ 100	-	-	10 ～ 98	-	-	18 ～ 25	0.5 ～ 24.9	0	-	6 ～ 24.96	10	1 pieces
