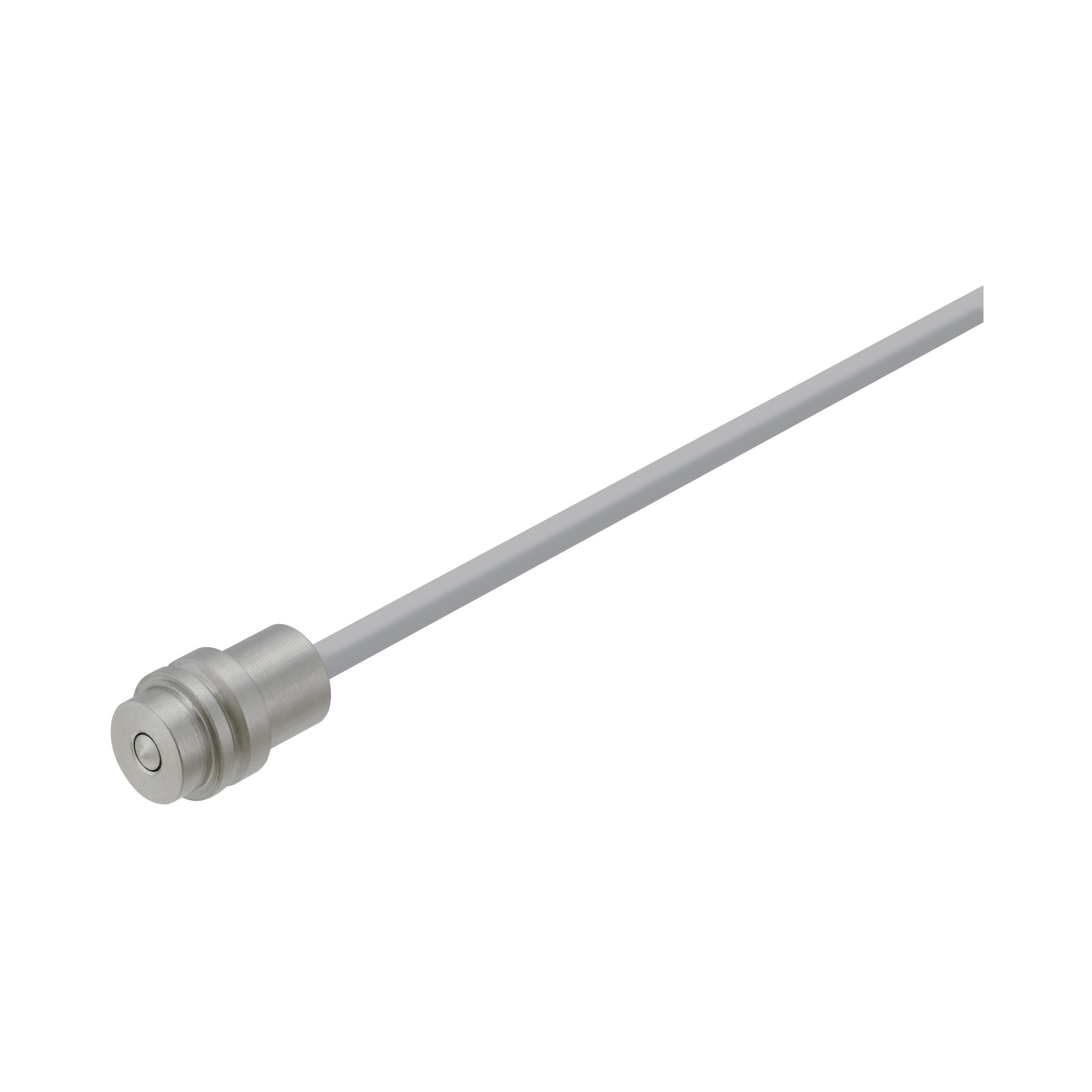

    Contact Switches with Stoppers / Cylinder with Flange / IP44

    Contact Switches with Stoppers / Cylinder with Flange / IP44

    Mouse over image to enlarge

    • Contact Switches with Stoppers / Cylinder with Flange / IP44
    • Contact Switches with Stoppers / Cylinder with Flange / IP44

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

    MSTF－S
    MSTF－SD    (With LED)

    Cable: Loose Wire (without SUMITUBE)
    2 Conductors - ø0.6,
    L 0.5 m Oil Resistant

    MSTF－L
    MSTF－LD    (With LED)

    Cable: Cab Tire
    2 Conductors - ø3, L 2 m, Oil Resistant
    Min. Bending Radius 7R

    Contact Switches With Stoppers - Mini, Drip-Proof, Flanged Standard: Related Image
    [M]Material Main Body: EN 1.4005 Equiv.(45HRC)
          Contact Part: EN 1.4029 Equiv.(50HRC)

    Specification Table

    Part Number
    MSTW−SD
    MSTF−L
    MSN−S
    MSNF−L
    MSPM−LD
    MSNW−L
    MSNWF−S
    Part NumberStrokeOperating PointContact ForceAllowable Static LoadShock Resistance
    Energy    		Contact Logic
    Type
    MSTW0.5Stroke
    Center Vicinity
    (Repeatability 0.01)    		0.8 N3000 N0.2JNO
    (Normally Open)
    MSTF
    MSN
    MSNF
    MSPM

    Part number list

    Number of items
  • 1
    • Part number
    MSTF-L
    MSTF-LD
    MSTF-S
    MSTF-SD

    LED

    Cable

    		RoHS?Minimum order quantity
    W/o LED
    Cabtyre
    10
    1 pieces
    With LED
    Cabtyre
    10
    1 pieces
    W/o LED
    Loose Wire
    10
    1 pieces
    With LED
    Loose Wire
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    31.24 €
    ( 37.18 € )
    5 working days
    44.45 €
    ( 52.90 € )
    5 working days
    29.47 €
    ( 35.07 € )
    5 working days
    42.19 €21.10 €
    ( 25.11 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] This is a pin-stroke type, spring plunger type, with a stopper.

    Outline and specifications

    Specifications/Overview


    (Common to "with LED" Type)
    " ! " Contact Method of Detected Subject (Common)



    Cable: Loose Wire (－SD) Cable: Cab Tire (－LD) ·Ball Contact Type
     Except (Declination within ±3°)     ·Ball Contact Type
     (All Orientations)     ·Use within the contact ratings.

    ·Do not pull or twist the loose wires with 15 N or more.
    Also do not pull or twist the cab tire cords with 30N or more.
    　

    [ ! ] Use under 24 V DC/10 mA or less. Contact Switches With Stoppers - Mini, Water-Proof, Flanged Standard: Related Image

    App. Example

    Set Screw
    (MSWF)    Double Nut Tightened
    (MSNW)    Screw-In
    (MSNWF)    ■Structure of Waterproof Type (IP67)
    Contact
    (Hardened Steel)    Contact Switches With Stoppers - Mini, Water-Proof, Flanged Standard: Related Image

    ·Use within the contact ratings.
    ·Do not pull or twist the loose wires with 15 N or more.
    Also do not pull or twist the cab tire cords with 30 N or more.
