6 Series (Groove Width 8 mm) - For 2-Row Grooves - Thick Bracket With Protrusion

• CatalogP.2-592

• Outline drawing and specifications table
• Part number list
• More Information

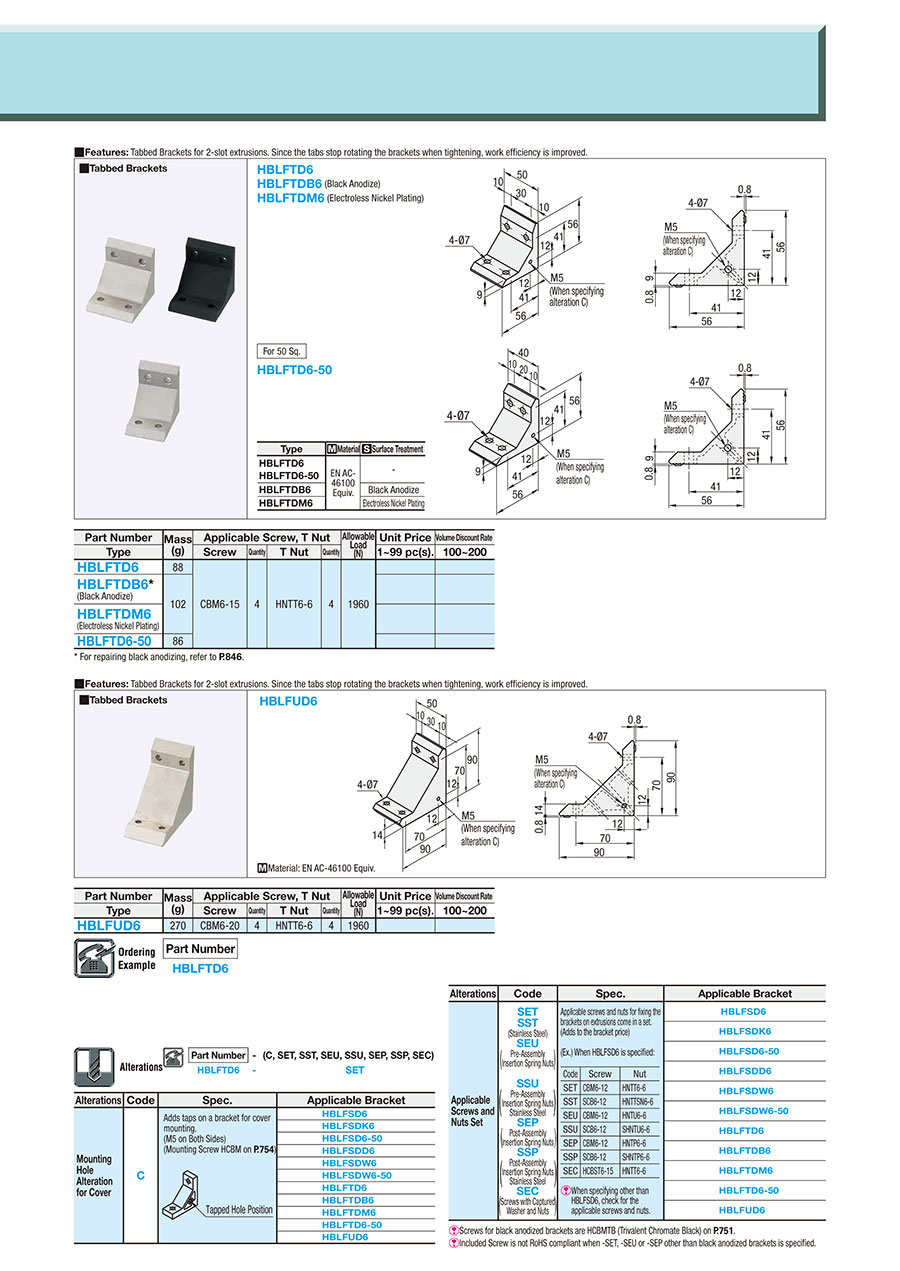

• Catalog

Outline drawing and specifications table

Material: EN AC-46100 Equiv.

Specifications

Part Number

HBLFTD6

Part Number	Mass (g)	Applicable Screw, T Nut				Allowable Load (N)	Unit Price	Volume Discount Rate
Type		Screw	Quantity	T Nut	Quantity		1~99 pc(s).	100~200
HBLFUD6	270	CBM6-20	4	HNTT6-6	4	1960

Alterations

Part number list

Number of items

30 items60 items90 items

1

Part number

HBLFUD6

HBLFUD6-C

HBLFUD6-C-SEC

HBLFUD6-C-SEP

HBLFUD6-C-SET

HBLFUD6-C-SEU

HBLFUD6-C-SSP

HBLFUD6-C-SST

HBLFUD6-C-SSU

HBLFUD6-SEC

HBLFUD6-SEP

HBLFUD6-SET

HBLFUD6-SEU

HBLFUD6-SSP

HBLFUD6-SST

HBLFUD6-SSU

Cover Mounting Hole Addition Work	Accessories	RoHS?	Minimum order quantity

Not Provided	Not Provided	10	1 pieces
C (Tap for Cover Mounting)	Not Provided	10	1 pieces
C (Tap for Cover Mounting)	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
C (Tap for Cover Mounting)	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
C (Tap for Cover Mounting)	SET (Screw, Nut Set)	-	1 pieces
C (Tap for Cover Mounting)	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
C (Tap for Cover Mounting)	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
C (Tap for Cover Mounting)	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
C (Tap for Cover Mounting)	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
Not Provided	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
Not Provided	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
Not Provided	SET (Screw, Nut Set)	-	1 pieces
Not Provided	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
Not Provided	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
Not Provided	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
Not Provided	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT) Sort by	Standard shipping days Sort by

5.28 € ( 6.28 € )	5 working days
6.55 € ( 7.79 € )	5 working days
10.02 € ( 11.92 € )	5 working days
9.47 € ( 11.27 € )	5 working days
8.82 € ( 10.50 € )	5 working days
9.47 € ( 11.27 € )	5 working days
9.83 € ( 11.70 € )	5 working days
8.82 € ( 10.50 € )	5 working days
10.98 € ( 13.07 € )	5 working days
8.77 € ( 10.44 € )	5 working days
8.22 € ( 9.78 € )	5 working days
7.56 € ( 9.00 € )	5 working days
8.22 € ( 9.78 € )	5 working days
8.57 € ( 10.20 € )	5 working days
7.56 € ( 9.00 € )	5 working days
9.72 € ( 11.57 € )	5 working days

1

More Information

• Basic information

Basic information

Thick shackles for 2-row grooves with a projection that prevents rotation.
