Angles / Welded / Configurable Type
Mouse over image to enlarge
Part number:
possible part numbers found.Outline drawing and specifications table

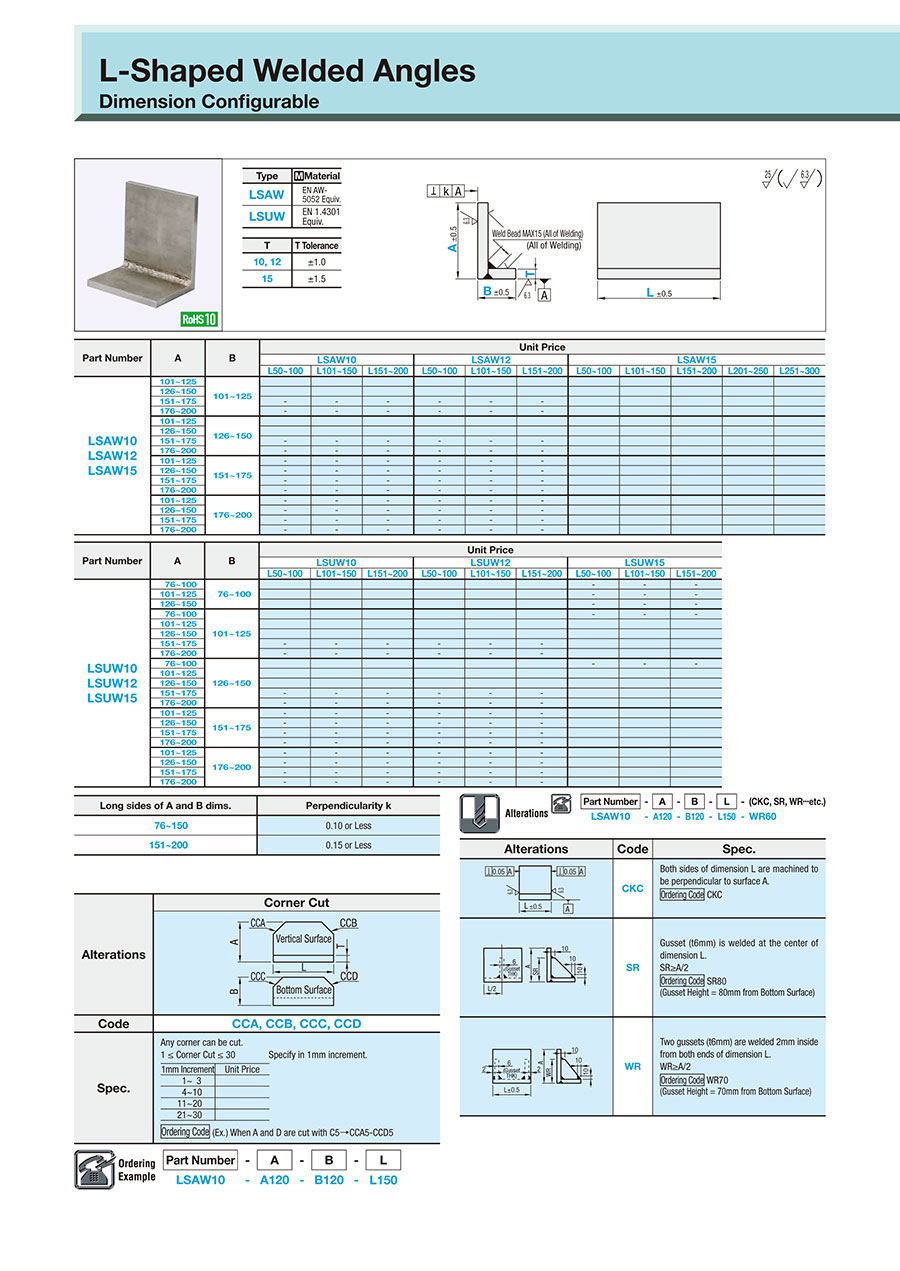

Dimensional Drawing
| Type | [M] Material |
| LSAW | EN AW−5052 Equiv. |
| LSUW | EN 1.4301 Equiv. |
Specification Table
| Part Number | — | A | — | B | — | L |
| LSAW10 | — | A120 | — | B120 | — | L150 |
| T | T Tolerance |
| 10·12 | ±1.0 |
| 15 | ±1.5 |
| Longitudinal sides of A and B dims. | Perpendicularity k |
| 76 to 150 | Within 0.10 |
| 151 to 200 | Within 0.15 |
Alterations
| Alterations Code | Alteration Details | Ordering Code | ||||||
| CCA CCB CCC CCD | Corner Cut | Any corner can be cut. 1 ≤ Corner cut ≤ 30: 1 mm Increments | Example: When the corners of A and D are cut by C5 ➡CCA5－CCD5 LSAW10-A120-B120-L150-CCA5-CCD5 | |||||
| CKC |  | Both sides of dimension L are machined to be perpendicular to surface A. | LSAW10-A120-B120-L150-CKC | |||||
| SR |  | Gusset (t6 mm) is welded at the center of dimension L. SR ≥ A/2 | SR80 (Gusset Height = 80 mm from Bottom Surface) LSAW10-A120-B120-L150-SR80 | |||||
| WR |  | 2 gussets (t6 mm) are welded onto portions 2 mm inside from both ends of dimension L. WR ≥ A/2 | WR70 (Gusset Height = 70 mm from Bottom Surface) LSAW10-A120-B120-L150-WR70 | |||||
