8-45 Series / Reversal Brackets with Single Side Tab

CatalogP.2-693

Part number:

Still undefined. 32 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information

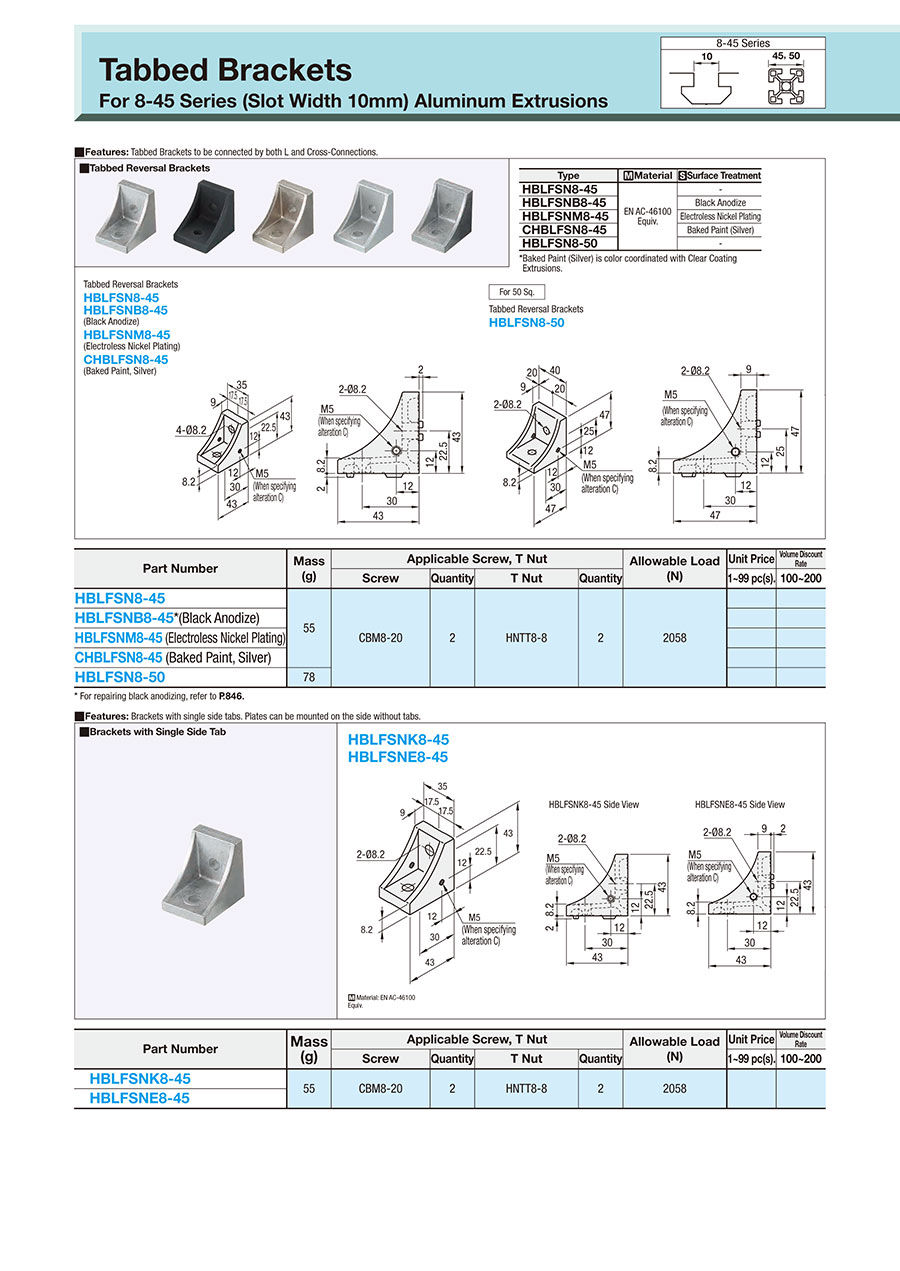

Catalog

Outline drawing and specifications table

8-45 Series/Reversal Brackets with Single Side Tab:Related Image

Material: EN AC-46100 Equiv.

Specifications

Part Number

HBLFSNK8-45

Part Number	Mass (g)	Applicable Screw, T Nut				Allowable Load (N)	Unit Price	Volume Discount Rate
		Screw	Quantity	T Nut	Quantity		1~99 pc(s).	100~200
HBLFSNK8-45	55	CBM8-20	2	HNTT8-8	2	2058
HBLFSNE8-45

Alterations

Part number list

Number of items

Part number

Extrusion No.	Cover Mounting Hole Addition Work	Accessories	RoHS?	Minimum order quantity

8-45	Not Provided	Not Provided	10	1 pieces
8-45	C (Tap for Cover Mounting)	Not Provided	10	1 pieces
8-45	C (Tap for Cover Mounting)	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
8-45	C (Tap for Cover Mounting)	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8-45	C (Tap for Cover Mounting)	SET (Screw, Nut Set)	-	1 pieces
8-45	C (Tap for Cover Mounting)	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
8-45	C (Tap for Cover Mounting)	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	10	1 pieces
8-45	C (Tap for Cover Mounting)	SST (Stainless Steel Screw and Nut Set)	10	1 pieces
8-45	C (Tap for Cover Mounting)	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	10	1 pieces
8-45	Not Provided	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
8-45	Not Provided	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8-45	Not Provided	SET (Screw, Nut Set)	-	1 pieces
8-45	Not Provided	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
8-45	Not Provided	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	10	1 pieces
8-45	Not Provided	SST (Stainless Steel Screw and Nut Set)	10	1 pieces
8-45	Not Provided	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	10	1 pieces
8	Not Provided	Not Provided	10	1 pieces
8	C (Tap for Cover Mounting)	Not Provided	10	1 pieces
8	C (Tap for Cover Mounting)	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
8	C (Tap for Cover Mounting)	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8	C (Tap for Cover Mounting)	SET (Screw, Nut Set)	-	1 pieces
8	C (Tap for Cover Mounting)	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
8	C (Tap for Cover Mounting)	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8	C (Tap for Cover Mounting)	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
8	C (Tap for Cover Mounting)	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
8	Not Provided	SEC (Washer Integrated Screw and Nut Set)	10	1 pieces
8	Not Provided	SEP (Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8	Not Provided	SET (Screw, Nut Set)	-	1 pieces
8	Not Provided	SEU (Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces
8	Not Provided	SSP (Stainless Steel Screw, Post-Assembly Insertion Spring Nut Set)	-	1 pieces
8	Not Provided	SST (Stainless Steel Screw and Nut Set)	-	1 pieces
8	Not Provided	SSU (Stainless Steel Screw, Pre-Assembly Insertion Spring Nut Set)	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

1.85 € ( 2.20 € )	Stock item: 1 working dayAvailable for same-day shipping
2.36 € ( 2.81 € )	5 working days
4.67 € ( 5.56 € )	5 working days
4.13 € ( 4.91 € )	5 working days
3.80 € ( 4.52 € )	5 working days
4.13 € ( 4.91 € )	5 working days
4.38 € ( 5.21 € )	5 working days
3.86 € ( 4.59 € )	5 working days
4.90 € ( 5.83 € )	5 working days
4.16 € ( 4.95 € )	5 working days
3.63 € ( 4.32 € )	5 working days
3.31 € ( 3.94 € )	5 working days
3.63 € ( 4.32 € )	5 working days
3.86 € ( 4.59 € )	5 working days
3.37 € ( 4.01 € )	5 working days
4.40 € ( 5.24 € )	5 working days
1.85 € ( 2.20 € )	5 working days
3.16 €1.04 € ( 1.24 € )	Stock item: 1 working dayAvailable for same-day shipping
4.67 € ( 5.56 € )	5 working days
4.13 € ( 4.91 € )	5 working days
3.80 € ( 4.52 € )	5 working days
4.13 € ( 4.91 € )	5 working days
4.38 € ( 5.21 € )	5 working days
3.86 € ( 4.59 € )	5 working days
4.90 € ( 5.83 € )	5 working days
4.16 € ( 4.95 € )	5 working days
3.63 € ( 4.32 € )	5 working days
3.31 € ( 3.94 € )	5 working days
3.63 € ( 4.32 € )	5 working days
3.86 € ( 4.59 € )	5 working days
3.37 € ( 4.01 € )	5 working days
4.40 € ( 5.24 € )	5 working days

More Information

Basic information

Basic information

A bracket with a protrusion on only one side. The plate can be attached to the surface without protrusions.
