Connectors for Sliding Rail / Resin
Part number:
possible part numbers found.Outline drawing and specifications table
HRLCN5
HRLCN6
HRLCN8
[ ! ] Used to connect the Slide Rails to the Aluminum Extrusions.
[M]Material: Polypropylene (Light Gray)
Specification Table
| Part Number | — | Length |
| HRLCN6 | — | 1000 |
| Part Number | Length 1 mm Increments | Applicable Extrusion (Series) | Mass kg/m | |
| Type | No. | |||
| HRLCN | 5 | 50 to 2000 | 5 Series | 0.045 |
| 6 | 6 Series | 0.064 | ||
| 8 | 8, 8−45 Series | 0.072 | ||
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 6 working days |
- ( - ) | 6 working days |
- ( - ) | 6 working days |
More Information

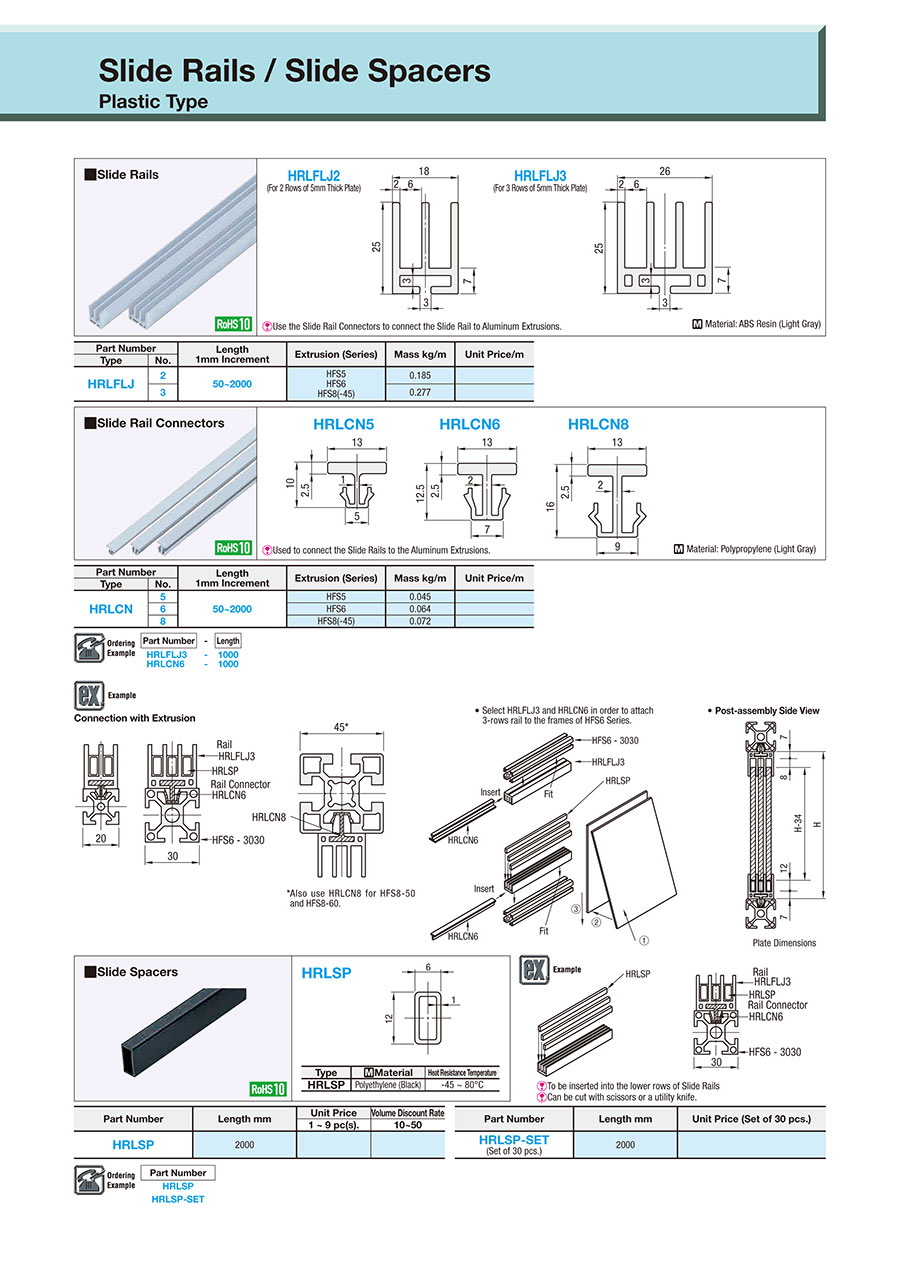

Outline and specifications
App. Example
● Connection with Extrusion
* For 8 Series 50 mm Square
or 8 Series 60 mm Square Type,
please also use HRLCN8.
● Select HRLFLJ3 and HRLCN6 in order to
attach 3-rows rail to the frames of 6 series.
● Post-assembly Side View
Plate Dimensions
