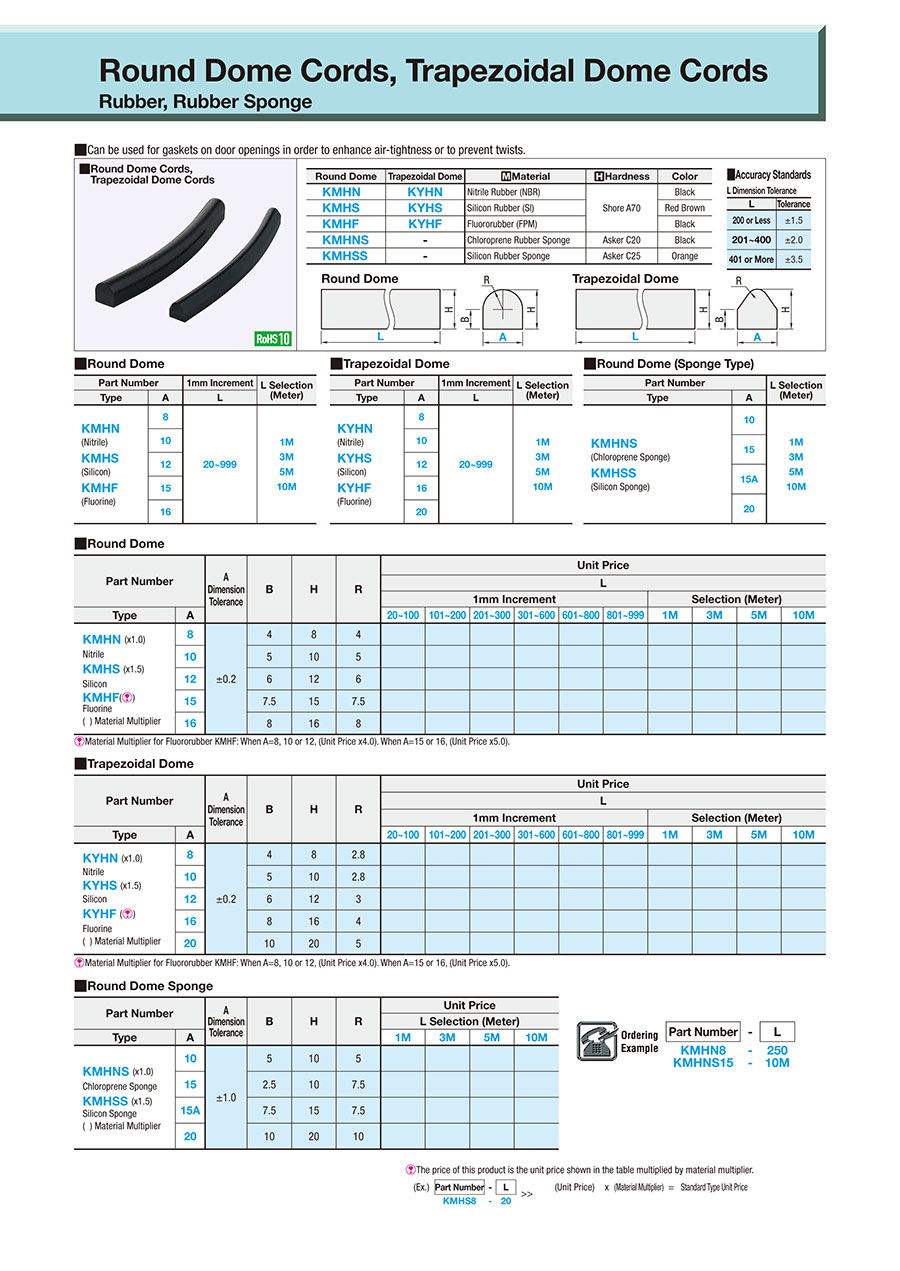

Round Dome Ropes / Trapezoidal Dome Ropes -Rubber / Sponge(Part number list: 2 page)

■Accuracy Standards
L Dimension Tolerance

L	Tolerance
200 or Less	±1.5
201~400	±2.0
401 or More	±3.5

■Round Dome

Part Number		1mm Increment	L Selection (Meter)
Type	A	L
KMHN (Nitrile) KMHS (Silicon) KMHF (Fluorine)	8	20~999	1M 3M 5M 10M
	10
	12
	15
	16

■Trapezoidal Dome

Part Number		1mm Increment	L Selection (Meter)
Type	A	L
KYHN (Nitrile) KYHS (Silicon) KYHF (Fluorine)	8	20~999	1M 3M 5M 10M
	10
	12
	16
	20

■Round Dome (Sponge Type)

Part Number		L Selection (Meter)
Type	A
KMHNS (Chloroprene Sponge) KMHSS (Silicon Sponge)	10	1M 3M 5M 10M
	15
	15A
	20

■Round Dome

Part Number		A Dimension Tolerance	B	H	R	Unit Price
						L
						1mm Increment						Selection (Meter)
Type	A					20~100	101~200	201~300	301~600	601~800	801~999	1M	3M	5M	10M
KMHN (x1.0) Nitrile KMHS (x1.5) Silicon KMHF() Fluorine ( ) Material Multiplier	8	±0.2	4	8	4
	10		5	10	5
	12		6	12	6
	15		7.5	15	7.5
	16		8	16	8

Material Multiplier for Fluororubber KMHF: When A=8, 10 or 12, (Unit Price x4.0). When A=15 or 16, (Unit Price x5.0).
■Trapezoidal Dome

Part Number		A Dimension Tolerance	B	H	R	Unit Price
						L
						1mm Increment						Selection (Meter)
Type	A					20~100	101~200	201~300	301~600	601~800	801~999	1M	3M	5M	10M
KYHN (x1.0) Nitrile KYHS (x1.5) Silicon KYHF () Fluorine ( ) Material Multiplier	8	±0.2	4	8	2.8
	10		5	10	2.8
	12		6	12	3
	16		8	16	4
	20		10	20	5

Material Multiplier for Fluororubber KMHF: When A=8, 10 or 12, (Unit Price x4.0). When A=15 or 16, (Unit Price x5.0).
■Round Dome Sponge

Part Number		A Dimension Tolerance	B	H	R	Unit Price
						L Selection (Meter)
Type	A					1M	3M	5M	10M
KMHNS (x1.0) Chloroprene Sponge KMHSS (x1.5) Silicon Sponge ( ) Material Multiplier	10	±1.0	5	10	5
	15		2.5	10	7.5
	15A		7.5	15	7.5
	20		10	20	10

The price of this product is the unit price shown in the table multiplied by material multiplier.

(Ex.)	Part Number	-	L	>>
	KMHS8	-	20

(Unit Price)	x	(Material Multiplier)	=	Standard Type Unit Price
