Universal (Metal Rod End Fitting) Ball Joint

Catalog

Part number:

Still undefined. 8 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Screw Standard

Internal Diameter

(mm)

Applicable cylinder internal diameter (PB)

(mm)

Applicable cylinder internal diameter (ACQ)

(mm)

Applicable cylinder internal diameter (MF)

(mm)

Applicable cylinder internal diameter (JSI)

(mm)

Thread ridge Pitch

(mm)

Minimum order quantity

M4	5	10	-	-	-	0.7	1 pieces
M5	5	12,16	12	-	-	0.8	1 pieces
M6	6	-	16	-	-	1.0	1 pieces
M8	8	-	20	20	-	1.25	1 pieces
M10	10	-	25	25,32	32	1.25	1 pieces
M14	14	-	32,40	40	40	1.5	1 pieces
M18	18	-	50,63	-	50,63	1.5	1 pieces
M27	30	-	-	-	125	2.0	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

4.20 € ( 5.00 € )	6 working days
4.20 € ( 5.00 € )	6 working days
4.20 € ( 5.00 € )	6 working days
5.20 € ( 6.19 € )	6 working days
6.05 € ( 7.20 € )	6 working days
10.30 € ( 12.26 € )	6 working days
17.34 € ( 20.63 € )	6 working days
41.67 € ( 49.59 € )	6 working days

More Information

Basic information

Basic information

Universal (metal rod end fitting) ball joint manufactured by AirTAC, a company highly rated for its low prices and high quality.· Lubricated type universal ball joint

Catalog

Products homepage

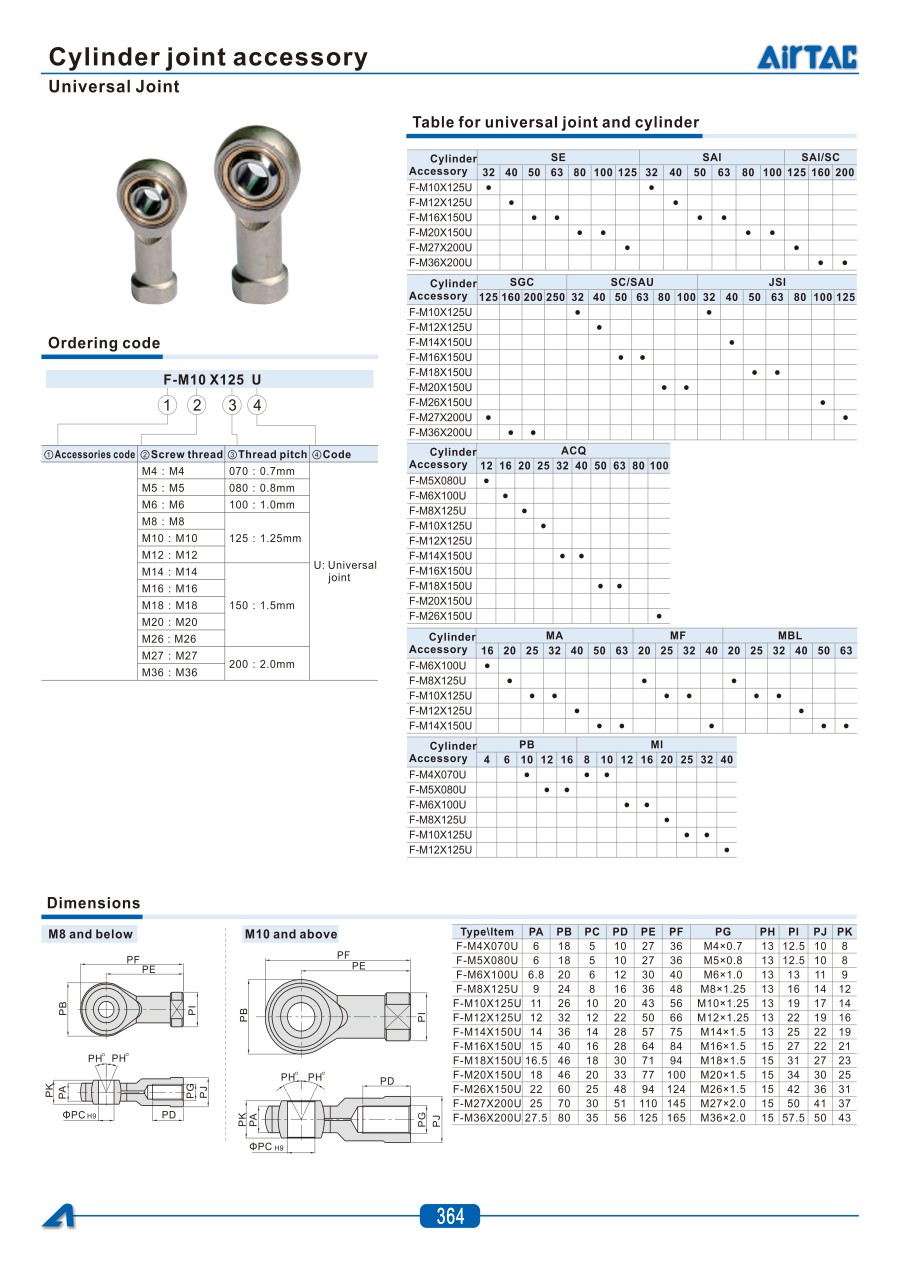

Catalog (2-page spread)
