NIPPON BEARING

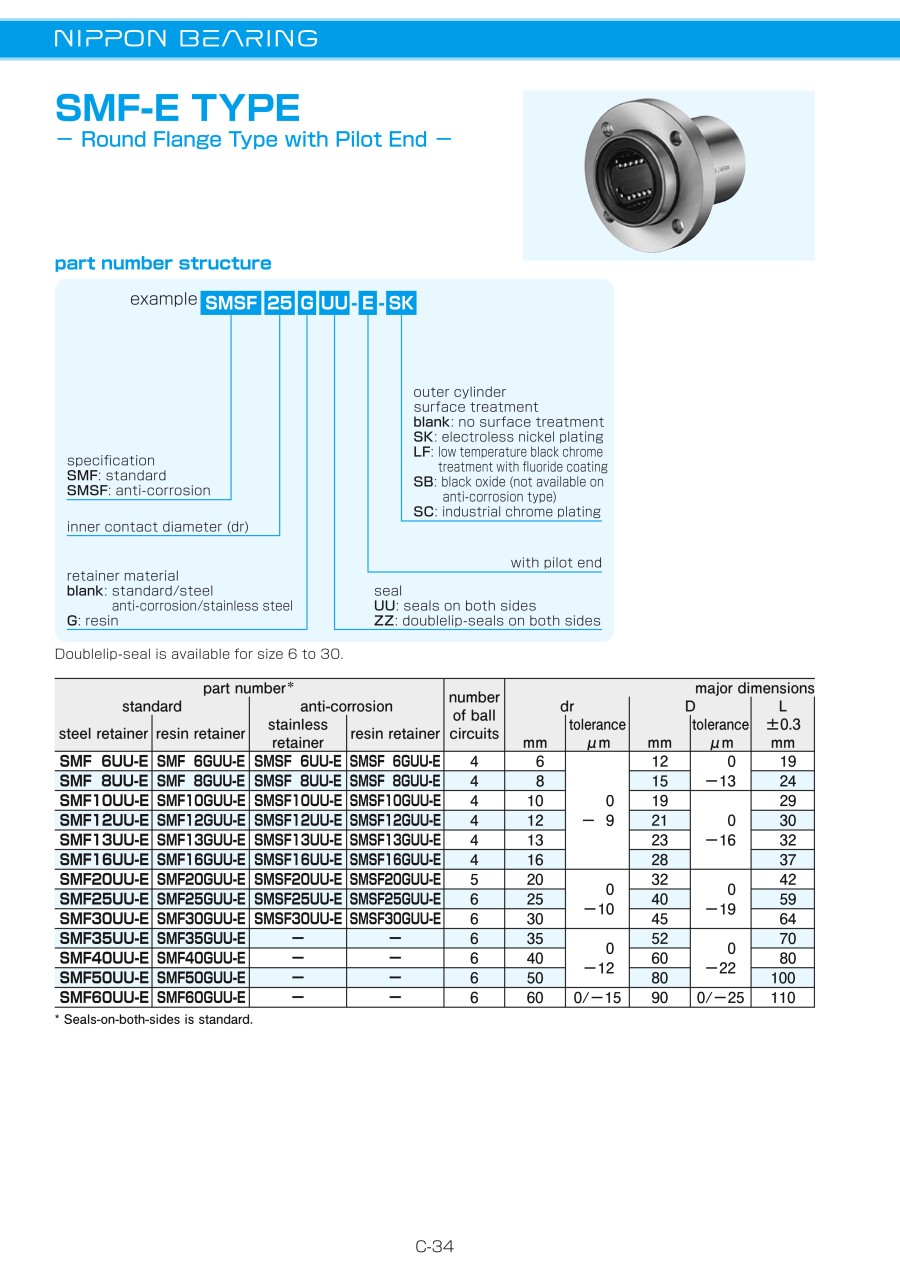

Slide Bushing SMF-E Type (Round Flange Type with Pilot)

Slide Bushing SMF-E Type (Round Flange Type with Pilot)

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    SMF6UU-E
    SMF8UU-E
    Order suspended
    SMF10GUU-E
    SMF10UU-E
    SMF12UU-E
    SMF13UU-E
    SMF16GUU-E
    SMF16UU-E
    SMF20UU-E
    SMF30UU-E

    Diameter of Inscribed Circle

    (mm)

    Overall Length L

    (mm)

    Outer Diameter D

    (mm)

    Basic Load Rating Dynamic Rating (Detail)

    (N)

    Basic Load Rating Static Rating

    (N)

    Tolerance of shaft diameter (Minus Side)

    (mm)

    Eccentricity

    (μm)

    Holder Material

    		Minimum order quantity
    6
    19
    12
    206
    265
    0.009
    12
    Steel
    1 pieces
    8
    24
    15
    274
    392
    0.009
    12
    Steel
    1 pieces
    10
    29
    19
    372
    549
    0.009
    12
    Resin
    1 pieces
    10
    29
    19
    372
    549
    0.009
    12
    Steel
    1 pieces
    12
    30
    21
    510
    784
    0.009
    12
    Steel
    1 pieces
    13
    32
    23
    510
    784
    0.009
    12
    Steel
    1 pieces
    16
    37
    28
    774
    1180
    0.009
    12
    Resin
    1 pieces
    16
    37
    28
    774
    1180
    0.009
    12
    Steel
    1 pieces
    20
    42
    32
    882
    1370
    0.01
    15
    Steel
    1 pieces
    30
    64
    45
    1570
    2740
    0.01
    15
    Steel
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    20.74 €
    ( 24.68 € )
    6 working days
    20.93 €
    ( 24.91 € )
    6 working days
    14.21 €
    ( 16.91 € )
    45 working days
    21.41 €
    ( 25.48 € )
    6 working days
    22.72 €
    ( 27.04 € )
    6 working days
    24.85 €
    ( 29.57 € )
    6 working days
    18.78 €
    ( 22.35 € )
    6 working days
    28.12 €
    ( 33.46 € )
    6 working days
    33.50 €
    ( 39.87 € )
    6 working days
    63.63 €
    ( 75.72 € )
    6 working days
  • 1

    • More Information

    Basic information

    [Features]
    · Round flange type with pilot
    · Appropriate for compact mechanism designs due to use with round shafts, which permits effective use of space.
    · Can be randomly combined with shafts due to full compatibility with NB slide bushings.
    [Applications]
    · Due to the low-friction linear action and simple structure, this product is suitable for diverse applications, including transport equipment, food machinery and semiconductor manufacturing equipment.
