SMC

C(D)UK, Free Mount Cylinder, Non-rotating, Single Acting(Part number list: 2 page)

Catalog

Caution

■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

Part number:

Still undefined. 95 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Cylinder Operation Method

Cylinder (Tube) Inner Diameter

(Ø)

Stroke

(mm)

Operating Temperature

(℃)

Operating Pressure

(MPa)

Port thread type

Auto Switch

Lead Wire Length

(m)

Number of Switches

Custom-made Specifications

Lock unit magnet

Minimum order quantity

Single Acting (Extruded)	6	15	-10～70	0.23～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	6	15	-10～70	0.23～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	10	5	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	10	5	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	10	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	10	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	Non-rotating plate with workpiece mounting screw (no extended part on the rod end)	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	10	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	10	15	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	10	15	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	16	5	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	16	5	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	16	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	16	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	Non-rotating plate with workpiece mounting screw (no extended part on the rod end)	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	16	10	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	16	15	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	16	15	-10～70	0.18～0.7	M5 × 0.8	None	-	-	Non-rotating plate with workpiece mounting screw (no extended part on the rod end)	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	16	15	-10～70	0.18～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	20	5	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	20	5	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	20	10	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	20	10	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	20	15	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	20	15	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	25	5	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	25	5	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	25	10	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	25	10	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	25	15	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	25	15	-10～70	0.16～0.7	M5 × 0.8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	32	5	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	32	5	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	32	10	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	32	10	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces
Single Acting (Extruded)	32	15	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces
[Single-Action (Retraction)] Special Single-acting(Retracted by External Force)	32	15	-10～70	0.16～0.7	Rc 1/8	None	-	-	None	Without magnet	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

52.52 € ( 62.50 € )	19 working days
52.52 € ( 62.50 € )	13 working days
57.31 € ( 68.20 € )	11 working days
57.31 € ( 68.20 € )	13 working days
57.31 € ( 68.20 € )	4 working days
57.31 € ( 68.20 € )	27 working days
57.31 € ( 68.20 € )	13 working days
57.31 € ( 68.20 € )	19 working days
57.31 € ( 68.20 € )	17 working days
67.10 € ( 79.85 € )	19 working days
67.10 € ( 79.85 € )	19 working days
67.10 € ( 79.85 € )	19 working days
67.10 € ( 79.85 € )	13 working days
67.10 € ( 79.85 € )	19 working days
67.10 € ( 79.85 € )	13 working days
67.08 € ( 79.83 € )	13 working days
67.10 € ( 79.85 € )	17 working days
71.56 € ( 85.16 € )	24 working days
71.56 € ( 85.16 € )	24 working days
71.56 € ( 85.16 € )	17 working days
71.56 € ( 85.16 € )	17 working days
74.90 € ( 89.13 € )	17 working days
74.90 € ( 89.13 € )	11 working days
81.52 € ( 97.01 € )	28 working days
81.52 € ( 97.01 € )	28 working days
81.52 € ( 97.01 € )	17 working days
81.52 € ( 97.01 € )	17 working days
87.19 € ( 103.76 € )	17 working days
87.19 € ( 103.76 € )	17 working days
95.19 € ( 113.28 € )	28 working days
95.21 € ( 113.30 € )	24 working days
95.19 € ( 113.28 € )	17 working days
95.19 € ( 113.28 € )	28 working days
97.53 € ( 116.06 € )	17 working days
97.53 € ( 116.06 € )	29 working days

More Information

Basic information

Basic information

Free mount series of compact air cylinders.
[Features]
· Non-rotating rod type.
· A space-saving air cylinder with multiple surfaces capable of direct mounting.
· With auto switch.

Caution

■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
CAD data is not available for some model numbers.

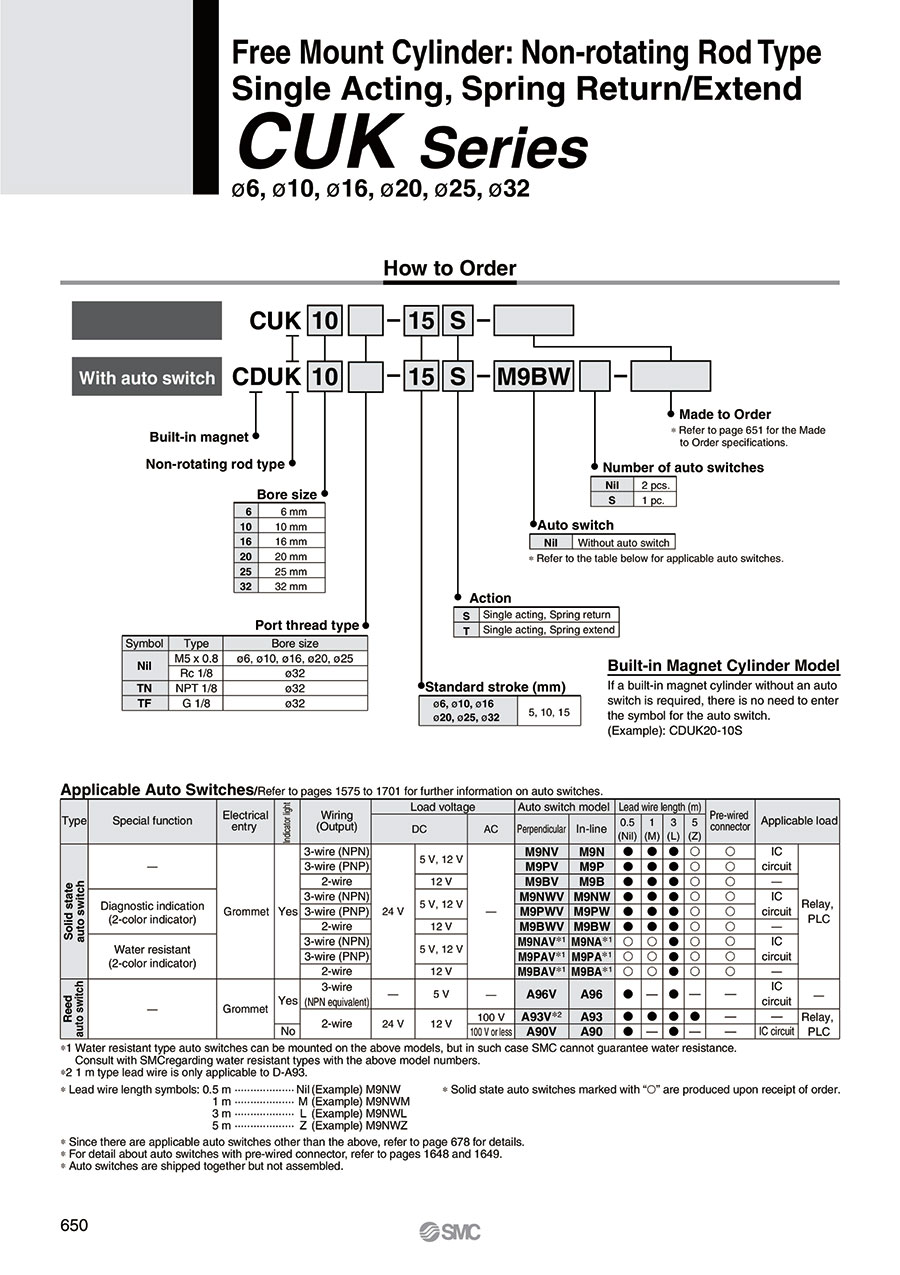

Catalog

Catalog (2-page spread)
