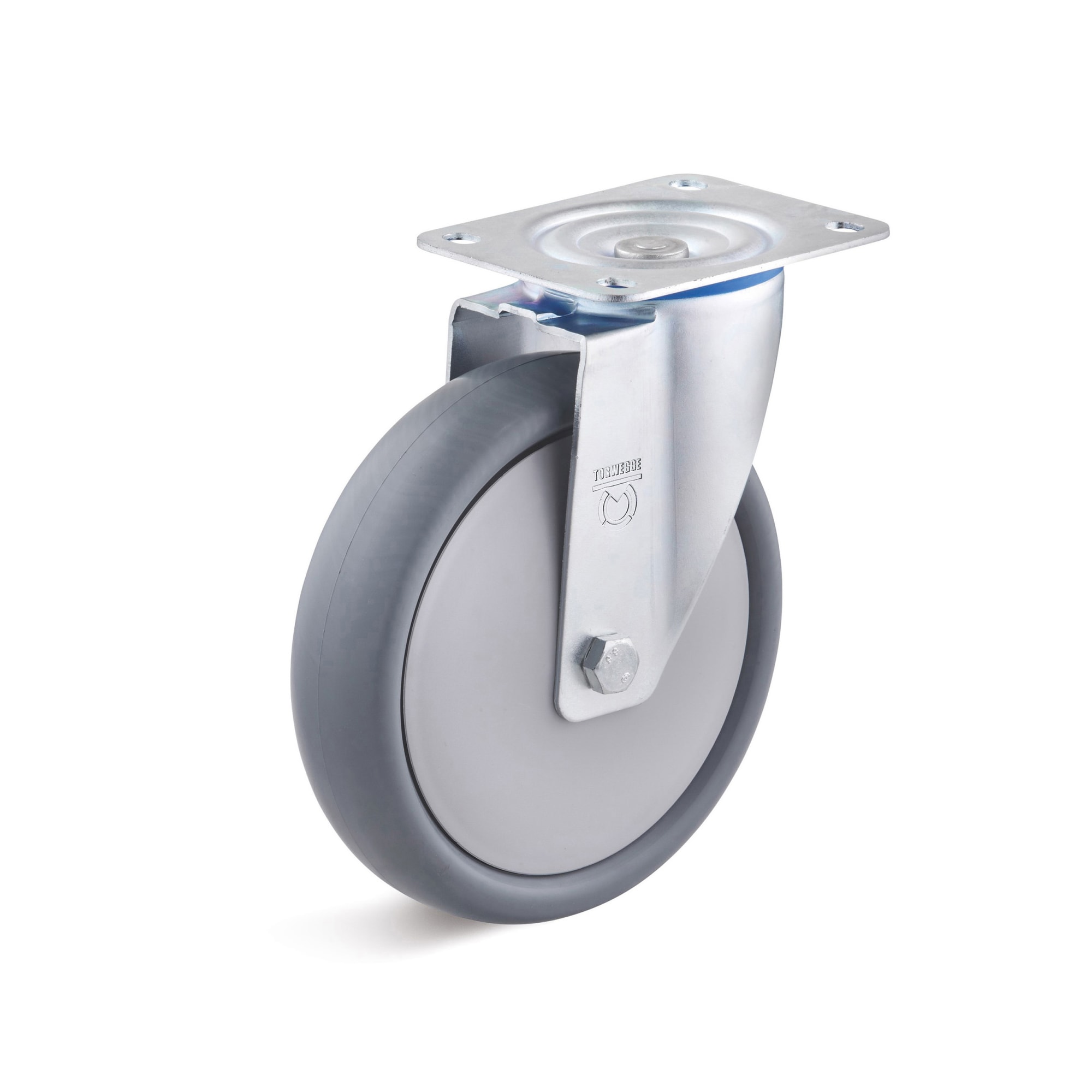

Swivel Castors with thermoplastic wheel

Swivel Castors with thermoplastic wheel

Click on this image to zoom in.

Click on this image to zoom in.

TORWEGGE

TORWEGGE

[Specifications]
・Rolls and case type: Steering housing
・Wheel bearing: Ball-bearing
・Housing material RR: Steel galvanized
・Rim material: Polypropylene
・Tread material: Thermoplastic
・Tread color: Grey
・Wheel diameter(mm): 80-250
・Wheel width(mm): 30-60
・Load capacity dynamic(kg): 100-290

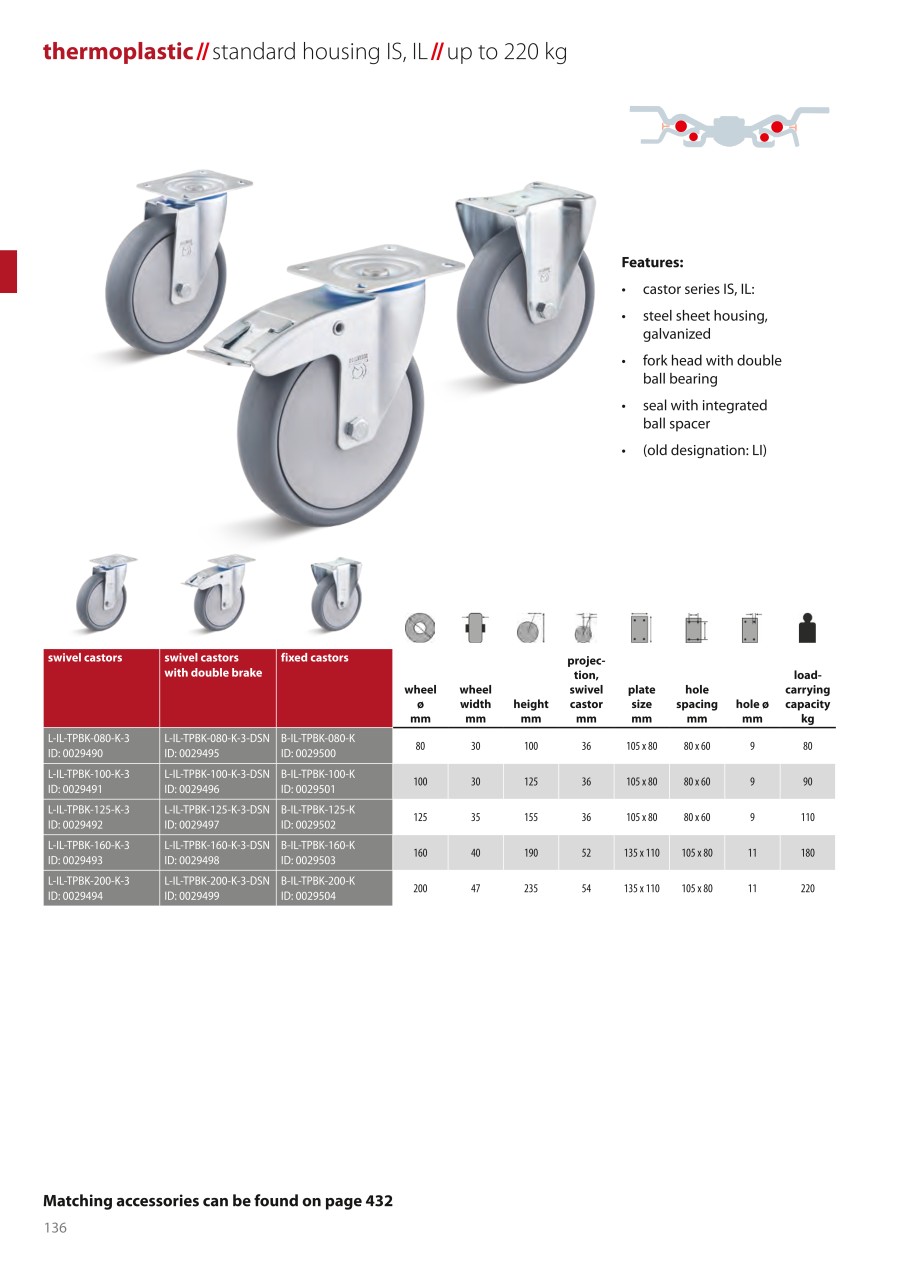

Castor series IL: standard steel sheet housing, galvanised
・fork head with double ball bearing
・seal with integrated ball spacerbr>
wheels:
・polypropylene wheel body with ball bearing
・grey thermoplastic rubber tread, approx. 85° shore A

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Data to be displayed
30
45
60
  1. 1
Part Number
L-IL-TPBK-080-K-3
L-IL-TPBK-080-K-3-EC
L-IL-TPBK-100-K-3
L-IL-TPBK-100-K-3-EC
L-IL-TPBK-125-K-3
L-IL-TPBK-125-K-3-EC
L-IL-TPBK-160-K-3
L-IL-TPBK-160-K-3-EC
L-IL-TPBK-200-K-3
L-IL-TPBK-200-K-3-EC
L-IP-TPKH-250-K-3-GP
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Plate length
(mm) 		Plate width
(mm) 		Wheel diameter
(mm) 		Wheel width
(mm) 		Load capacity dynamic
(kg) 		overall height
(mm) 		Discharge swivel castor
(mm) 		Housing Series Type Bolt Hole Length
(mm) 		Bolt hole width
(mm) 		Material Description Housing Surface coating Screw hole
(mm) 		panel thickness
(mm) 		Number of wheels [piece] Swivel Radius
(mm) 		electrically conductive fork strength
(mm) 		Axle bore housing
(mm) 		Light width
(mm) 		Weight
(kg)

7.13 €

1 4 Days 1058080308010036IL (LCW/BCW)8060Lightweight, pressed sheet steel housing, galvanizedgalvanized92176.5none28.1430.584

14.81 €

1 5 Days 1058080308010036-8060--9--76.5electrically conductive---0.65

7.75 €

1 4 Days 10580100309012536IL (LCW/BCW)8060Lightweight, pressed sheet steel housing, galvanizedgalvanized92.5186.5none2.58.1430.668

17.91 €

1 5 Days 10580100309012536-8060--9--86.5electrically conductive---0.8

9.37 €

1 4 Days 105801253511015536IL (LCW/BCW)8060Lightweight, pressed sheet steel housing, galvanizedgalvanized93199none38.1530.8

24.62 €

1 4 Days 105801253511015536-8060--9--99electrically conductive---0.96

19.31 €

1 4 Days 1351101604018019052IL (LCW/BCW)10580Lightweight, pressed sheet steel housing, galvanizedgalvanized1131132none312.1631.69

37.29 €

1 5 Days 1351101604018019052-10580--11--132electrically conductive---1.72

26.28 €

1 4 Days 1351102004722023554IL (LCW/BCW)10580Lightweight, pressed sheet steel housing, galvanizedgalvanized1131157none312.1632.146

54.22 €

1 5 Days 1351102004722023554-10580--11--157electrically conductive---2.25

80.21 €

1 5 Days 1751752506045029070IP (LL/LB (air)140140-galvanized15-1195none---3.8

Loading...

  1. 1

Basic information

Rolls and case type Steering housing Mounting type Mounting plate Wheel bearing Ball-bearing
Housing material RR Steel galvanized Rim material Polypropylene Tread material Thermoplastic
Tread color Grey Housing classification Standard housing IL Min. temperature resistance(° C) -20
Max. temperature resistance(° C) 60

Configure

Clear all

11Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Plate length(mm)

    • 105
    • 135
    • 175

    Clear

  • Plate width(mm)

    • 80
    • 110
    • 175

    Clear

  • Wheel diameter(mm)

    • 80
    • 100
    • 125
    • 160
    • 200
    • 250

    Clear

  • Wheel width(mm)

    • 30
    • 35
    • 40
    • 47
    • 60

    Clear

  • Load capacity dynamic(kg)

    • 80
    • 90
    • 110
    • 180
    • 220
    • 450

    Clear

  • overall height(mm)

    • 100
    • 125
    • 155
    • 190
    • 235
    • 290

    Clear

  • Discharge swivel castor(mm)

    • 36
    • 52
    • 54
    • 70

    Clear

  • Housing Series Type

    • IL (LCW/BCW)
    • IP (LL/LB (air)

    Clear

  • Bolt Hole Length(mm)

    • 80
    • 105
    • 140

    Clear

  • Bolt hole width(mm)

    • 60
    • 80
    • 140

    Clear

  • Material Description Housing

    • Lightweight, pressed sheet steel housing, galvanized

    Clear

  • Surface coating

    • galvanized

    Clear

  • Screw hole(mm)

    • 9
    • 11
    • 15

    Clear

  • panel thickness(mm)

    • 2
    • 2.5
    • 3

    Clear

  • Number of wheels [piece]

    • 1

    Clear

  • Swivel Radius(mm)

    • 76.5
    • 86.5
    • 99
    • 132
    • 157
    • 195

    Clear

  • electrically conductive

    • electrically conductive
    • none

    Clear

  • fork strength(mm)

    • 2
    • 2.5
    • 3

    Clear

  • Axle bore housing(mm)

    • 8.1
    • 12.1

    Clear

  • Light width(mm)

    • 43
    • 53
    • 63

    Clear
