Configure
- Wheel diameter(mm)
- 50
- 75
- 80
- 100
- 125
- 160
- 200
- Wheel width(mm)
- 18
- 25
- 30
- 32
- 35
- 40
- 50
- Load capacity dynamic(kg)
- 40
- 60
- 80
- 90
- 100
- 180
- 220
- overall height(mm)
- 70
- 101
- 108
- 128
- 133
- 155
- 197
- 240
- Discharge swivel castor(mm)
- 25
- 26
- 32
- 35
- 49
- 52
- Wheel bearing
- Housing material RR
- Surface coating
- Bolt hole Ø(mm)
- 12
- 12.5
- Number of wheels [piece]
- 1
- Clevis bearing type
- Clevis connection
- Swivel Radius(mm)
- 72
- 82
- 94.5
- 132
- 149
- electrically conductive
- Housing design
- Clevis bearing seal
- Tread type
- Bearing shell type
- Housing classification
- Est. shipping days
- All
- Within 4 working days
- Within 5 working days

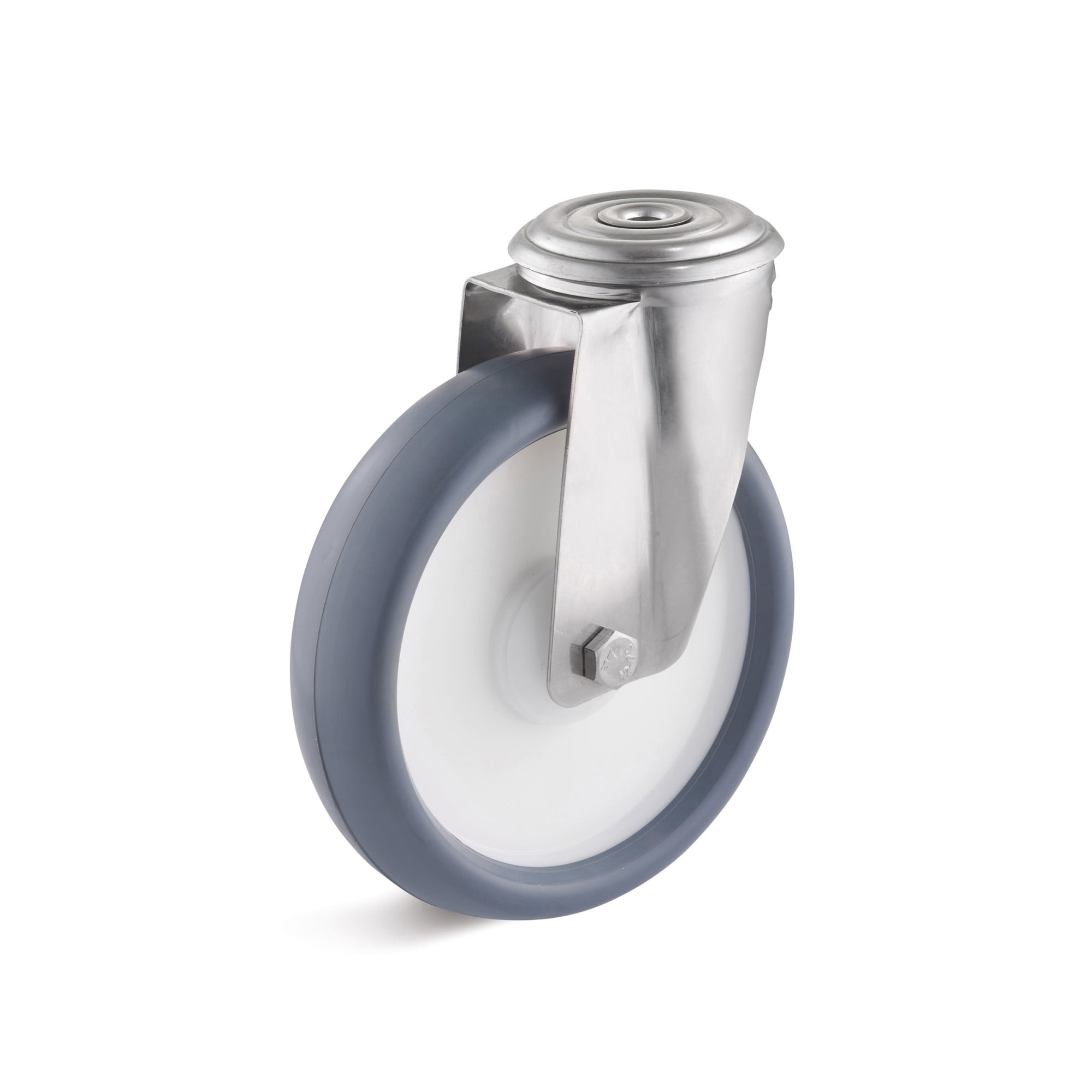

Stainless steel swivel Castors with back hole and thermoplastic wheel
Mouse over image to enlarge
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
11.40 € ( 13.57 € ) | 4 working days |
12.39 € ( 14.74 € ) | 4 working days |
21.81 € ( 25.95 € ) | 4 working days |
18.83 € ( 22.41 € ) | 5 working days |
19.75 € ( 23.50 € ) | 5 working days |
21.67 € ( 25.79 € ) | 5 working days |
42.85 € ( 50.99 € ) | 5 working days |
47.85 € ( 56.94 € ) | 5 working days |
More Information
Basic information
[Specifications]
・Rolls and case type: Steering housing
・Housing material RR: Stainless Steel
・Rim material: Polypropylene
・Tread material: Thermoplastic
・Wheel diameter(mm): 50-200
・Wheel width(mm): 18-50
・Load capacity dynamic(kg): 40-220
[Features]

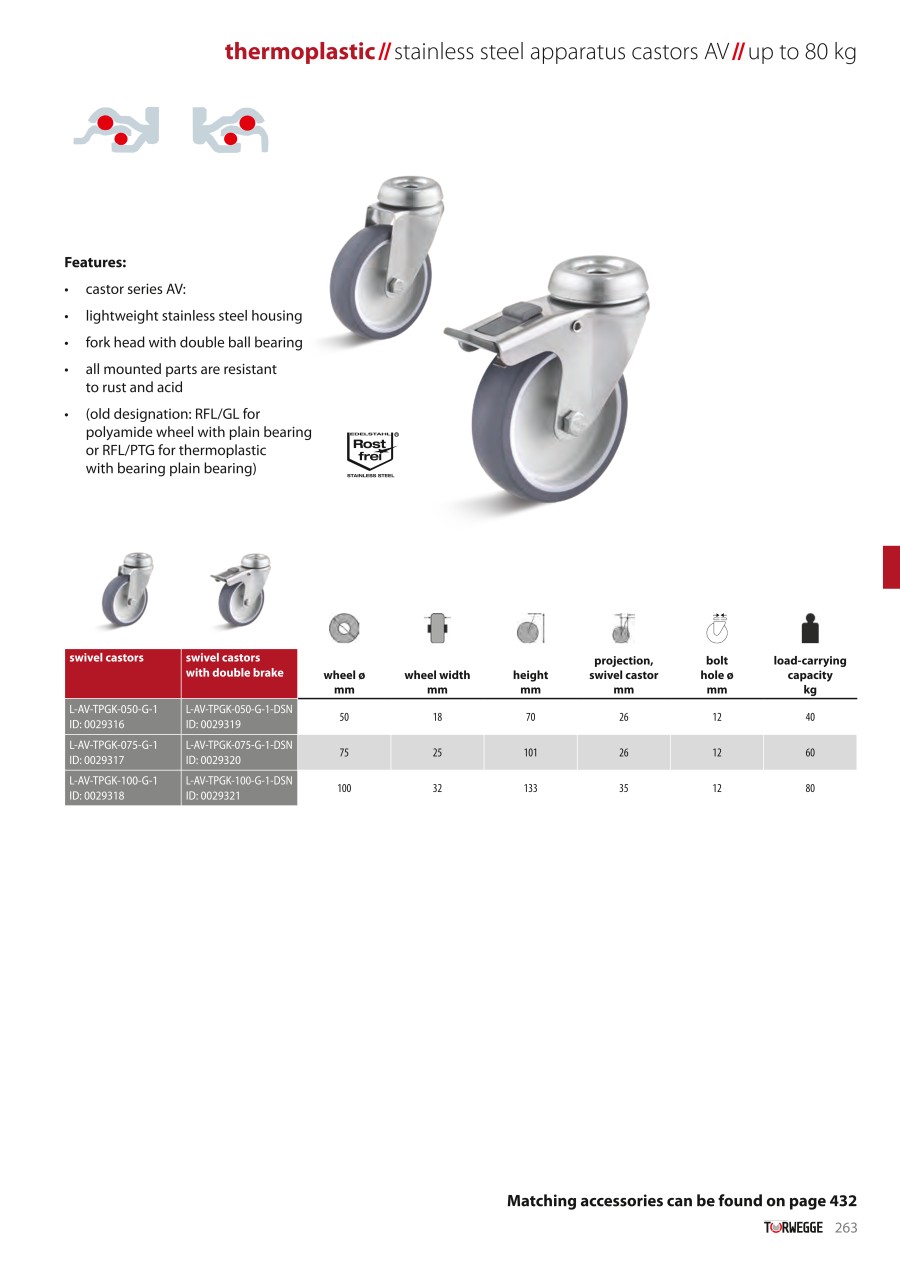

castor series AV:
・lightweight stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: RFL/GL for polyamide wheel with plain bearing or RFL/PTG for thermoplastic with bearing plain bearing)
castor series IV:
・standard stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: RFL/...)
