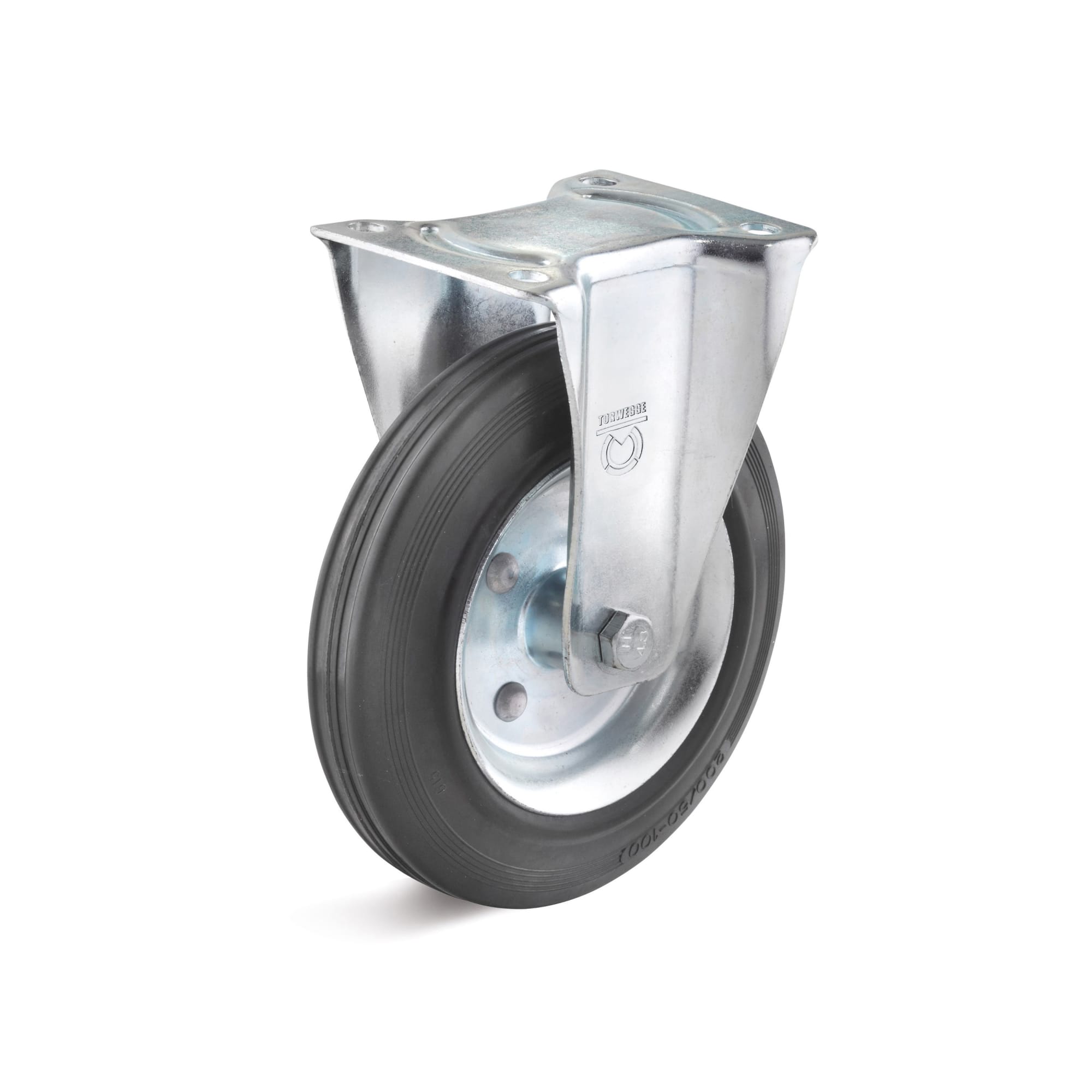

Fixed Castors with solid rubber wheel
・Rolls and case type: Fixed bracket
・Housing classification: Standard housing IL
・Rim material: Galvanized steel sheet
・Tread material: Solid rubber
・Tread color: black
・Wheel diameter(mm): 80-280
・Wheel width(mm): 25-70
Our robust and shock-resistant elastic solid rubber wheel series is vibration-damping and promises quiet running.
Our standard solid rubber fixed castor is characterized by its low-noise running and vibration-damping properties.
Wheel series SGS:
Wheel body made of sheet steel with roller bearing
Tread made of odourless solid rubber tyres black approx. 80° - 85° Shore A.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Housing Series Type | Bolt Hole Length (mm) | Housing material RR | Bolt hole width (mm) | Material Description Housing | Surface coating | Screw hole (mm) | Number of wheels [piece] | electrically conductive | Tread type | Max. temperature resistance (° C) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.11 € | 1 | 4 Days | 135 | 114 | 125 | 38 | 100 | 155 | - | 105 | - | 80 | - | - | 11 | - | electrically conductive | - | 80 | 1.1 | ||
33.78 € | 1 | 5 Days | 135 | 114 | 250 | 60 | 295 | 290 | IS (LI/BI) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 4.51 | ||
49.05 € | 1 | 4 Days | 135 | 114 | 250 | 60 | 295 | 290 | - | 105 | - | 75 | - | - | 11 | - | electrically conductive | - | 80 | 5.24 | ||
6.94 € | 1 | 5 Days | 100 | 80 | 80 | 30 | 50 | 100 | IL (LCW/BCW) | 80 | - | 60 | - | - | 9 | - | electrically conductive | - | 80 | 0.52 | ||
11.27 € | 1 | 5 Days | 100 | 80 | 125 | 38 | 100 | 155 | IL (LCW/BCW) | 80 | - | 60 | - | - | 9 | - | electrically conductive | - | 80 | 0.92 | ||
19.61 € | 1 | 5 Days | 135 | 114 | 160 | 40 | 135 | 190 | IL (LCW/BCW) | 105 | - | 75 | - | - | 11 | - | electrically conductive | - | 80 | 1.7 | ||
23.56 € | 1 | 5 Days | 135 | 114 | 200 | 50 | 205 | 235 | IL (LCW/BCW) | 105 | - | 75 | - | - | 11 | - | electrically conductive | - | 80 | 2.5 | ||
6.08 € | 1 | 4 Days | 102 | 87 | 80 | 25 | 50 | 100 | IS (LI/BI) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 1 | none | crowned | 60 | 0.46 | ||
6.02 € | 1 | 4 Days | 102 | 87 | 100 | 30 | 70 | 125 | IS (LI/BI) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 1 | none | crowned | 60 | 0.6 | ||
10.05 € | 1 | 4 Days | 102 | 87 | 125 | 38 | 100 | 155 | IS (LI/BI) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 1 | none | crowned | 60 | 1.2 | ||
12.52 € | 1 | 5 Days | 135 | 114 | 125 | 38 | 100 | 155 | IS (LI/BI) | 105 | Steel galvanized | 77 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 1.4 | ||
9.33 € | 1 | 4 Days | 115 | 85 | 140 | 37 | 120 | 173 | IS (LI/BI) | 80 | Steel galvanized | 60 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 9 | 1 | none | crowned | 60 | 1.6 | ||
16.57 € | 1 | 4 Days | 135 | 114 | 160 | 40 | 135 | 190 | IS (LI/BI) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 1.85 | ||
17.48 € | 1 | 5 Days | 135 | 114 | 180 | 50 | 170 | 210 | IS (LI/BI) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 2.34 | ||
21.99 € | 1 | 4 Days | 135 | 114 | 200 | 50 | 205 | 235 | IS (LI/BI) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 2.9 | ||
21.62 € | 1 | 20 Days | 150 | 110 | 225 | 55 | 250 | 250 | IS (LI/BI) | 105 | Steel galvanized | 80 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 11 | 1 | none | crowned | 60 | 3.31 | ||
47.03 € | 1 | 4 Days | 195 | 160 | 280 | 70 | 385 | 320 | IS (LI/BI) | 160 | Steel galvanized | 120 | Lightweight, pressed sheet steel housing, galvanized | galvanized | 14 | 1 | none | crowned | 60 | 7.5 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Wheel bearing | Roller bearing |
|---|---|---|---|---|---|
| Rim material | Galvanized steel sheet | Tread material | Solid rubber | Tread color | Black |
| Housing classification | Standard housing IL | Min. temperature resistance(° C) | -20 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Housing Series Type
-
Bolt Hole Length(mm)
-
Housing material RR
- Steel galvanized
-
Bolt hole width(mm)
-
Material Description Housing
- Lightweight, pressed sheet steel housing, galvanized
-
Surface coating
- galvanized
-
Screw hole(mm)
-
Number of wheels [piece]
- 1
-
electrically conductive
- electrically conductive
- none
-
Tread type
- crowned
-
Max. temperature resistance(° C)
- 60
- 80
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
- 20 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
