Configure

Degree of protection
- IP65, IP67
- IP67
Cable length(m)
- 2.5
Material of cable sheath
- TPE-U(PUR)
Max. switching frequency(Hz)
- 1500
- 2500
Size
- M12
- M18
Rated operating distance(mm)
- 4
- 8
Electrical output
- NPN
- PNP
Tightening torque(Nm)
- 20
Switching output
- NPN
- PNP
Electrical connection
Repetition accuracy(mm)
- 0.4
Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
Est. shipping days
- All
- Within 3 working days
- Within 4 working days
- Within 8 working days

Proximity sensor, SIEH Series

Click image to view enlarged image

Catalog

Part number:

Still undefined. 16 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Order suspended

Degree of protection

Cable length

(m)

Material of cable sheath

Max. switching frequency

(Hz)

Size

Rated operating distance

(mm)

Electrical output

Tightening torque

(Nm)

Switching output

Electrical connection

Repetition accuracy

(mm)

Corrosion resistance class (CRC)

Weight

(g)

Manufacturer part #

Minimum order quantity

Data sheet	IP65, IP67	2.5	TPE-U(PUR)	2500	M12	4	NPN	-	NPN	Cable	-	2 - Moderate corrosion stress	110	150452	1 pieces
Data sheet	IP65, IP67	-	-	2500	M12	4	NPN	-	NPN	3-pin, M12x1, Plug	-	2 - Moderate corrosion stress	30	150453	1 pieces
Data sheet	IP65, IP67	2.5	TPE-U(PUR)	2500	M12	4	NPN	-	NPN	Cable	-	2 - Moderate corrosion stress	110	150448	1 pieces
Data sheet	IP65, IP67	-	-	2500	M12	4	NPN	-	NPN	3-pin, M12x1, Plug	-	2 - Moderate corrosion stress	30	150449	1 pieces
Data sheet	IP65, IP67	2.5	TPE-U(PUR)	2500	M12	4	PNP	-	PNP	Cable	-	2 - Moderate corrosion stress	110	150454	1 pieces
Data sheet	IP65, IP67	-	-	2500	M12	4	PNP	-	PNP	3-pin, M12x1, Plug	-	2 - Moderate corrosion stress	30	150455	1 pieces
Data sheet	IP65, IP67	2.5	TPE-U(PUR)	2500	M12	4	PNP	-	PNP	Cable	-	2 - Moderate corrosion stress	110	150450	1 pieces
Data sheet	IP65, IP67	-	-	2500	M12	4	PNP	-	PNP	3-pin, M12x1, Plug	-	2 - Moderate corrosion stress	30	150451	1 pieces
Data sheet	IP67	2.5	TPE-U(PUR)	1500	M18	8	NPN	20	NPN	3-wire, Cable	0.4	-	108	150460	1 pieces
Data sheet	IP67	-	-	1500	M18	8	NPN	20	NPN	3-pin, M12x1, Plug	0.4	-	43	150461	1 pieces
Data sheet	IP67	2.5	TPE-U(PUR)	1500	M18	8	NPN	20	NPN	3-wire, Cable	0.4	-	108	150456	1 pieces
Data sheet	IP67	-	-	1500	M18	8	NPN	20	NPN	3-pin, M12x1, Plug	0.4	-	43	150457	1 pieces
Data sheet	IP67	2.5	TPE-U(PUR)	1500	M18	8	PNP	20	PNP	3-wire, Cable	0.4	-	108	150462	1 pieces
Data sheet	IP67	-	-	1500	M18	8	PNP	20	PNP	3-pin, M12x1, Plug	0.4	-	43	150463	1 pieces
Data sheet	IP67	2.5	TPE-U(PUR)	1500	M18	8	PNP	20	PNP	3-wire, Cable	0.4	-	108	150458	1 pieces
Data sheet	IP67	-	-	1500	M18	8	PNP	20	PNP	3-pin, M12x1, Plug	0.4	-	43	150459	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

69.31 € ( 82.48 € )	4 working days
69.31 € ( 82.48 € )	4 working days
69.31 € ( 82.48 € )	4 working days
69.31 € ( 82.48 € )	4 working days
66.12 € ( 78.68 € )	4 working days
66.12 € ( 78.68 € )	4 working days
85.72 € ( 102.01 € )	8 working days
66.12 € ( 78.68 € )	4 working days
76.68 € ( 91.25 € )	3 working days
76.68 € ( 91.25 € )	4 working days
76.68 € ( 91.25 € )	4 working days
76.68 € ( 91.25 € )	4 working days
73.49 € ( 87.45 € )	4 working days
73.49 € ( 87.45 € )	4 working days
73.49 € ( 87.45 € )	4 working days
73.49 € ( 87.45 € )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Degree of protection: IP65, IP67 / IP67
・Corrosion resistance class (CRC): 2 - Moderate corrosion stress
・Housing material: Brass, PBTP, Nickel-plated
・Type of mounting: With lock nut

[Features]
・Increased switching distance
・For DC voltage
・Round design

Catalog

Products homepage

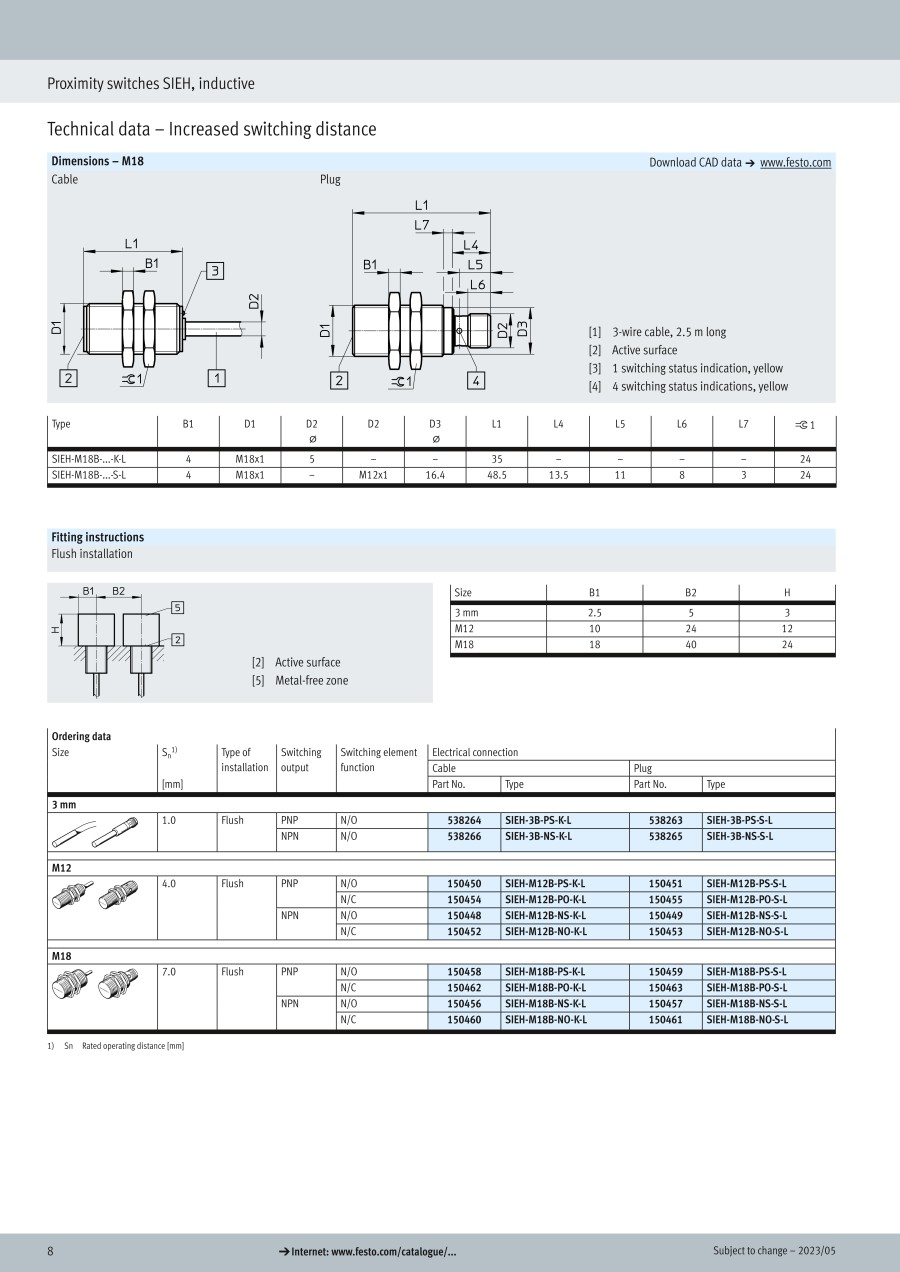

Catalog (2-page spread)
