Deep groove ball bearings / single row / outer ring with retaining rings / 2RS / 2RSNR / ZEN
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|

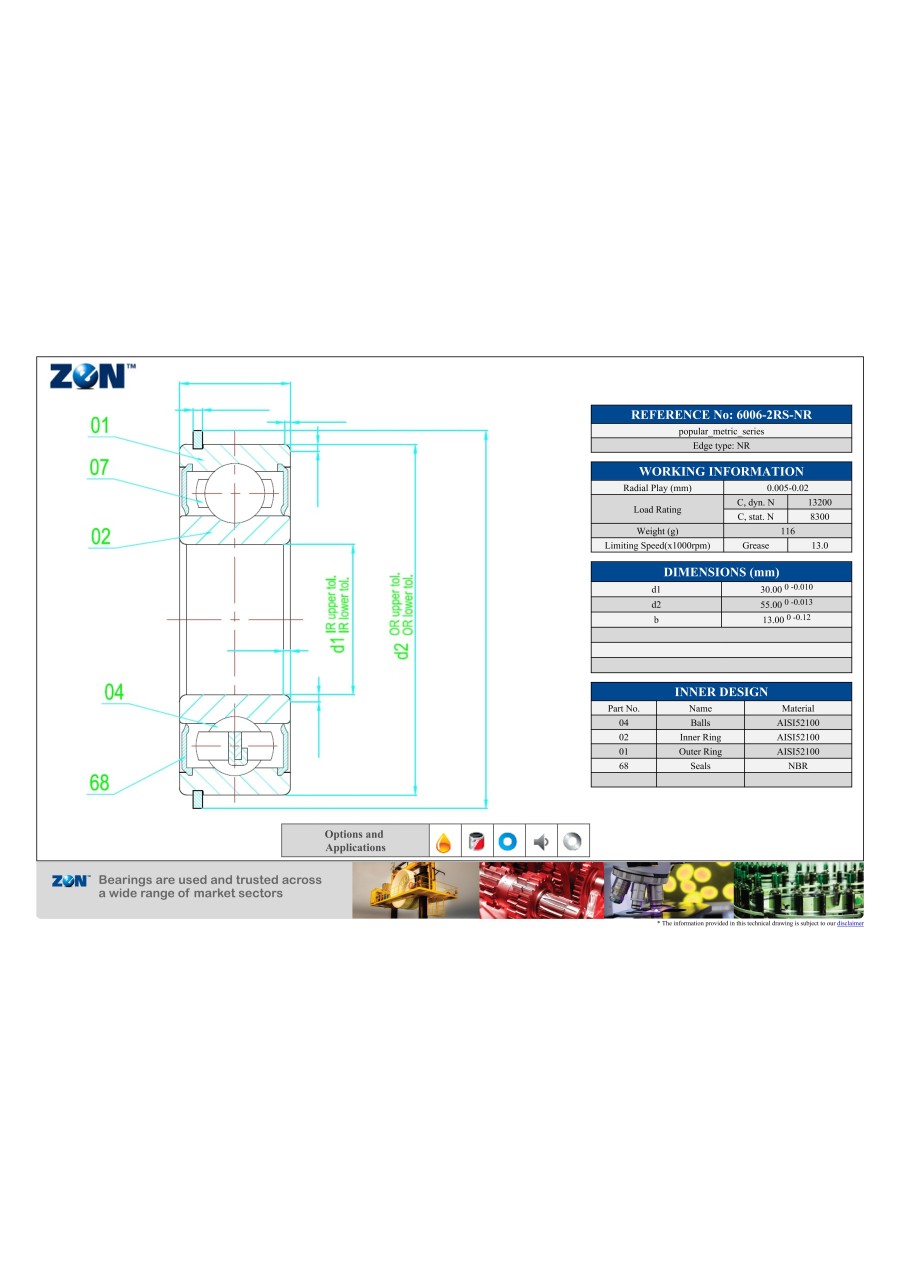

| 6006 -2RSNR |
| 6008-2RSNR |
| 6201-2RSNR |
| 6203 -2RSNR |
| 6204-2RSNR |
| 6212 -2RSNR |
| 6305 -2RSNR |
| 6308-2RSNR |
| 6309 -2RSNR |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. D (φ) | Outer Diameter D (φ) | Width B (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|
3.63 € | 1 | 4 Days | 30 | 55 | 13 | 120.0 | ||
4.98 € | 1 | 4 Days | 40 | 68 | 15 | 189.0 | ||
2.03 € | 1 | 4 Days | 12 | 32 | 10 | 37.0 | ||
2.47 € | 1 | 4 Days | 17 | 40 | 12 | 67.0 | ||
3.09 € | 1 | 4 Days | 20 | 47 | 14 | 102.0 | ||
34.76 € | 1 | 4 Days | 60 | 110 | 22 | 820.0 | ||
7.87 € | 1 | 4 Days | 25 | 62 | 17 | 235.0 | ||
12.96 € | 1 | 4 Days | 40 | 90 | 23 | 646.0 | ||
30.32 € | 1 | 4 Days | 45 | 100 | 25 | 829.0 |
Loading...
Basic information
| Materials of Inner and Outer Ring | Steel | Accuracy (JIS) | Grade 0 | Number of Bearing Ring Rows | Single Row |
|---|---|---|---|---|---|
| Rolling Element Material | Steel | Bore | Cylindrical bore | Cage | Sheet steel cage |
| Clearance | Normal radial clearance | Current insulation | No current insulation | Outer ring | Ring groove with circlip on outer ring |
| Seal | Contact seals on both sides | Temperature range | -20 to +120 °C |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
