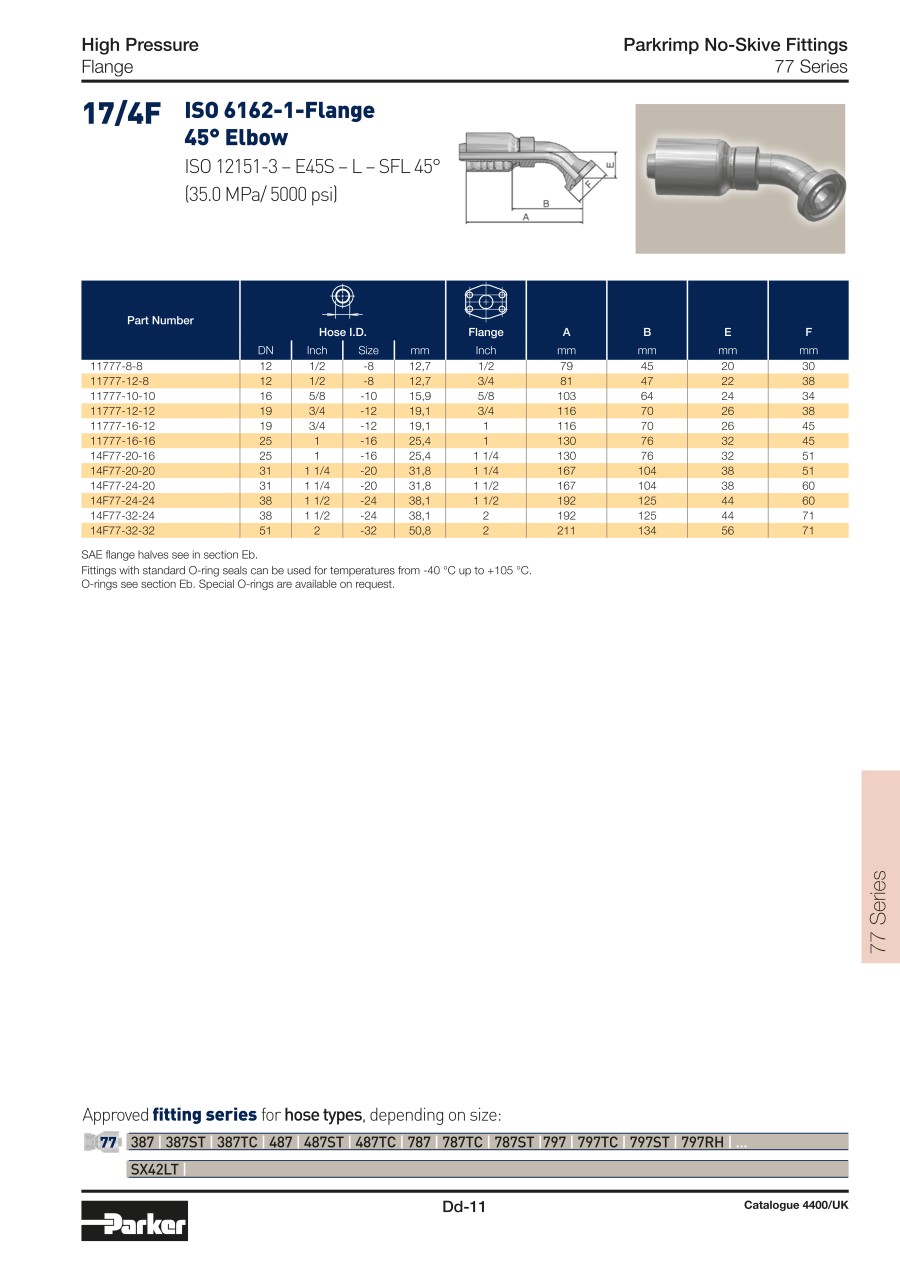

PARKER Parkrimp No-Skive Fitting 14F77
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 14F77-20-20 |
| 14F77-32-32 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Thread or tube size | B (mm) | Customs tariff item number | Hose fitting size | F (mm) | Imperial flange size | E (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
234.37 € | 1 | 3 Days | 31 | 162 | -20 | 99 | 73269098 | -20 | 51 | 1 1/4 | 38 | ||
695.26 € | 1 | 23 Days | 51 | 211 | -32 | 134 | 73079290 | -32 | 71 | 2 | 56 |
Loading...
Basic information
| Customs tariff weight(kg) | 0 | Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free |
|---|---|---|---|---|---|
| Connection group | Flange | Description of connection type | ISO 6162-1 - 5,000 psi - standard design - 45° elbow (5,000 psi) | Connection type | 4F |
| Fitting series | 77 | Operating pressure Mpa | 35 | Customs tariff weight per | 1 |
| Fitting | Parkrimp fitting | Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
