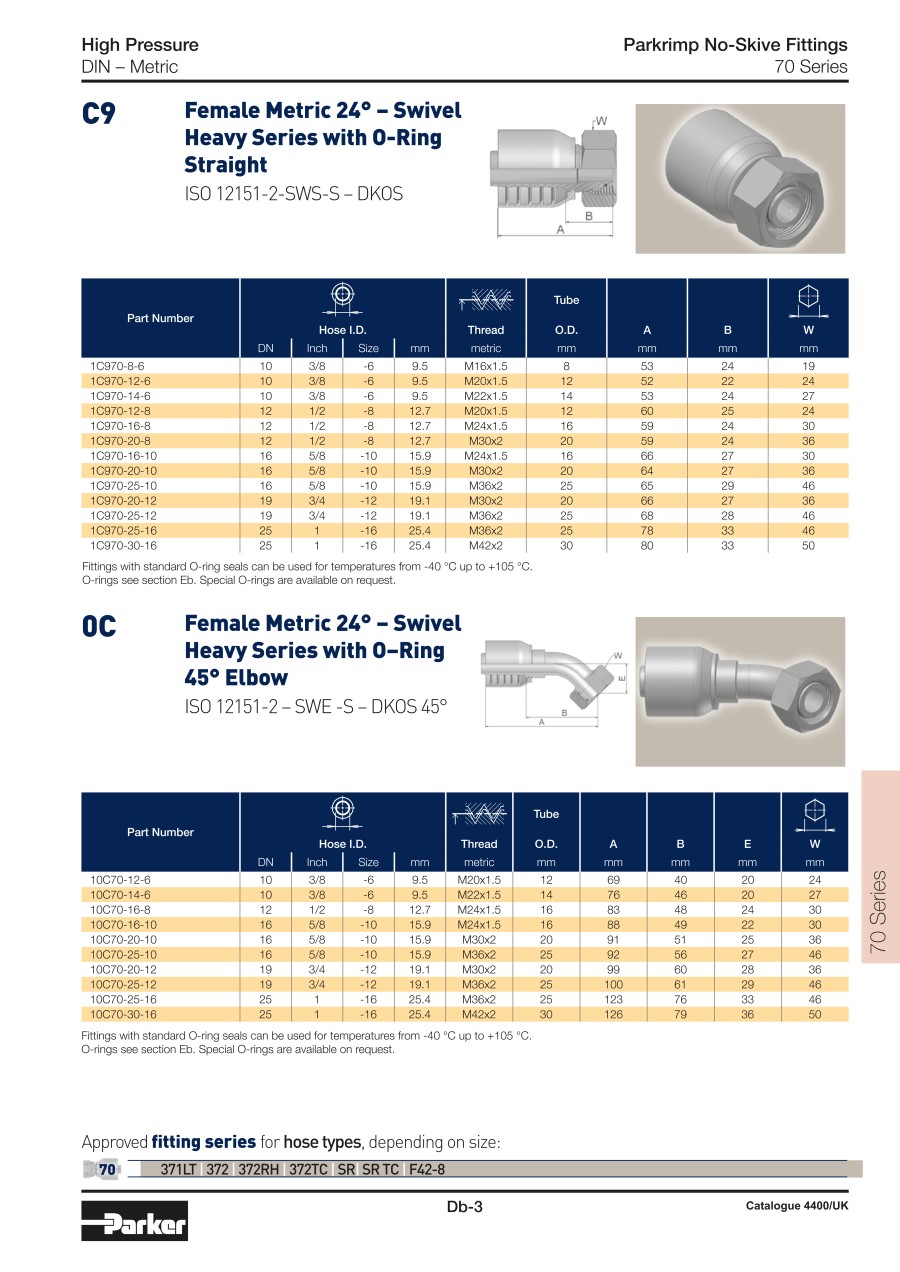

PARKER Parkrimp No-Skive Fitting 10C70
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 10C70-16-8 |
| 10C70-16-10 |
| 10C70-20-10 |
| 10C70-25-12 |
| 10C70-30-16 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Customs tariff weight (kg) | Thread or tube size | W | B (mm) | Hose fitting size | E (mm) | Thread diameter metric | Tube O.D. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
48.40 € | 1 | 5 Days | 12 | 83 | 0.24 | -16 | 30 | 48 | -08 | 24 | M24x1.5 | 16 | ||
80.75 € | 1 | 5 Days | 16 | 88 | 0.337 | -16 | 30 | 49 | -10 | 22 | M24x1.5 | 16 | ||
66.97 € | 1 | 5 Days | 16 | 91 | 0.309 | -20 | 36 | 52 | -10 | 25 | M30x2 | 20 | ||
120.40 € | 1 | 5 Days | 19 | 100 | 0.824 | -25 | 46 | 61 | -12 | 29 | M36x2 | 25 | ||
170.31 € | 1 | 5 Days | 25 | 126 | 0.78 | -30 | 50 | 79 | -16 | 36 | M42x2 | 30 |
Loading...
Basic information
| Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free | Connection group | DIN - metric |
|---|---|---|---|---|---|
| Norm | ISO 12151-2 - SWE 45°-S | Common name | DKOS 45° | Description of connection type | Taper with union nut - O-ring - heavy series - 45° elbow |
| Connection type | 0C | Fitting series | 70 | Customs tariff item number | 73269098 |
| Operating pressure Mpa | 42 | Customs tariff weight per | 1 | Fitting | Parkrimp fitting |
| Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
