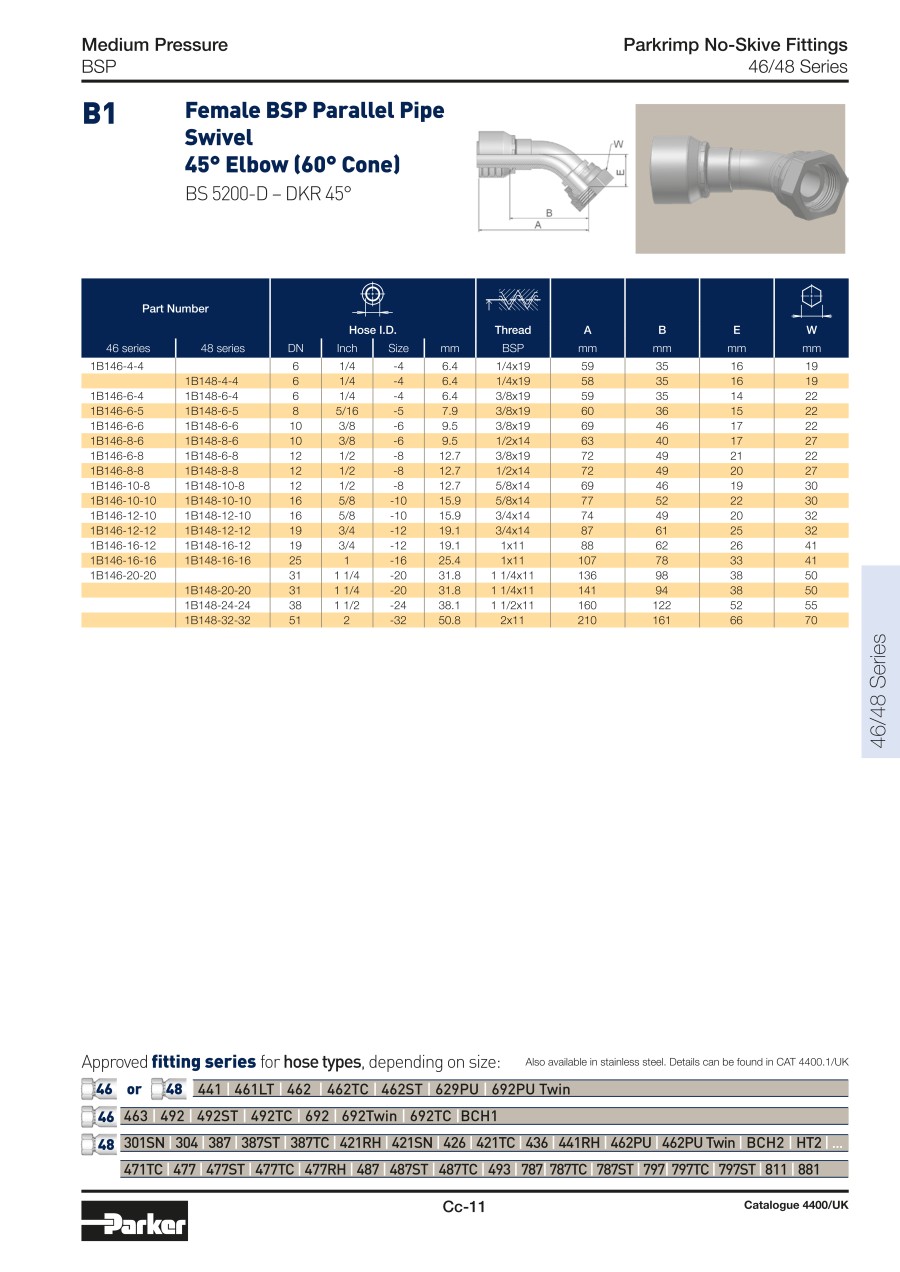

PARKER Parkrimp No-Skive Fitting 1B146
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 1B146-4-4 |
| 1B146-6-4 |
| 1B146-6-6 |
| 1B146-12-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Customs tariff weight (kg) | Thread or tube size | W | B (mm) | Operating pressure Mpa | Hose fitting size | Thread diameter BSP | E (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
33.17 € | 1 | 5 Days | 6 | 59 | 0.125 | -04 | 19 | 35 | 63 | -04 | 1/4x19 | 16 | ||
51.34 € | 1 | 5 Days | 6 | 59 | 0.082 | -06 | 22 | 35 | 55 | -04 | 3/8x19 | 14 | ||
35.63 € | 1 | 5 Days | 10 | 69 | 0.079 | -06 | 22 | 46 | 55 | -06 | 3/8x19 | 17 | ||
79.74 € | 1 | 5 Days | 19 | 87 | 0.255 | -12 | 32 | 61 | 42 | -12 | 3/4x14 | 25 |
Loading...
Basic information
| Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free | Connection group | BSP |
|---|---|---|---|---|---|
| Norm | BS 5200-D | Common name | DKR 45° | Description of connection type | Sealing head with BSP union nut - 45° elbow |
| Connection type | B1 | Fitting series | 46 | Customs tariff item number | 73269098 |
| Customs tariff weight per | 1 | Fitting | Parkrimp fitting | Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
