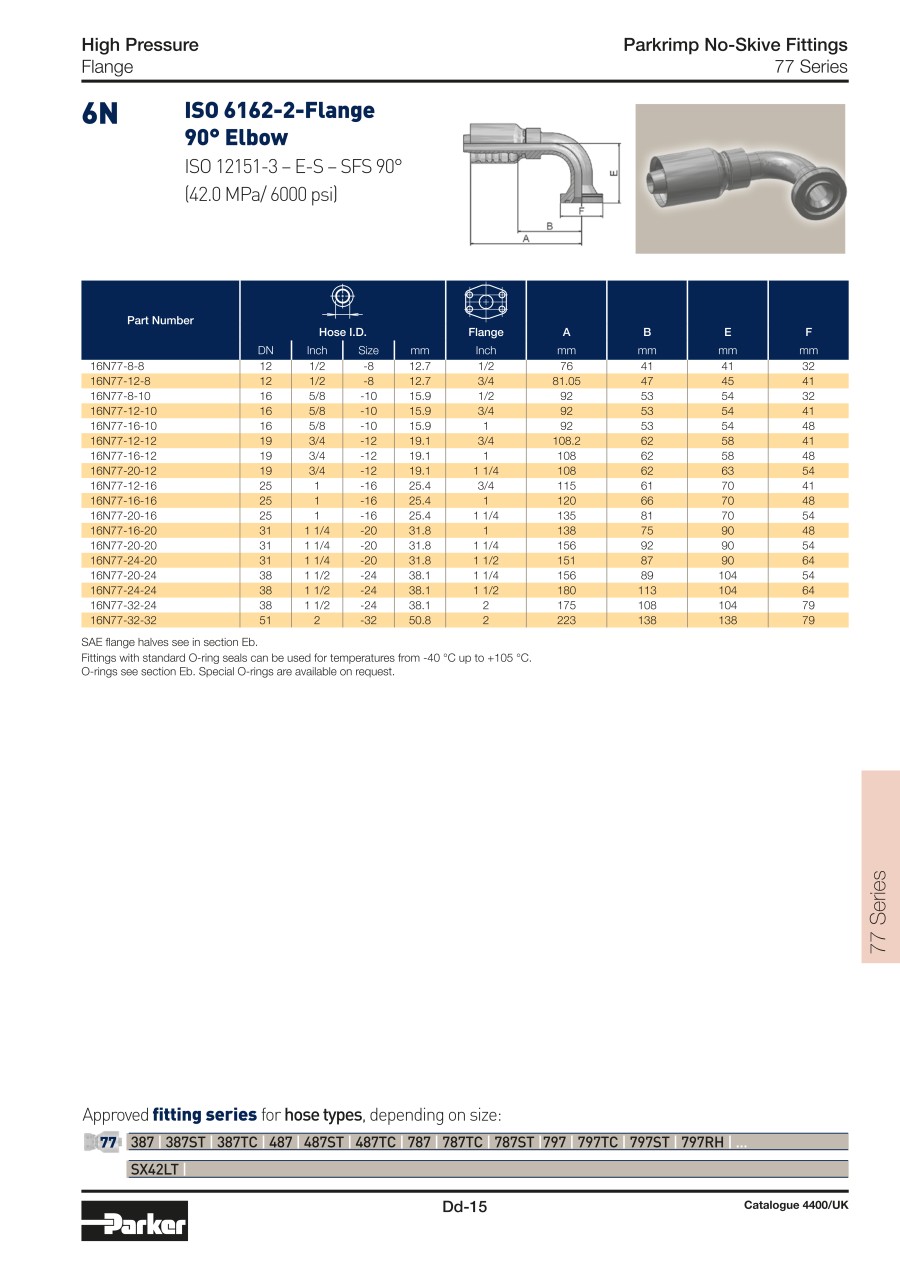

PARKER Parkrimp No-Skive Fitting 16N77
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 16N77-12-12 |
| 16N77-12-16 |
| 16N77-16-12 |
| 16N77-16-16 |
| 16N77-16-20 |
| 16N77-20-16 |
| 16N77-20-20 |
| 16N77-24-20 |
| 16N77-24-24 |
| 16N77-32-24 |
| 16N77-32-32 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Customs tariff weight (kg) | Thread or tube size | B (mm) | Customs tariff item number | Hose fitting size | Customs tariff country of origin | F (mm) | Imperial flange size | E (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
128.54 € | 1 | 3 Days | 19 | 108.2 | 0.406 | -12 | 62 | 73269098 | -12 | DE | 41 | 3/4 | 58 | ||
147.80 € | 1 | 3 Days | 25 | 118 | 0 | -12 | 64 | 73269098 | -16 | DE | 41 | 3/4 | 70 | ||
144.86 € | 1 | 3 Days | 19 | 108 | 0.44 | -16 | 62 | 73269098 | -12 | DE | 48 | 1 | 58 | ||
157.48 € | 1 | 3 Days | 25 | 131 | 0.671 | -16 | 77 | 73269098 | -16 | DE | 48 | 1 | 70 | ||
246.89 € | 1 | 3 Days | 31 | 145 | 0 | -16 | 82 | 73269098 | -20 | DE | 48 | 1 | 90 | ||
181.35 € | 1 | 17 Days | 25 | 135 | 0.713 | -20 | 81 | 73269098 | -16 | DE | 54 | 1 1/4 | 70 | ||
235.71 € | 1 | 3 Days | 31 | 151 | 1.28 | -20 | 87 | 73269098 | -20 | DE | 54 | 1 1/4 | 90 | ||
304.03 € | 1 | 3 Days | 31 | 151 | 0 | -24 | 87 | 73269098 | -20 | DE | 64 | 1 1/2 | 90 | ||
369.06 € | 1 | 23 Days | 38 | 175 | 0 | -24 | 108 | 73269098 | -24 | DE | 64 | 1 1/2 | 104 | ||
680.60 € | 1 | 32 Days | 38 | 175 | 0 | -32 | 108 | 73079980 | -24 | US | 79 | 2 | 104 | ||
608.25 € | 1 | 23 Days | 51 | 206 | 0 | -32 | 129 | 73269098 | -32 | DE | 79 | 2 | 138 |
Loading...
Basic information
| Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free | Connection group | Flange |
|---|---|---|---|---|---|
| Norm | ISO 12151-3 - E-S | Common name | SFS 90° / 6000 psi | Description of connection type | ISO 6162-2 - flange - heavy design - 90° elbow |
| Connection type | 6N | Fitting series | 77 | Operating pressure Mpa | 42 |
| Customs tariff weight per | 1 | Fitting | Parkrimp fitting |
Configure
Basic Attributes
-
Nominal Dia.(mm)
-
A(mm)
-
Customs tariff weight(kg)
-
Thread or tube size
-
B(mm)
-
Customs tariff item number
-
Hose fitting size
-
Customs tariff country of origin
-
F(mm)
-
Imperial flange size
-
E(mm)
-
Type
Filter by standard shipping days
-
- All
- 3 Days or Less
- 17 Days or Less
- 23 Days or Less
- 32 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
