Configure

Nominal Dia.(mm)
- 6
- 10
- 12
- 16
- 19
- 25
- 31
A(mm)
- 43
- 45
- 46
- 48
- 51
- 55
- 63
- 71
Customs tariff weight(kg)
- 0.08
- 0.081
- 0.104
- 0.11
- 0.147
- 0.239
- 0.243
- 0.352
- 0.36
- 0.527
Thread or tube size
- -20
- -16
- -12
- -10
- -08
- -06
- -04
W
- 17
- 22
- 24
- 30
- 36
- 41
- 50
H(mm)
- 14
- 17
- 19
- 22
- 24
- 30
- 36
- 41
Thread diameter UNF
B(mm)
- 21
- 22
- 23
- 24
- 26
- 29
- 33
Operating pressure Mpa
- 28
- 41
- 63.5
Hose fitting size
- -20
- -16
- -12
- -10
- -08
- -06
- -04
Type
Est. shipping days
- All
- Within 5 working days

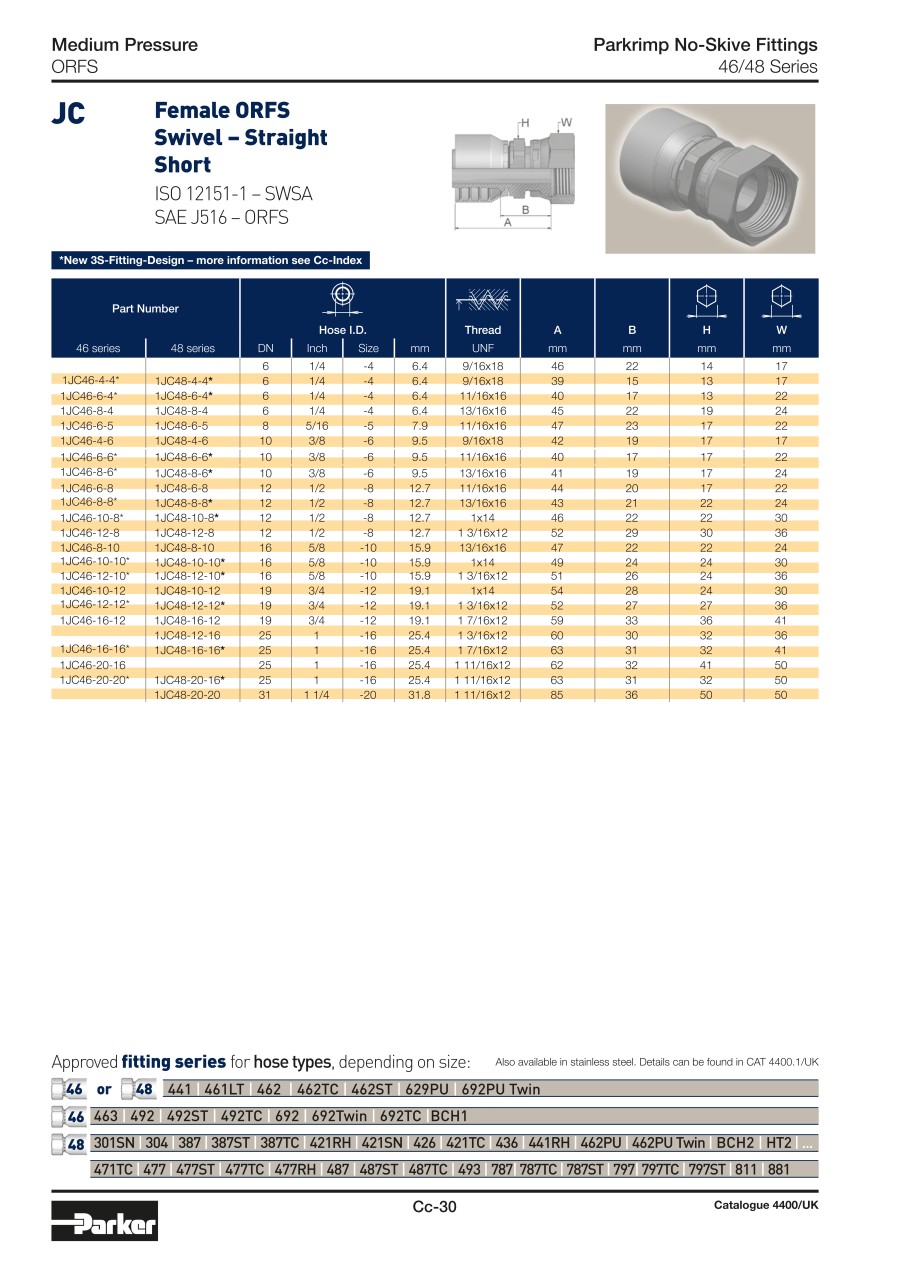

PARKER Parkrimp No-Skive Fitting 1JC46

Catalog

Part number:

Still undefined. 10 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Nominal Dia.

(mm)

Customs tariff weight

(kg)

Thread or tube size

(mm)

Thread diameter UNF

(mm)

Operating pressure Mpa

Hose fitting size

Minimum order quantity

6	46	0.081	-04	17	14	9/16x18	22	63.5	-04	1 pieces
6	45	0.11	-06	22	17	11/16x16	23	63.5	-04	1 pieces
10	43	0.08	-06	22	17	11/16x16	21	63.5	-06	1 pieces
10	45	0.147	-08	24	19	13/16x16	22	63.5	-06	1 pieces
12	46	0.104	-08	24	22	13/16x16	22	63.5	-08	1 pieces
12	48	0.243	-10	30	24	1x14	24	41	-08	1 pieces
16	51	0.239	-10	30	24	1x14	26	41	-10	1 pieces
19	55	0.36	-12	36	30	1-3/16x12	29	41	-12	1 pieces
25	63	0.352	-16	41	36	1-7/16x12	33	41	-16	1 pieces
31	71	0.527	-20	50	41	1-11/16x12	33	28	-20	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

19.65 € ( 23.38 € )	5 working days
23.77 € ( 28.29 € )	5 working days
25.55 € ( 30.40 € )	5 working days
28.03 € ( 33.36 € )	5 working days
32.72 € ( 38.94 € )	5 working days
43.77 € ( 52.09 € )	5 working days
43.83 € ( 52.16 € )	5 working days
66.11 € ( 78.67 € )	5 working days
96.23 € ( 114.51 € )	5 working days
224.48 € ( 267.13 € )	5 working days
